| Place of Origin: | Made In China |
| Brand Name: | Infinity Machine |
| Certification: | CE ISO |
| Model Number: | IN-B6303 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Clear sheet+sponge+wood carton |
| Delivery Time: | 20-30 days after order confirmed |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200SETS PER MONTH |
| Features: | Fully Automated Testing;High-precision Positioning;Conduction Function | Product Name: | Wire Swing Life Tester |
|---|---|---|---|
| Model: | IN-B6303 | Application: | Mainly Used For Small Household Appliances. |
| Test Station: | 1 Slot | Bending Angle: | ±720°The Left And Right Bending Angles Can Be Set Independently |
| Bend Count: | 0—9999999 Times (Settable), Screen Indicate | Test Speed: | 1~60 Times/min |
| Power: | Electronic | Warranty: | 1 Year |
| Highlight: | 720° Wire Swing Life Testing Machine,Bending Wire Swing Life Testing Machine |
||
Bending Angle ±720° Left and Right Bending Wire Swing Life Testing Machine
Model:IN-B6303
Application:
This equipment is mainly used for small household appliances. For example, at the charger connection, perform a lifting and swing test.
Adopt numerical control method to adjust angle, speed and times. Touch screen operation, high precision, low noise and long life.
Features:
1.Fully automated testing
Using Japanese OMRON touch screen + Mitsubishi PLC control, the operator can automatically complete the test after setting the test angle, test speed, and test number on the touch screen.
2.High-precision positioning
Driven by Japanese Panasonic servo motor, it has high speed, high precision and accurate positioning, low noise and can be used for a long time.
3.Conduction function
Using the continuity determination function, if the wire is damaged after N swing tests, the test will automatically stop.
Technical Parameters:
|
Model |
IN-B6303 |
|
Test station |
1 Slot |
|
Bending angle |
±720°The left and right bending angles can be set independently |
|
Bend count |
0-9999999 Times (Can be set), screen indicate |
|
Test speed |
1~60 times/min |
|
Hoisting space |
1390~1395mm |
|
Load weight |
1PC=200g,1PC=500g, Total: 2PCS |
|
Body weight |
Around 56kg |
|
Dimensions |
W800×D650×H1700mm |
|
Power supply |
AC220V 3A |
|
Emergency stop response time |
100ms |

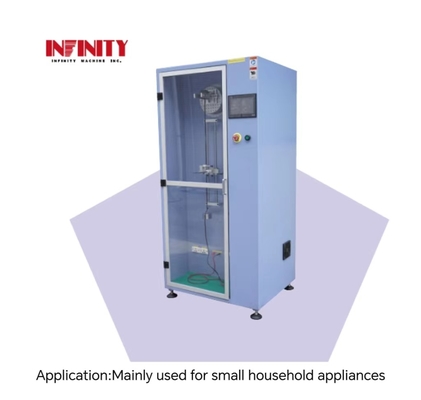

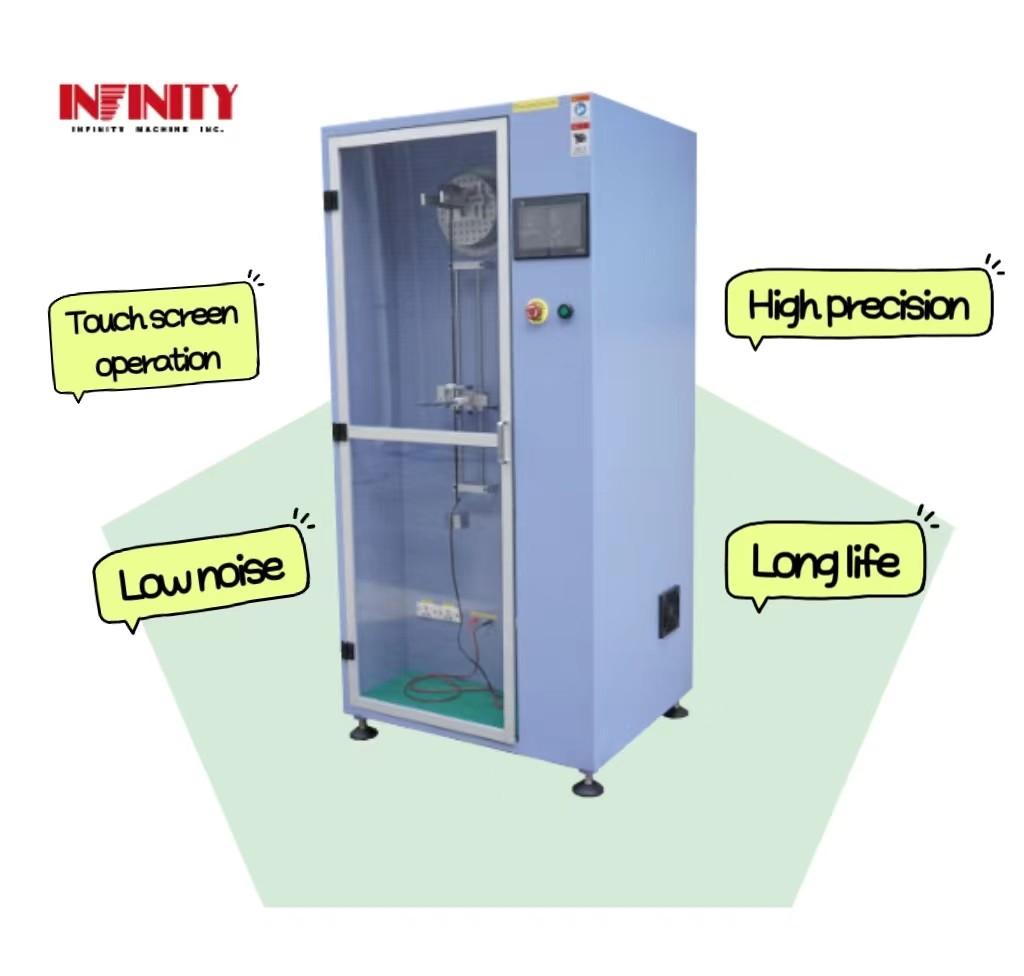

Equipment picture:
Testing software:
After setting the test angle, test speed, and test times, the test can be completed automatically.
Support and Services:
Implementation Assistance,Installation,Training,Calibration,Preventive Maintenance,Technical Support,Upgrade,Repair & Parts.
Packing and Shipping:
Product Packaging:
The Wire Testing Machine will be securely packaged in a wooden crate to prevent any damage during transportation. The crate will be sealed and labeled with the product information for easy identification.
Shipping:
The shipping of the Wire Testing Machine will be handled by a reliable and experienced shipping company. The transportation will be arranged to ensure timely delivery and safe handling of the product. The customer will be provided with the tracking information to monitor the shipment status.
