| Place of Origin: | Made In China |
| Brand Name: | Infinity Machine |
| Certification: | CE ISO |
| Model Number: | IC2361A |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Clear sheet+sponge+wood carton |
| Delivery Time: | 20-30 days after order confirmed |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200SETS PER MONTH |
| Product Name: | Wire Endurance Testing Machine | Model: | IC2361A |
|---|---|---|---|
| Application: | Suitable For Fatigue Testing Of Various Types Of Wires, Cables, Steel Cables, Hemp Ropes And Other Wires To Detect The Reliability Of The Wires. | Standard: | JIS G3540-1995 |
| Test Angle: | 0~180°Adjustable | Specimen Size: | 25.4*25.4mm |
| Sample Holding Force: | 0~400N (Adjustable) | Impact Angle: | 90° |
| Power: | Electronic | Warranty: | 1 Year |
| Highlight: | Adjustable Cable Fatigue Test,180° Cable Fatigue Test,180 Wire Fatigue Test |
||

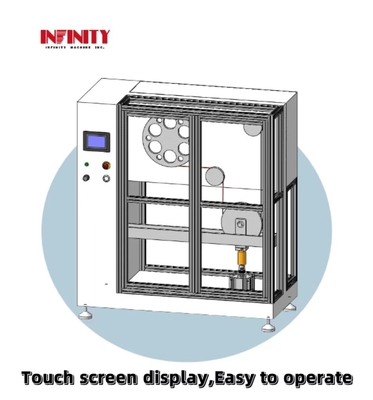

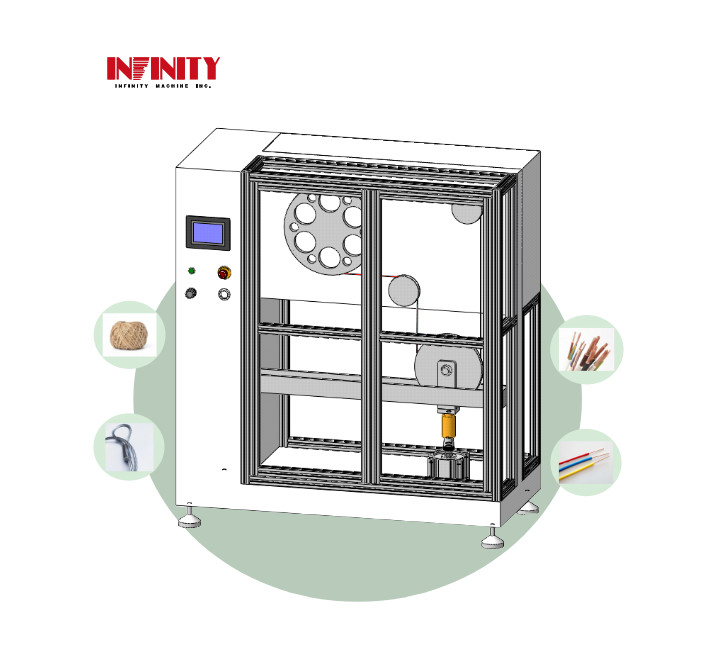

Test Angle 0~180° Adjustable Cable Fatigue Test Wire Endurance Testing Machine
Model:IC2361A
Application:
This equipment is suitable for fatigue testing of various types of wires, cables, steel cables and other wires to detect the reliability of the wires.
Features:
Specification:
| Parameter | Value |
| standard test | JIS G3540-1995 |
|
Test the core number of cable samples |
7*7 &1*19 |
| Sample diameter | 1~3mm |
| Tension load | 300-950kg Adjustable |
| Operating speed | 120rpm/min |
| Sensor range | 1000Kg(10KN) |
| Force accuracy | ±1% |
| Use air pressure | ≥0.5Mpa |
| Test angle | 0~180°Adjustable |
| Testing frequency | 1~999999 settable |
| Equipment size:(L*W*H) | 1500*700*1660mm |
| Device power supply | AC220V 50/60Hz |
| equipment power | 500Ｗ |
| equipment weight | 280kg |
Equipment details:
Dimensions:(mm)
Support and Services:
Implementation Assistance,Installation,Training,Calibration,Preventive Maintenance,Technical Support,Upgrade,Repair & Parts.
Packing and Shipping:
Product Packaging:
The Wire Testing Machine will be securely packaged in a wooden crate to prevent any damage during transportation. The crate will be sealed and labeled with the product information for easy identification.
Shipping:
The shipping of the Wire Testing Machine will be handled by a reliable and experienced shipping company. The transportation will be arranged to ensure timely delivery and safe handling of the product. The customer will be provided with the tracking information to monitor the shipment status.
