| Place of Origin: | Made In China |
| Brand Name: | Infinity Machine |
| Certification: | CE ISO |
| Model Number: | IZ1001 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Clear sheet+sponge+wood carton |
| Delivery Time: | 20-30 days after order confirmed |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200SETS PER MONTH |

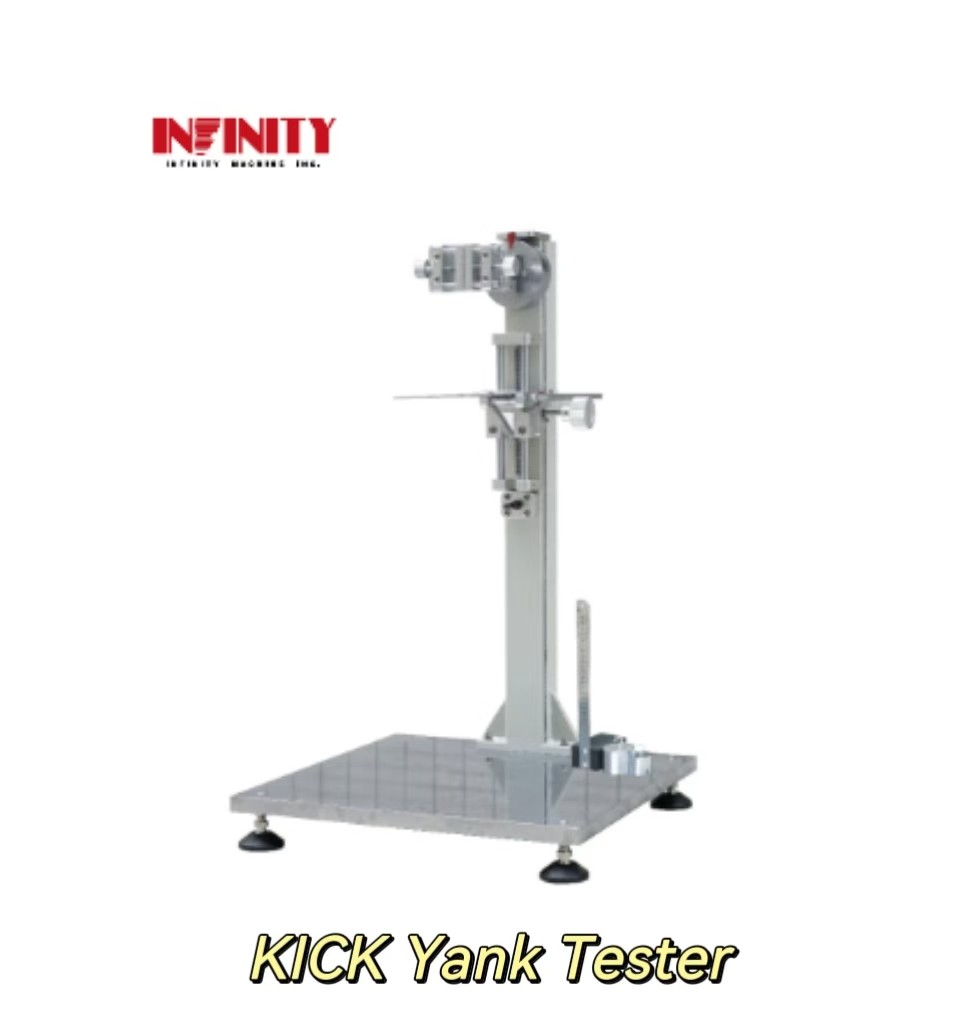

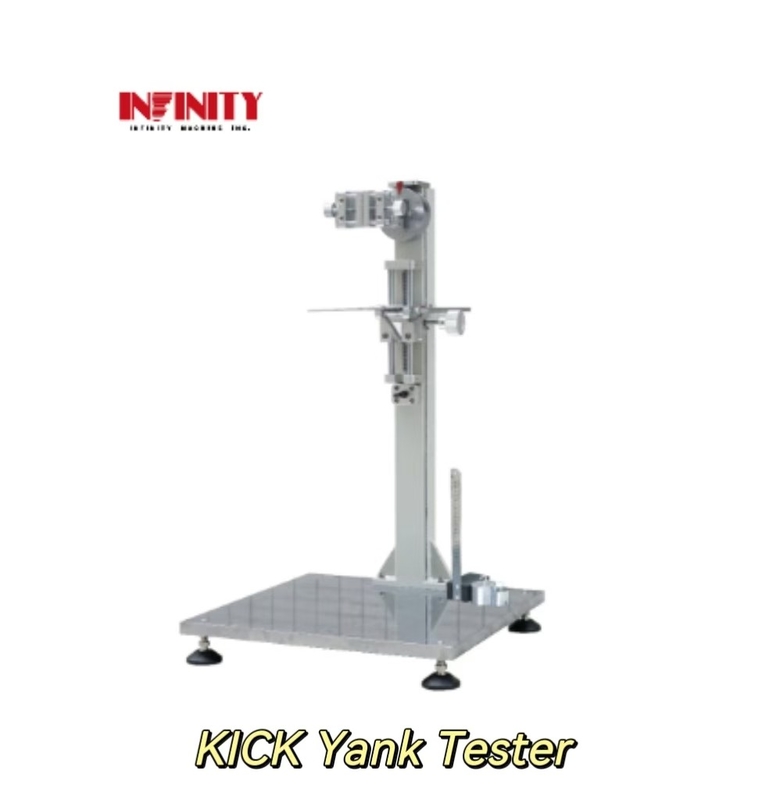

| Product Name: | KICK Yank Tester | Model: | IZ1001 |
|---|---|---|---|
| Rotation Angle: | 0~360°（adjustable） | Angle Up And Down: | 0°、45°、90° |
| Test Height: | 600~750mm | Standard Weights: | 350g、1000g、1100g、4500g |
| Power: | Electronic | Warranty: | 1 Year |
| Highlight: | 600mm Wire Pull Testing Machine,High Reliability Wire Pull Testing Machine,750mm Wire Pull Testing Machine |
||

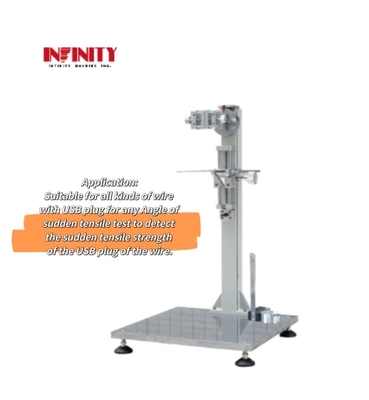

High Reliability Test Height 600~750mm Wire Pull Testing Machine
Model:IZ1001
Application:
It is suitable for all kinds of wire with USB plug for any Angle of sudden tensile test to detect the sudden tensile strength of the USB plug of the wire.
Technical specification:
| Rotation angle: | 0~360°(adjustable) |
| Angle up and down: | 0°,45°,90° |
| Test height: | 600~750mm |
| Standard weights: | 350g,1000g,1100g,4500g |
| Volume (WxDxH): | 650x650x1380mm |
| Weight: | About 130Kg |
Adjustment/operation instructions:
1, Test fixture rotation Angle adjustment. As illustrated below
2. Test the upper and lower Angle adjustment of fixture. As illustrated below
3.Support plate height adjustment. As illustrated below
Test procedure:
1.Adjust the required test Angle according to point 1 of the above adjustment method. (The upper and lower Angle of the fixture can be adjusted if necessary)
2. Place the sample in the fixture and turn the screws to grip the sample.
3. The standard weight is tied to the sample connection line, and the height of the weight is measured with a reference scale.
4. Lift the support plate manually so that the rake handle is fastened to the support plate. Adjust the test height required by the support plate according to point 3 of the above adjustment method and remove the reference scale.
5. Place the tied standard weight on the support plate, press the discharger handle so that the weight falls and exerts a sudden pull force on the sample plug, and test whether the plug is damaged to complete a test.
Support and Services:
Implementation Assistance,Installation,Training,Calibration,Preventive Maintenance,Technical Support,Upgrade,Repair & Parts.
Packing and Shipping:
Product Packaging:
The Wire Pull Tester will be securely packaged in a wooden crate to prevent any damage during transportation. The crate will be sealed and labeled with the product information for easy identification.
Shipping:
The shipping of the Wire Pull Tester will be handled by a reliable and experienced shipping company. The transportation will be arranged to ensure timely delivery and safe handling of the product. The customer will be provided with the tracking information to monitor the shipment status.
