| Place of Origin: | Made In China |
| Brand Name: | Infinity Machine |
| Certification: | CE ISO |
| Model Number: | IC1362 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Clear sheet+sponge+wood carton |
| Delivery Time: | 20-30 days after order confirmed |
| Payment Terms: | L/C, T/T, D/A, D/P, Western Union, MoneyGram |
| Supply Ability: | 200SETS PER MONTH |
| Product Name: | Wire 45°Cone Pull Test Machine | Model: | IC1362 |
|---|---|---|---|
| Test Station: | 2Slots | Test The Radius Of Rotation: | 280mm |
| Test Speed: | 60-360° / S Adjustable (standard 252° / S) | Test Angle: | 0~±720° |
| Line Material Resistance Detection Range: | 0.01~2Ώ | Test Times: | 1 ~ 9,99,999 Times |
| Power: | Electronic | Warranty: | 1 Year |
| Highlight: | 45° Cone Pull Testing Machine,Small Electronic Products Pull Testing Machine,Small Electronic Products Rotating Life Test |
||

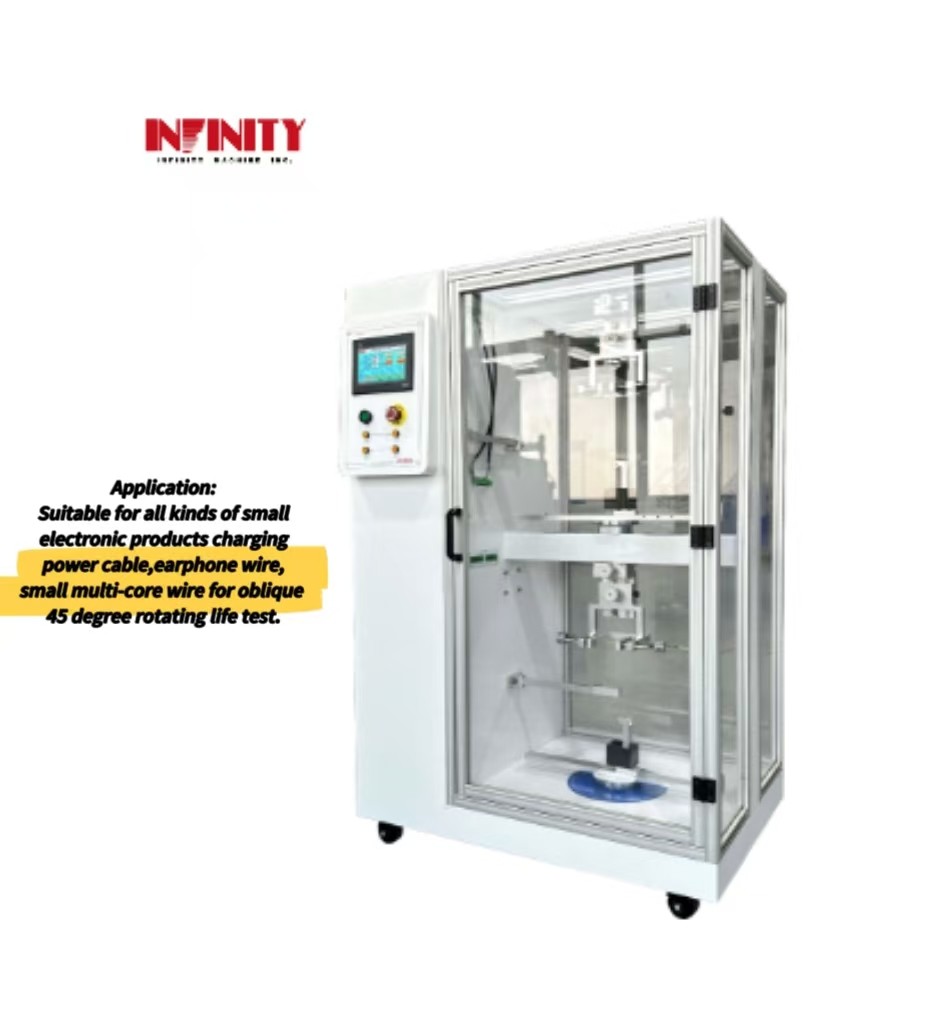

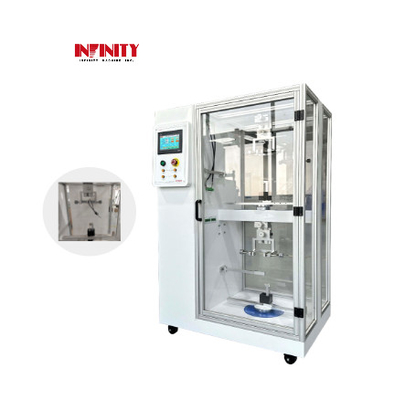

Small Electronic Products Rotating Life Test Wire 45°Cone Pull Testing Machine
Model: IC1362
Application:
Suitable for all kinds of small electronic products charging power cable, earphone wire, small multi-core wire for oblique 45 degree rotating life test.
Features:
Specifications:
| Projects | Specifications |
| Test station | 2Slots |
| Test the radius of rotation | 280mm |
| Test speed | 60-360° / s Adjustable (standard 252° / s) |
| Test Angle | 0~±720° |
| Test load | 125g and 250g |
| Line material resistance detection range | 0.01~2Ώ |
| Test times | 1 ~ 9,99,999 times |
| Machine size | W1030×D 770×H1620mm |
| Machine weight |
155kg |
| Source |
AC 220V 3A |
Test method:
1.Attach one end of the power cable or headphone cable on the fixture, as shown in the following figure, fold back into the 80~100mm of the clamp end, and connect with the reference line (the reference line passes through two movable pulleys as shown in the figure below, and the other end is connected with the weight).
2. Set the speed to 252 degrees / second, the rotation Angle is 720 degrees, rotate 360 degrees and then rotate back to 360 degrees back to the origin until the completion of the times, check whether the wire is good.
3. If it is necessary to monitor whether the wire test is defective or the wire resistance changes, both ends of the wire will be connected to the machine conduction or resistance detection port respectively. Once the wire break is defective or the resistance change exceeds the limit, the machine will automatically stop the test and alarm.
Software interface:
Machine size:
Related product recommendation:
1.KICK Yank Tester :Suitable for all kinds of small electronic products charging power cable, earphone wire, small multi-core wire for oblique 45 degree rotating life test.
2.Wire Swing Life Testing Machine IN-B6303:mainly used for small household appliances. Perform a lifting and swinging test at the connection point of the charger.
3.Five Stations Wire Swing Testing Machine:Suitable for multi-core cable, communication cable, headphone cable, flat cable, signal cable, charging cable and other wires for swinging and bending resistance test.
Support and Services:
Implementation Assistance,Installation,Training,Calibration,Preventive Maintenance,Technical Support,Upgrade,Repair & Parts.
Product Packaging:
The Wire Pull Tester will be securely packaged in a wooden crate to prevent any damage during transportation. The crate will be sealed and labeled with the product information for easy identification.
