| Place of Origin: | Made In China |
| Brand Name: | Infinity Machine |
| Certification: | CE ISO |
| Model Number: | IC2361A |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Clear sheet+sponge+wood carton |
| Delivery Time: | 20-30 days after order confirmed |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200SETS PER MONTH |
| Product Name: | Wire Endurance Testing Machine | Model: | IC2361A |
|---|---|---|---|
| Application: | Suitable For Fatigue Testing Of Various Types Of Wires, Cables, Steel Cables, Hemp Ropes And Other Wires To Detect The Reliability Of The Wires. | Standard: | JIS G3540-1995 |
| Specimen Size: | 25.4*25.4mm | Sample Holding Force: | 0~400N (Adjustable) |
| Impact Angle: | 90° | Power: | Electronic |
| Warranty: | 1 Year | ||
| Highlight: | Force Value Sensor Wire Endurance Tester,Steel Cable Wire Endurance Tester,High Precision Wire Endurance Tester |
||

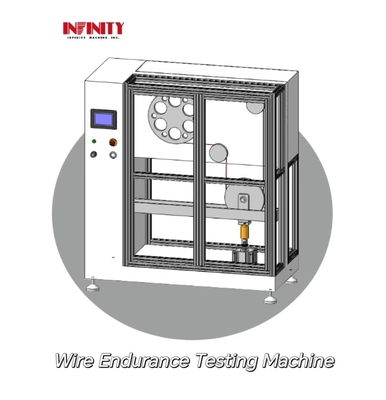

High Precision Steel Cable Fatigue Test Wire Endurance Tester with Force Value Sensor
Model:IC2361A
Application:
This equipment is suitable for fatigue testing of various types of wires, cables, steel cables and other wires to detect the reliability of the wires.
Features:
Specification:
| Parameter | Value |
| standard test | JIS G3540-1995 |
|
Test the core number of cable samples |
7*7 &1*19 |
| Sample diameter | 1~3mm |
| Tension load | 300-950kg Adjustable |
| Operating speed | 120rpm/min |
| Sensor range | 1000Kg(10KN) |
| Force accuracy | ±1% |
| Use air pressure | ≥0.5Mpa |
| Test angle | 0~180°Adjustable |
| Testing frequency | 1~999999 settable |
| Equipment size:(L*W*H) | 1500*700*1660mm |
| Device power supply | AC220V 50/60Hz |
| equipment power | 500Ｗ |
| equipment weight | 280kg |

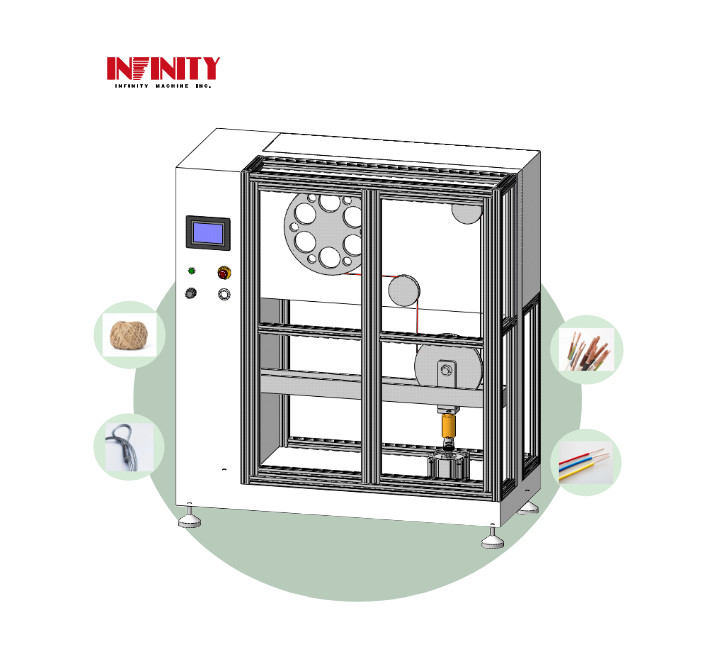

Equipment details:
Dimensions:(mm)
Support and Services:
Implementation Assistance,Installation,Training,Calibration,Preventive Maintencance,Technical Support,Upgrade,Repair & Parts.
Product Packaging:
The Wire Testing Machine will be securely packaged in a wooden crate to prevent any damage during transportation. The crate will be sealed and labeled with the product information for easy identification.
