| Product Name: | Five Stations Wire Swing Testing Machine | Model: | IC2095 |
|---|---|---|---|
| Standard: | Bend Test GBT 5023.2 | Application: | The Equipment Is Suitable For Multi-core Cable, Communication Cable, Headphone Cable, Flat Cable, Signal Cable, Charging Cable And Other Wires For Swinging And Bending Resistance Test. |
| Test Samples At The Same Time: | 5pcs | Control System: | Touch Screen +PLC |
| Power: | Electronic | Warranty: | 1 Year |
| Highlight: | Durable Wire Testing Machine,Signal Line Wire Testing Machine,Five Stations Wire Testing Machine |
||

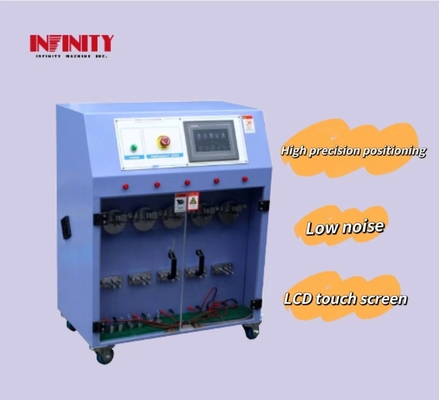

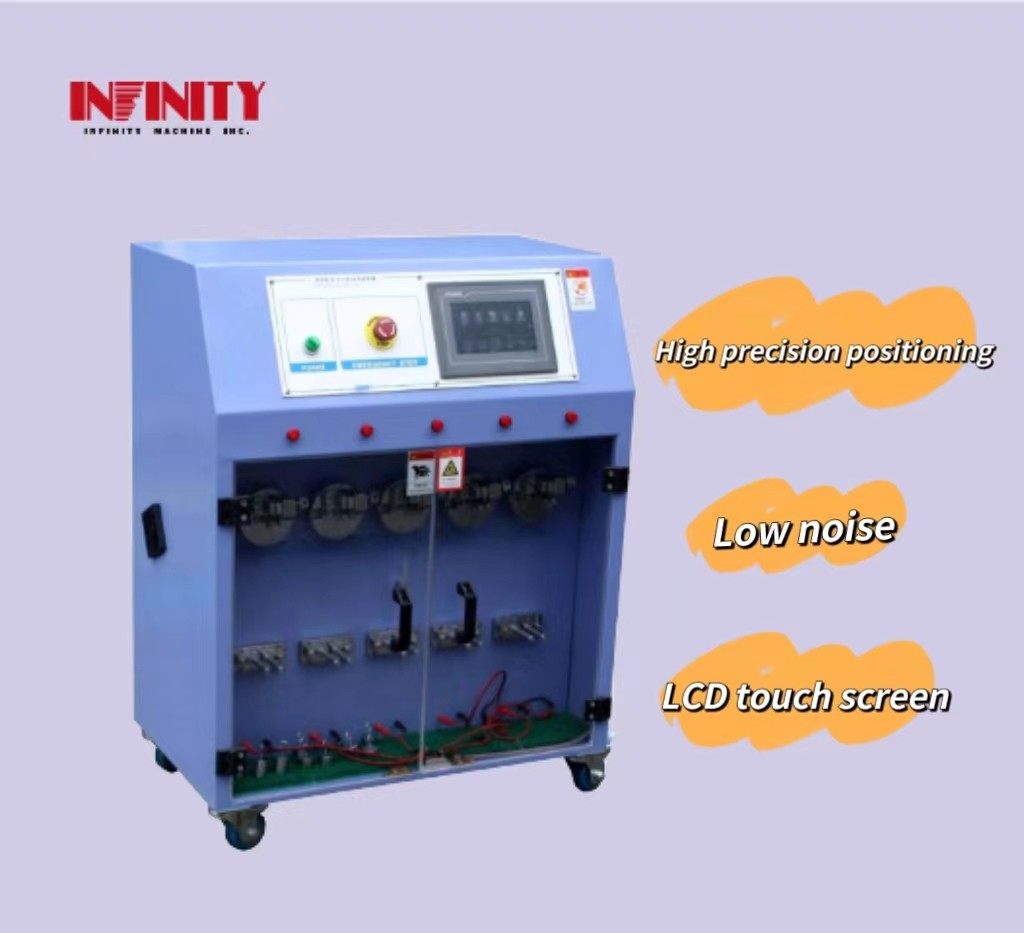

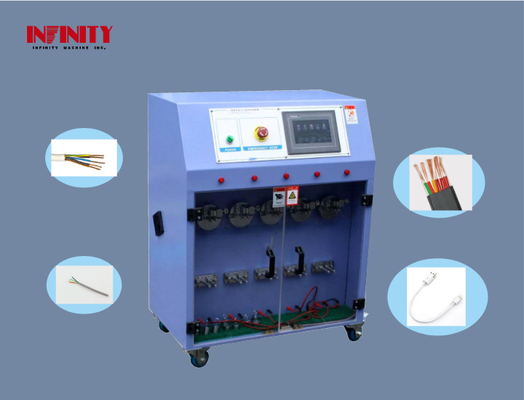

Durable Use Five Stations Wire Testing Machine Used for Signal Line Swing Folding Test
Product model number: IC2095
Application:
The equipment is suitable for multi-core cable, communication cable, headphone cable, flat cable, signal cable, charging cable and other wires for swinging and bending resistance test. The test method is: one end of the wire is short held, fixed on the rotating plate, the wire is vertically downward, the other end binds the weight, the rotating plate rotates left and right, causing repeated bending of the wire, after many tests, to evaluate whether the wire conduction is good.
Features:
Standard:
Bend test GBT 5023.2
Specification parameters:
| Product model |
IC2095 |
|
Test samples at the same time |
5pcs |
| Control system | Touch screen +PLC |
| Drive | Japan Panasonic servo motor |
| Test speed | 6~420 ± 25 rad/s (settable) |
| Motor acceleration and deceleration time | <45ms |
| Test angle range | 0～±180° |
| Minimum display angle |
1° |
| Test number range | 1 ~ 9,99,999 times |
| Batch stay time |
1~10 Minutes |
| Reaction member |
R1.5,2,2.5,3,3.5,4,4.5,5,5.5,6mm (to be specified before ordering) |
| Spinning disc diameter | 160mm |
|
Weight |
50g,100g,150g,250g,300g |
| Host size |
W780xD460xH940mm |
| Host weight | About 150kg |
| Source | AC220V 50HZ 10A |
Support and Services:
Implementation Assistance,Installation,Training,Calibration,Preventive Maintencance,Technical Support,Upgrade,Repair & Parts.
Product Packaging:
The Wire Testing Machine will be securely packaged in a wooden crate to prevent any damage during transportation. The crate will be sealed and labeled with the product information for easy identification.
