| Place of Origin: | Made In China |
| Brand Name: | Infinity Machine |
| Certification: | CE ISO |
| Model Number: | IC2361A |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Clear sheet+sponge+wood carton |
| Delivery Time: | 20-30 days after order confirmed |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200SET PER MONTH |
| Product Name: | Wire Endurance Testing Machine | Model: | IC2361A |
|---|---|---|---|
| Application: | Suitable For Fatigue Testing Of Various Types Of Wires, Cables, Steel Cables, Hemp Ropes And Other Wires To Detect The Reliability Of The Wires. | Standard: | JIS G3540-1995 |
| Power: | Electronic | Warranty: | 1 Year |
| Highlight: | Wires Fatigue Test Machine,Touch Screen Wire Endurance Testing Machine,LCD Wire Endurance Testing Machine |
||

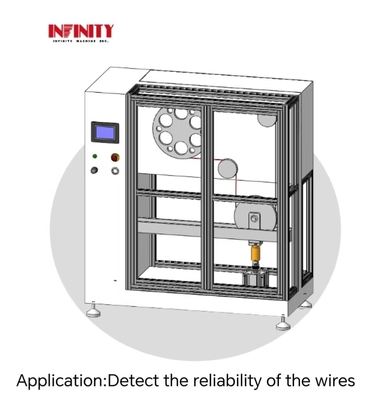

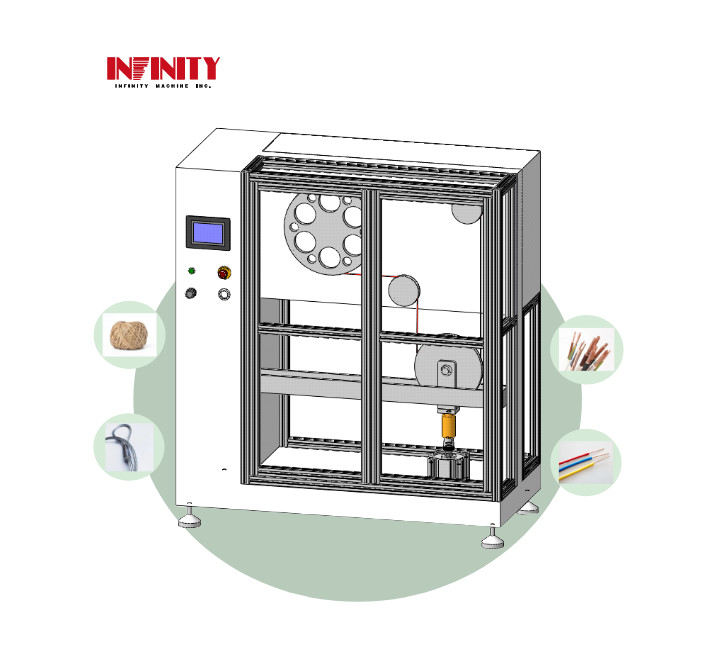

Wire Endurance Testing Machine
Model:IC2361A
Application:
This equipment is suitable for fatigue testing of various types of wires, cables, steel cables and other wires to detect the reliability of the wires.
Features:
1.The cylinder tension is used instead of the traditional weight tension method, making the operation more convenient.
2.Equipped with a force sensor to detect the actual value of tension in real time, it can more accurately control the changes in tension during the test process.
3.Using LCD touch screen + PLC control module, program editing is simple.
4.The optional (continuity detection function) can detect cable damage in real time during the test, and will shut down and alarm once breakage is detected.
5.It adopts aluminum profile + acrylic frame, equipped with safety door and has door opening and shutdown protection functions to protect the personal safety of users to the maximum extent.
Specification:
| Parameter | Value |
| standard test | JIS G3540-1995 |
|
Test the core number of cable samples |
7*7 &1*19 |
| Sample diameter | 1~3mm |
| Tension load | 300-950Kg Adjustable |
| Operating speed | 120rpm/min |
| Sensor range | 1000Kg(10KN) |
| Force accuracy | ±1% |
| Use air pressure | ≥0.5Mpa |
| Test angle | 0~180°Adjustable |
| Testing frequency | 1~999999 Can be set |
| Equipment size:(L*W*H) | 1500*700*1660mm |
| Device power supply | AC220V 50/60Hz |
| equipment power | 500Ｗ |
| equipment weight | 280KG |
Our services:
Implementation Assistance,Installation,Training,Calibration,Preventive Maintencance,Technical Support,Upgrade,Repair & Parts.
