| Place of Origin: | MADE IN CHINA |
| Brand Name: | INFINITY |
| Certification: | CE ISO |
| Model Number: | IC1362 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Clear sheet+sponge+wood carton |
| Delivery Time: | 20-30 days after order confirmed |
| Payment Terms: | TT PAYPAL Moneygram and so on |
| Supply Ability: | 200 sets / month |
| Test Station: | 2Slots | Model: | IC1362 |
|---|---|---|---|
| Product Name: | Wire 45°Cone Pull Test Machine | Test Speed: | 60-360° / S Adjustable (standard 252° / S) |

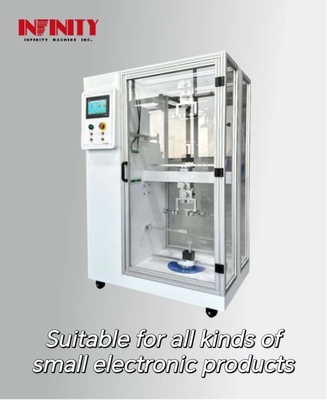

| Application: | Suitable For All Kinds Of Small Electronic Products Charging Power Cable, Earphone Wire, Small Multi-core Wire For Oblique 45 Degree Rotating Life Test. | Source: | AC 220V 3A |
| Test Times: | 1 ~ 9,99,999 Times | Test Method: | 1.Attach One End Of The Power Cable Or Headphone Cable On The Fixture, As Shown In The Following Figure, Fold Back Into The 80~100mm Of The Clamp End, And Connect With The Reference Line (the Reference Line Passes Through Two Movable Pulleys As Shown In Th |
| Highlight: | Earphone Wire Pull Tester,155kg Wire Pull Tester,2Slots Wire Pull Tester |
||

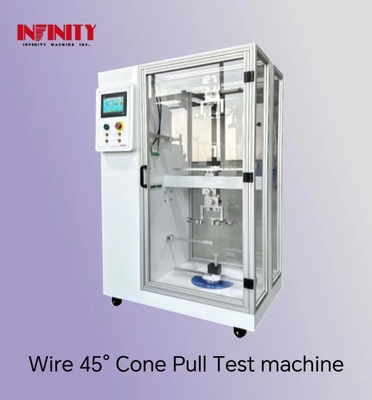

2Slots Test Station Wire Pull Tester for Earphone Wire 155kg Machine Weight
The Wire 45°Cone Pull Test Machine has a dual-station design that allows for independent control, greatly saving test space. The transparent protective cover design not only makes it convenient to observe the test status, but also improves the safety of the equipment. The touch screen is manufactured by Taiwan WEINVIEW and is partnered with a Japan Mitsubishi PLC for program control. Test conditions can be input into the touch screen, and the test conditions and test times can be displayed in real time.

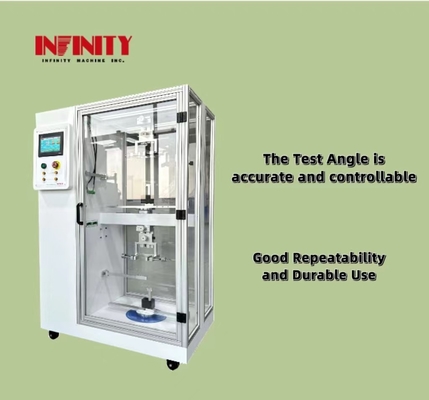

The Wire 45°Cone Pull Test Machine is driven by a Japan Panasonic AC servo motor, Japan SHIMPO precision planetary reducer deceleration, and Japan Mitsubishi synchronous belt transmission. This ensures that the test angle is accurate and controllable, with good repeatability and a durable design.
One of the key features of the Wire 45°Cone Pull Test Machine is its ability to detect wire conduction. If the wire is disconnected during the test, an alarm will immediately sound. The product also has the ability to detect resistance change in the wire and can set upper and lower limits. If the resistance exceeds the limit during the test, an alarm will immediately sound.
If you are looking for a top-quality cable pull testing product, the Wire 45°Cone Pull Test Machine is a great option. Its dual-station design, independent control, and transparent protective cover make it a convenient and safe choice. Its accurate and controllable test angle, good repeatability, and durable design ensure this product will be a reliable choice for years to come.

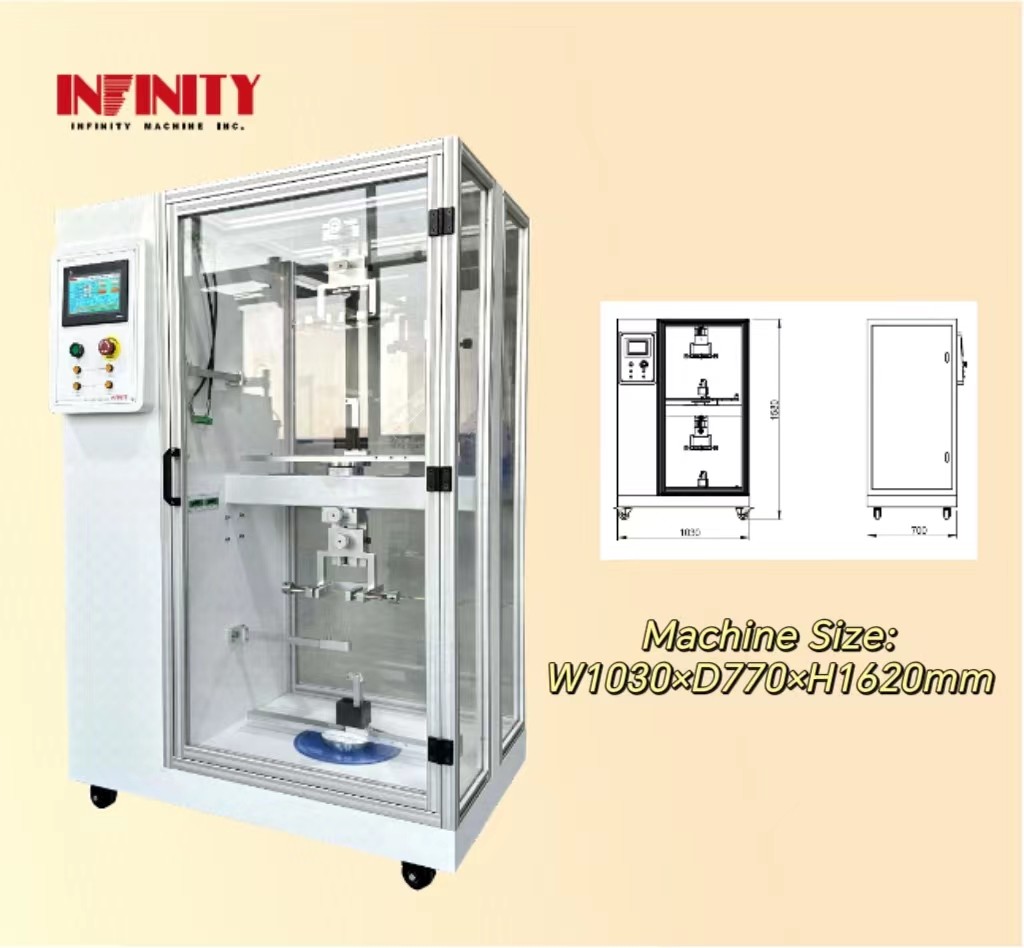

| Machine size | W1030×D 770×H1620mm |
| Test load | 125g and 250g |
| Test station | 2Slots |
| Test radius of rotation | 280mm |
| Features | Dual Station Design, Independent Control, Greatly Save The Test Space, Transparent Protective Cover Design, Not Only Convenient To Observe The Test Status And Improve The Safety Of The Equipment. Taiwan WEINVIEW Touch Screen + Japan Mitsubishi PLC Is Used For Program Control. The Test Conditions Can Be Input In The Touch Screen, And The Test Conditions And Test Times Can Be Displayed In Real Time. It Is Driven By Japan Panasonic AC Servo Motor, Japan SHIMPO Precision Planetary Reducer Deceleration, Japan Mitsubishi Synchronous Belt Transmission, The Test Angle Is Accurate And Controllable, Good Repeatability And Durable Use. With The Function Of Detecting Wire Conduction, The Wire Is Disconnected During The Test, And Stop The Alarm Immediately. It Has The Function Of Detecting The Resistance Change Of Wire, And Can Set The Upper And Lower Limits. If The Resistance Exceeds The Limit During The Test, Stop The Alarm Immediately. |

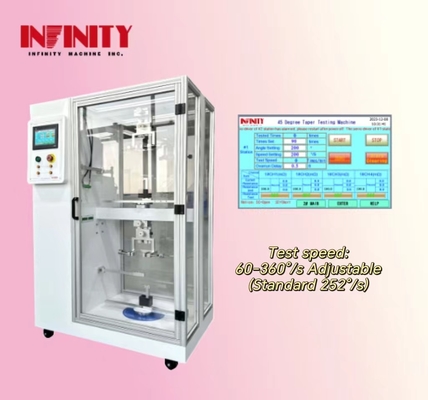

| Test speed | 60-360° / S Adjustable (standard 252° / S) |
| Line material resistance detection range | 0．01~2Ώ |
| Model | IC1362 |
| Machine weight | 155kg |
| Test times | 1 ~ 9,99,999 Times |
This table shows the technical parameters of the Wire Pull Tester product, also known as the 45° Angle Cone Pull or Wire 45°Cone Pull Test Machine.
Software interface:
The INFINITY IC1362 Wire Pull Testing Machine is a high-quality product made in China that is designed to test the strength of wires. This product has CE and ISO certification, and the minimum order quantity is one unit. The price is negotiable, and packaging details include a clear sheet, sponge, and wood carton. The delivery time is estimated to be 20-30 days after the order is confirmed, and payment terms can be made through TT PAYPAL Moneygram and other methods. With a supply ability of 200 sets per month, this machine is an excellent choice for wire strength testing.
The IC1362 model has a test speed of 60-360°/S adjustable (standard 252°/S) and a source of AC 220V 3A. The machine is designed to test the radius of rotation, which is 280mm, and the test angle can range from 0~±720°. The dual-station design and independent control feature greatly save test space, while the transparent protective cover design is not only convenient to observe the test status but also improves the safety of the equipment.
The Taiwan WEINVIEW Touch Screen + Japan Mitsubishi PLC is used for program control, and the test conditions can be input in the touch screen. The test conditions and test times can be displayed in real-time. The machine is driven by a Japan Panasonic AC servo motor, Japan SHIMPO precision planetary reducer deceleration, and Japan Mitsubishi synchronous belt transmission. The test angle is accurate and controllable, with good repeatability and durable use.
The IC1362 model also has the function of detecting wire conduction. If the wire is disconnected during the test, the machine will stop the alarm immediately. Additionally, it has the function of detecting the resistance change of the wire and can set the upper and lower limits. If the resistance exceeds the limit during testing, the machine will stop the alarm immediately.
Overall, the INFINITY IC1362 Wire Pull Testing Machine is an excellent choice for wire strength testing. It is designed to perform 45° angle cone pull tests and is durable and reliable. If you need a machine that can accurately test wire strength, this is the product for you.
The Wire Pull Tester is a high-quality product designed to test the strength of wire bonds in electronic components. Our technical support and services team is here to provide you with the assistance you need to get the most out of your Wire Pull Tester. Our services include:
Our team of experienced technicians is dedicated to ensuring that your Wire Pull Tester performs at its best, so you can get accurate test results every time. Contact us today to learn more about our technical support and services.
Product Packaging:
Product Shipping:
Frequently Asked Questions:
Q: What is the brand name of the wire pull tester?
A: The brand name of the wire pull tester is INFINITY.
Q: What is the model number of the wire pull tester?
A: The model number of the wire pull tester is IC1362.
Q: Where is the wire pull tester made?
A: The wire pull tester is made in China.
Q: What certifications does the wire pull tester have?
A: The wire pull tester has CE and ISO certifications.
Q: What is the packaging detail for the wire pull tester?
A: The wire pull tester is packaged with a clear sheet, sponge, and wood carton.
Q: What is the minimum order quantity for the wire pull tester?
A: The minimum order quantity for the wire pull tester is 1.
Q: What is the price for the wire pull tester?
A: The price for the wire pull tester can be negotiated.
Q: What is the delivery time for the wire pull tester?
A: The delivery time for the wire pull tester is 20-30 days after the order is confirmed.
Q: What payment terms are accepted for the wire pull tester?
A: The wire pull tester accepts payment through TT, PayPal, Moneygram, and other methods.
Q: What is the supply ability of the wire pull tester?
A: The supply ability of the wire pull tester is 200 sets per month.
