Evaluating 280mm Rotation Radius Wire Pull Tester For 45° Angle Cone Pull IC1362

Product Description:

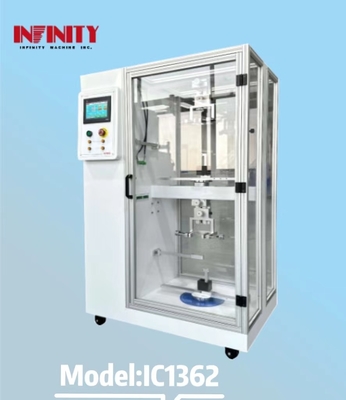

The Wire Pull Tester has two test slots and model IC1362. It has a machine size of W1030×D 770×H1620mm. The machine is driven by Japan Panasonic AC Servo Motor, Japan SHIMPO Precision Planetary Reducer Deceleration, and Japan Mitsubishi Synchronous Belt Transmission, making the test angle accurate and controllable. This ensures good repeatability and durable use.

The Wire Pull Tester can perform wire 45°Cone Pull Test Machine. The test times range from 1 to 9,99,999 times. The machine is also equipped with the function of detecting wire conduction. If the wire is disconnected during the test, the machine will stop and alarm immediately. It also has the function of detecting the resistance change of wire and can set the upper and lower limits. If the resistance exceeds the limit during the test, the machine will stop and alarm immediately.

Taiwan WEINVIEW Touch Screen and Japan Mitsubishi PLC are used for program control in the Wire Pull Tester. The test conditions can be input in the touch screen, and the test conditions and test times can be displayed in real time. The Wire Pull Tester is an efficient and reliable machine that ensures accurate and repeatable results.

Features:

• Product Name: Wire Pull Tester
• Features:

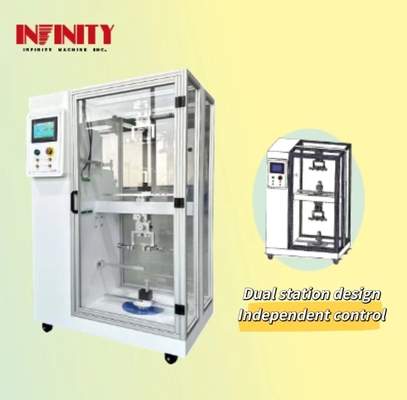

  • Dual Station Design
  • Independent Control
  • Greatly Save The Test Space
  • Transparent Protective Cover Design, Not Only Convenient To Observe The Test Status And Improve The Safety Of The Equipment
  • Taiwan WEINVIEW Touch Screen + Japan Mitsubishi PLC Is Used For Program Control
  • The Test Conditions Can Be Input In The Touch Screen, And The Test Conditions And Test Times Can Be Displayed In Real Time

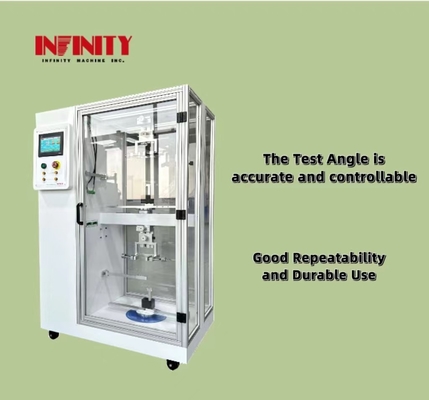

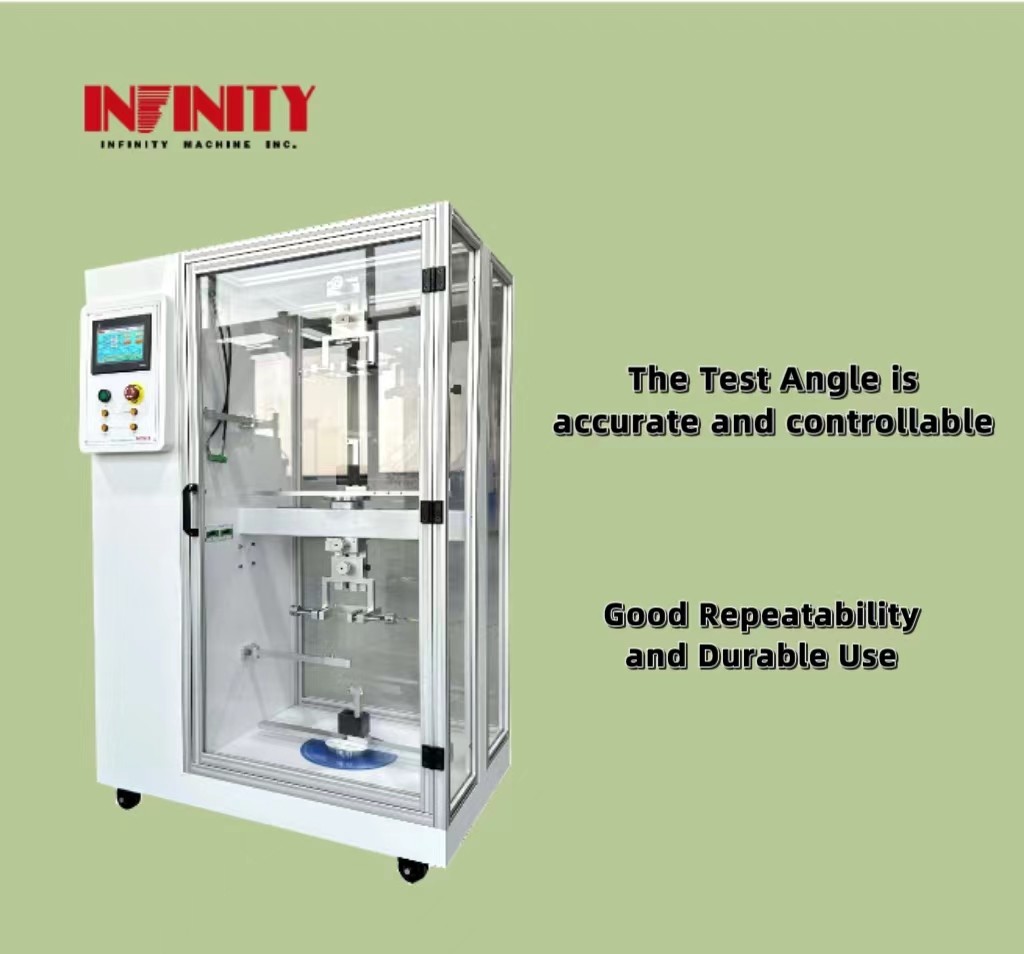

  • It Is Driven By Japan Panasonic AC Servo Motor, Japan SHIMPO Precision Planetary Reducer Deceleration, Japan Mitsubishi Synchronous Belt Transmission, The Test Angle Is Accurate And Controllable, Good Repeatability And Durable Use

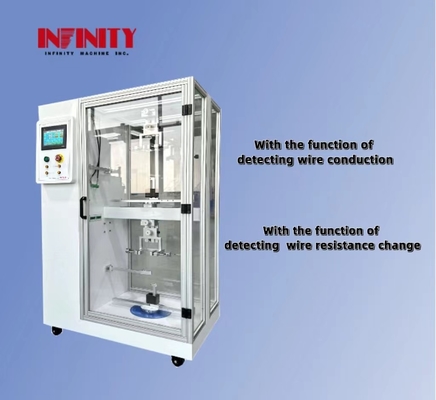

  • With The Function Of Detecting Wire Conduction, The Wire Is Disconnected During The Test, And Stop The Alarm Immediately
  • It Has The Function Of Detecting The Resistance Change Of Wire, And Can Set The Upper And Lower Limits. If The Resistance Exceeds The Limit During The Test, Stop The Alarm Immediately
• Test Angle: 0~±720°
• Line material resistance detection range: 0．01~2Ώ
• Source: AC 220V 3A
• Test station: 2Slots

Wire 45°Cone Pull Test Machine, 45° Angle Cone Pull, Wire 45°Cone Pull Test Machine

Technical Parameters:

This table shows the technical parameters of the Wire 45°Cone Pull Test Machine, which is used for wire strength testing. The machine has a 45° angle cone pull, and has a dual station design, independent control, and a transparent protective cover design. It uses Taiwan WEINVIEW Touch Screen + Japan Mitsubishi PLC for program control, and has a test load of 125g and 250g, a test angle of 0~±720°, and a line material resistance detection range of 0．01~2Ώ. The machine is driven by a Japan Panasonic AC Servo Motor and has a Japan SHIMPO Precision Planetary Reducer Deceleration and Japan Mitsubishi Synchronous Belt Transmission. It also has the function of detecting wire conduction and resistance change, and can set upper and lower limits for resistance. The machine is equipped with a wire break detection function and will stop the test and alarm if the resistance change exceeds the limit. The test method involves attaching one end of the power cable or headphone cable on the fixture, folding back into the 80~100mm of the clamp end, and connecting with the reference line. The speed is set to 252 Degrees / Second, the rotation angle is 720 degrees, and the wire is rotated 360 degrees and then rotated back to 360 degrees back to the origin until the completion of the times.

Applications:

The INFINITY IC1362 Wire 45°Cone Pull Test Machine, made in China, is a CE and ISO certified product that is perfect for testing the strength and durability of cables and wires. With a minimum order quantity of 1 and a negotiable price, this product is an excellent investment for any business that requires cable pull testing.

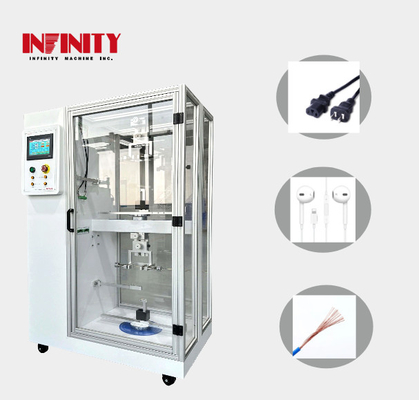

The Wire 45°Cone Pull Test Machine has a two-slot test station and a rotation radius of 280mm, making it perfect for testing a variety of cables and wires. The test method is simple and efficient - the power cable or headphone cable is attached to the fixture, folded back into the clamp end, and connected to the weight through a reference line. The machine then rotates the cable at a speed of 252 degrees per second and a rotation angle of 720 degrees, checking whether the wire is good. The machine also comes with a wire conduction and resistance detection port, which automatically stops the test and alarms in case of any defects or changes in resistance.

The Wire 45°Cone Pull Test Machine also comes with a variety of features that make it a great investment. The dual station design and independent control greatly save test space, while the transparent protective cover design makes it convenient to observe the test status and improve the safety of the equipment. The machine is driven by a Japan Panasonic AC servo motor, Japan SHIMPO precision planetary reducer deceleration, and Japan Mitsubishi synchronous belt transmission, ensuring accurate and controllable test angles, good repeatability, and durable use. The Taiwan WEINVIEW touch screen and Japan Mitsubishi PLC are used for program control, allowing users to input test conditions and view test conditions and times in real-time.

Overall, the Wire 45°Cone Pull Test Machine by INFINITY is a fantastic investment for businesses that require cable pull testing. With a supply ability of 200 sets per month, it is a reliable and efficient product that will save time and money in the long run.

Product Attributes:

• Brand Name: INFINITY
• Model Number: IC1362
• Place of Origin: MADE IN CHINA
• Certification: CE ISO
• Minimum Order Quantity: 1
• Price: Negotiate
• Packaging Details: Clear sheet+sponge+wood carton
• Delivery Time: 20-30 days after order confirmed
• Payment Terms: TT PAYPAL Moneygram and so on
• Supply Ability: 200 sets / month
• Test station: 2Slots
• Product name: Wire 45°Cone Pull Test Machine
• Test the radius of rotation: 280mm
• Test method: 45° Angle Cone Pull, Cable Pull Testing
• Features: Dual Station Design, Independent Control, Transparent Protective Cover Design, Taiwan WEINVIEW Touch Screen, Japan Mitsubishi PLC, Wire Conduction Detection, Resistance Change Detection, Accurate Test Angle, Good Repeatability, Durable Use

Software interface:

Customization:

The machine's dual-station design and independent control make it highly efficient and convenient to use. It comes with a transparent protective cover that allows you to observe the test status and improve safety. The machine also features a Taiwan WEINVIEW touch screen and Japan Mitsubishi PLC for program control. You can input the test conditions on the touch screen, and the test conditions and test times can be displayed in real-time.

The INFINITY IC1362 is driven by a Japan Panasonic AC servo motor, Japan SHIMPO precision planetary reducer deceleration, Japan Mitsubishi synchronous belt transmission, ensuring that the test angle is accurate and controllable. It has good repeatability and is durable for long-term use. With the function of detecting wire conduction, the wire is disconnected during the test, and the alarm stops immediately. It can also detect the resistance change of the wire and set the upper and lower limits. If the resistance exceeds the limit during the test, the alarm stops immediately.

The machine's test speed is adjustable between 60-360°/s, and it has a 45° angle cone pull. Its machine size is W1030×D 770×H1620mm, and it weighs 155kg. The packaging details include a clear sheet, sponge, and wood carton. The delivery time is 20-30 days after order confirmation, and the payment terms include TT, PayPal, Moneygram, and other options. The minimum order quantity is 1, and the price is negotiable. The INFINITY IC1362 has a supply ability of 200 sets/month, making it a great investment for businesses of all sizes.

Support and Services:

The Wire Pull Tester product is a reliable and accurate tool for testing the tensile strength of wire connections. Our team of technical experts is available to provide support and assistance with any questions or issues that may arise with the product. Additionally, we offer a range of services to ensure that your Wire Pull Tester is functioning at its best, including calibration and repair services. Contact us today to learn more about how we can help you get the most out of your Wire Pull Tester.

Packing and Shipping:

Product Packaging:

• The Wire Pull Tester product will be packed in a sturdy cardboard box.
• The box will be sealed with adhesive tape to ensure that the product is not damaged during shipping.
• The product will be accompanied by an instruction manual and a warranty card.
• The packaging will also include a packing slip with the customer's name and address.

Shipping:

• The product will be shipped via a reputable courier service.
• The shipping cost will be calculated based on the customer's location and shipping preferences.
• The estimated delivery time will be communicated to the customer at the time of purchase.
• The customer will be provided with a tracking number so that they can track their shipment.
• If the product is damaged during shipping, the customer should contact us immediately to arrange for a replacement.

FAQ:

1. What is the brand name of this product?

   Answer: The brand name of this product is INFINITY.

2. What is the model number?

   Answer: The model number is IC1362.

3. Where is this product made?

   Answer: This product is made in China.

4. What certifications does this product have?

   Answer: This product is CE and ISO certified.

5. What is the minimum order quantity for this product?

   Answer: The minimum order quantity for this product is 1.

6. What is the price of this product?

   Answer: The price of this product is negotiable.

7. What are the packaging details for this product?

   Answer: The packaging details for this product include clear sheet, sponge, and wood carton.

8. What is the delivery time for this product?

   Answer: The delivery time for this product is 20-30 days after order confirmed.

9. What are the payment terms for this product?

   Answer: The payment terms for this product include TT, PayPal, Moneygram, and so on.

10. What is the supply ability of this product?

    Answer: The supply ability of this product is 200 sets per month.
