| Place of Origin: | MADE IN CHINA |
| Brand Name: | INFINITY |
| Certification: | CE ISO |
| Model Number: | IC1362 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Clear sheet+sponge+wood carton |
| Delivery Time: | 20-30 days after order confirmed |
| Payment Terms: | TT PAYPAL Moneygram and so on |
| Supply Ability: | 200 sets / month |
| Machine Size: | W1030×D 770×H1620mm | Test Angle: | 0~±720° |
|---|---|---|---|
| Machine Weight: | 155kg | Test Method: | 1.Attach One End Of The Power Cable Or Headphone Cable On The Fixture, As Shown In The Following Figure, Fold Back Into The 80~100mm Of The Clamp End, And Connect With The Reference Line (the Reference Line Passes Through Two Movable Pulleys As Shown In Th |
| Product Name: | Wire 45°Cone Pull Test Machine | Application: | Suitable For All Kinds Of Small Electronic Products Charging Power Cable, Earphone Wire, Small Multi-core Wire For Oblique 45 Degree Rotating Life Test. |
| Model: | IC1362 | Source: | AC 220V 3A |
| Highlight: | 999 Test Times Wire Pull Tester,Resistance Detection Wire Pull Tester,IC1362 Wire Pull Tester |
||

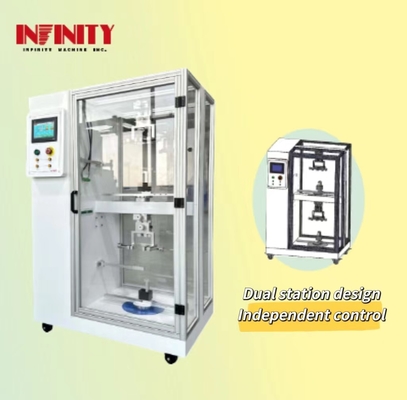

The Wire Pull Tester features a dual station design that allows for independent control, greatly saving test space. It also has a transparent protective cover design for convenient observation of the test status and improved equipment safety. The machine uses Taiwan WEINVIEW Touch Screen and Japan Mitsubishi PLC for program control. Test conditions can be input through the touch screen, and the test conditions and test times can be displayed in real-time.

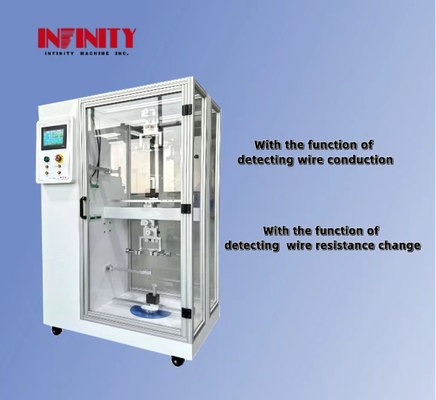

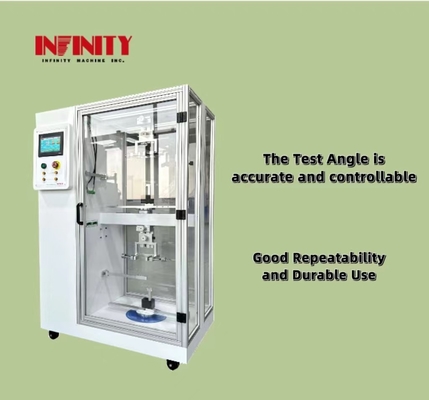

The Wire Pull Testing Machine is driven by a Japan Panasonic AC servo motor, Japan SHIMPO precision planetary reducer deceleration, and Japan Mitsubishi synchronous belt transmission. This ensures a precise and controllable test angle, with good repeatability and durable use. The machine also has the function of detecting wire conduction, and will stop the alarm immediately if the wire is disconnected during the test. It can also detect the resistance change of the wire, with upper and lower limits that can be set. If the resistance exceeds the limit during the test, the machine will stop the alarm immediately.
The Wire Pull Testing Machine has a test angle range of 0~±720°, making it a versatile tool for cable pull testing and other related applications. With its reliable and accurate performance, this machine is a must-have for any laboratory or manufacturing facility that requires precise and efficient cable pull testing. Get your hands on the Wire Pull Testing Machine today and experience the benefits of this top-of-the-line equipment!
| Product Name | Wire 45°Cone Pull Test Machine |
| Model | IC1362 |
| Features | Dual Station Design, Independent Control, Greatly Save The Test Space, Transparent Protective Cover Design, Taiwan WEINVIEW Touch Screen + Japan Mitsubishi PLC Is Used For Program Control, Driven By Japan Panasonic AC Servo Motor, Japan SHIMPO Precision Planetary Reducer Deceleration, Japan Mitsubishi Synchronous Belt Transmission, With The Function Of Detecting Wire Conduction, The Wire Is Disconnected During The Test, And Stop The Alarm Immediately, Has The Function Of Detecting The Resistance Change Of Wire, And Can Set The Upper And Lower Limits |
| Test Angle | 0~±720° |
| Test Method | 1.Attach One End Of The Power Cable Or Headphone Cable On The Fixture, As Shown In The Following Figure, Fold Back Into The 80~100mm Of The Clamp End, And Connect With The Reference Line (the Reference Line Passes Through Two Movable Pulleys As Shown In The Figure Below, And The Other End Is Connected With The Weight). 2. Set The Speed To 252 Degrees / Second, The Rotation Angle Is 720 Degrees, Rotate 360 Degrees And Then Rotate Back To 360 Degrees Back To The Origin Until The Completion Of The Times, Check Whether The Wire Is Good. 3. If It Is Necessary To Monitor Whether The Wire Test Is Defective Or The Wire Resistance Changes, Both Ends Of The Wire Will Be Connected To The Machine Conduction Or Resistance Detection Port Respectively. Once The Wire Break Is Defective Or The Resistance Change Exceeds The Limit, The Machine Will Automatically Stop The Test And Alarm. |
| Test Times | 1 ~ 9,99,999 Times |
| Test Speed | 60-360° / S Adjustable (standard 252° / S) |
| Test Load | 125g and 250g |
| Machine Size | W1030×D 770×H1620mm |

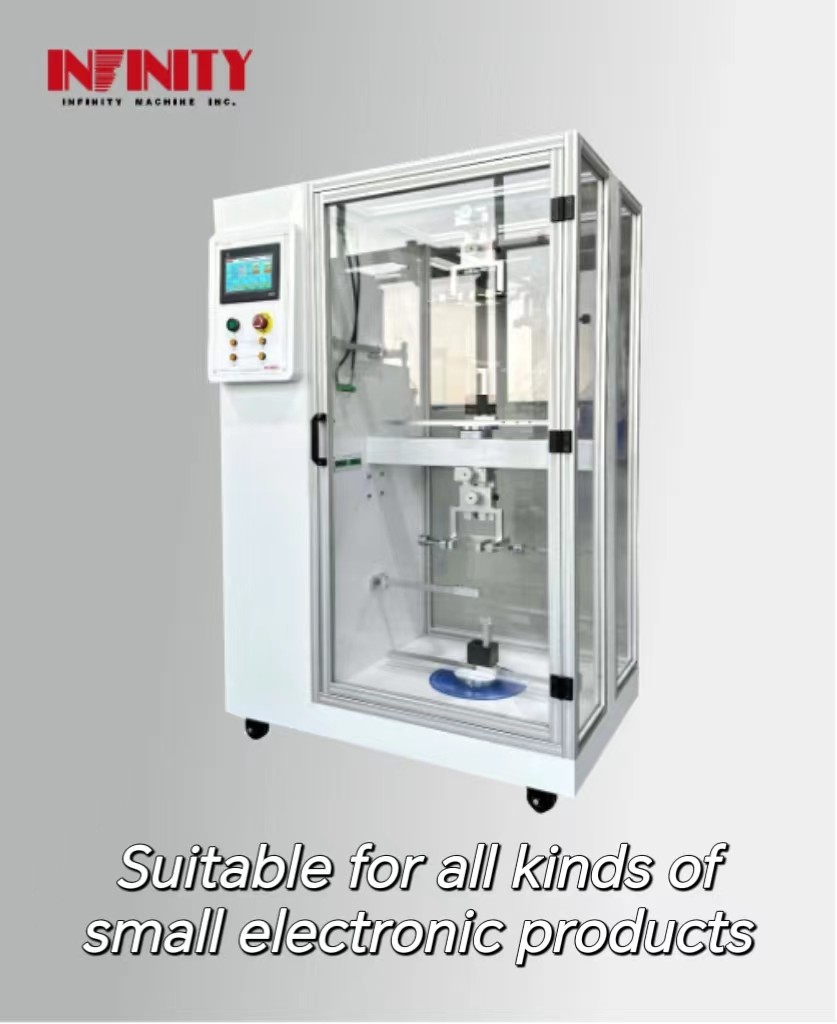

| Application | Suitable for all kinds of small electronic products charging power cable, earphone wire, small multi-core wire for oblique 45 degree rotating life test. |

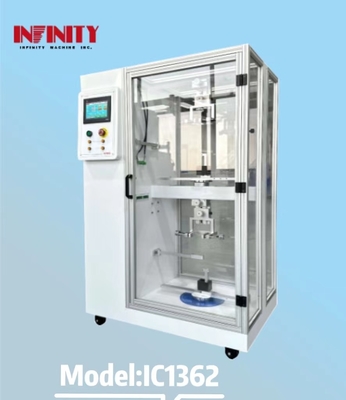

Introducing the INFINITY IC1362 Wire 45°Cone Pull Test Machine, the perfect solution for Cable Pull Testing. This machine is designed and made in China, ensuring high quality and precision in its function. With CE and ISO certifications, our product guarantees safety and reliability for all your testing needs.
The IC1362 model is equipped with a 45° Angle Cone Pull system, allowing for accurate and efficient testing of power cables and headphone cables. The test method is simple - attach one end of the cable to the fixture and fold back into the 80~100mm of the clamp end. Connect with the reference line and set the speed to 252 degrees/second, the rotation angle is 720 degrees, rotate 360 degrees and then rotate back to 360 degrees back to the origin until the completion of the times, check whether the wire is good.
The Wire 45°Cone Pull Test Machine is versatile and can be used in a variety of product application occasions and scenarios. This machine is especially useful for testing cables used in electronic devices, appliances, and automotive applications. It is perfect for quality control and inspection in manufacturing plants and laboratories.
The IC1362 model has a test load of 125g and 250g, providing flexibility in testing different types of cables. Our product is available for negotiation in price, with a minimum order quantity of 1 set. The packaging details include a clear sheet, sponge, and wood carton for safe transportation.
With a delivery time of 20-30 days after order confirmation, we also accept various payment methods such as TT, PayPal, and MoneyGram. Our supply ability is 200 sets per month, ensuring quick turnover for your testing needs. The machine size is W1030×D 770×H1620mm, making it easy to fit into any workspace.
Choose the INFINITY IC1362 Wire 45°Cone Pull Test Machine for accurate and reliable cable testing for all your product needs.
Product Packaging:
The Wire Pull Tester is securely packaged in a sturdy cardboard box with foam padding to prevent any damage during shipping. The product and its accessories are wrapped in plastic to keep them clean and free from scratches. The box is labeled with the product name and specifications for easy identification.
Shipping:
The Wire Pull Tester is shipped via standard ground shipping and is usually delivered within 5-7 business days. Expedited shipping options are available for an additional cost. Shipping fees are calculated based on the destination and weight of the package. A tracking number will be provided once the product has been shipped so that the customer can track the status of their delivery.
Q: What is the brand name of the wire pull tester?
A: The brand name of the wire pull tester is INFINITY.
Q: What is the model number of the wire pull tester?
A: The model number of the wire pull tester is IC1362.
Q: Where is the wire pull tester made?
A: The wire pull tester is made in China.
Q: What certifications does the wire pull tester have?
A: The wire pull tester has CE and ISO certifications.
Q: What is the minimum order quantity for the wire pull tester?
A: The minimum order quantity for the wire pull tester is 1.
Q: What is the price of the wire pull tester?
A: The price of the wire pull tester is negotiable.
Q: What are the packaging details for the wire pull tester?
A: The packaging details for the wire pull tester are clear sheet+sponge+wood carton.
Q: What is the delivery time for the wire pull tester?
A: The delivery time for the wire pull tester is 20-30 days after order confirmed.
Q: What are the payment terms for the wire pull tester?
A: The payment terms for the wire pull tester are TT, PayPal, Moneygram, and so on.
Q: What is the supply ability for the wire pull tester?
A: The supply ability for the wire pull tester is 200 sets per month.
