| Place of Origin: | MADE IN CHINA |
| Brand Name: | INFINITY |
| Certification: | CE ISO |
| Model Number: | IC1362 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Clear sheet+sponge+wood carton |
| Delivery Time: | 20-30 days after order confirmed |
| Payment Terms: | TT PAYPAL Moneygram and so on |
| Supply Ability: | 200 sets / month |
| Machine Size: | W1030×D 770×H1620mm | Test Station: | 2Slots |
|---|---|---|---|
| Product Name: | Wire 45°Cone Pull Test Machine | Model: | IC1362 |
| Test Load: | 125g And 250g | Test Times: | 1 ~ 9,99,999 Times |
| Test Speed: | 60-360° / S Adjustable (standard 252° / S) | Machine Weight: | 155kg |
| Highlight: | Wire Strength Testing Equipment,280mm Radius Wire Strength Testing Equipment |
||

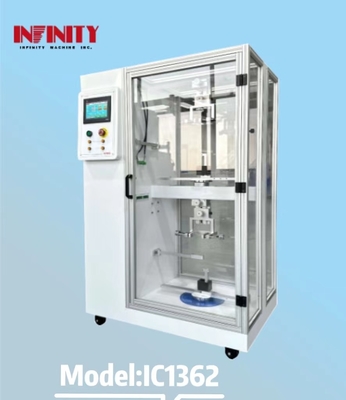

Improve Production Efficiency with Our Wire Strength Testing Equipment 280mm Radius
The Wire 45°Cone Pull Test Machine is equipped with a test station that includes two slots, allowing for simultaneous testing of two wires. The machine tests the radius of rotation at 280mm, providing accurate and consistent results every time.
With the ability to perform 1 to 9,99,999 tests, the Wire 45°Cone Pull Test Machine is a highly versatile machine suitable for a range of industries. The 45° angle cone pull ensures that your products are tested under the most realistic conditions, providing you with reliable data and results.
Overall, the Wire Pull Testing Machine is an essential tool for any business looking to ensure the quality and durability of their electronic products. Not only does it provide accurate and consistent results, but it is also easy to use and requires minimal maintenance, making it an efficient and cost-effective solution for your testing needs.
Keywords: Wire Pull Testing Machine, Wire 45°Cone Pull Test Machine, Wire Pull Testing Machine
| Product Name: | Wire 45°Cone Pull Test Machine |
| Test Method: | Attach one end of the power cable or headphone cable on the fixture, fold back into the 80~100mm of the clamp end, and connect with the reference line (the reference line passes through two movable pulleys as shown in the figure below, and the other end is connected with the weight). Set the speed to 252 degrees/second, the rotation angle is 720 degrees, rotate 360 degrees and then rotate back to 360 degrees back to the origin until the completion of the times, check whether the wire is good. If it is necessary to monitor whether the wire test is defective or the wire resistance changes, both ends of the wire will be connected to the machine conduction or resistance detection port respectively. Once the wire break is defective or the resistance change exceeds the limit, the machine will automatically stop the test and alarm. |
| Test Load: | 125g and 250g |
| Test Speed: | 60-360° / S Adjustable (standard 252° / S) |
| Line Material Resistance Detection Range: | 0.01~2Ώ |
| Test Times: | 1 ~ 9,99,999 times |

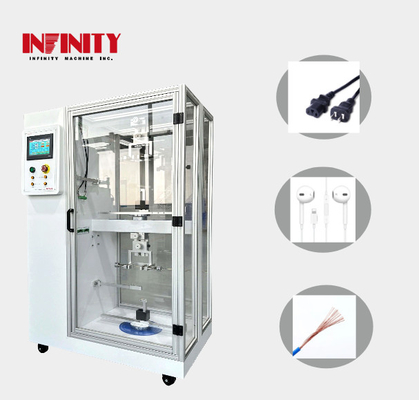

| Application: | Suitable for all kinds of small electronic products charging power cable, earphone wire, small multi-core wire for oblique 45 degree rotating life test. |

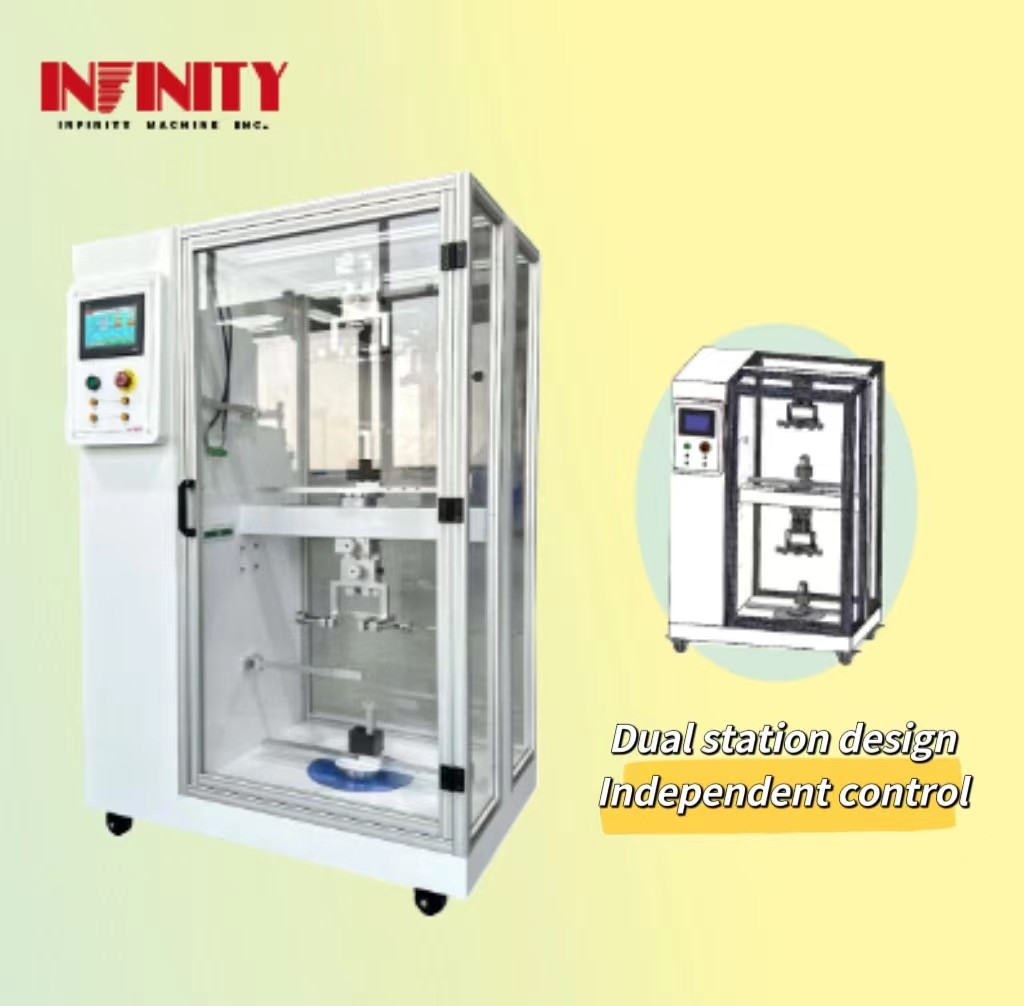

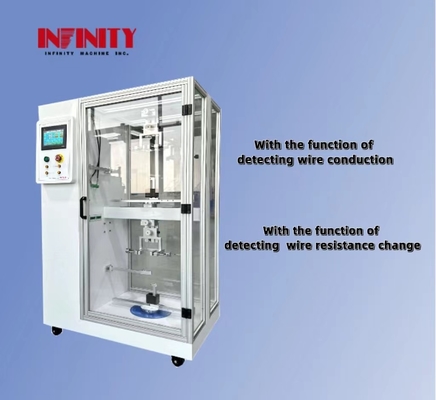

| Features: | Dual station design, independent control, greatly save the test space, transparent protective cover design, not only convenient to observe the test status and improve the safety of the equipment. Taiwan WEINVIEW touch screen + Japan Mitsubishi PLC is used for program control. The test conditions can be input in the touch screen, and the test conditions and test times can be displayed in real time. It is driven by Japan Panasonic AC servo motor, Japan SHIMPO precision planetary reducer deceleration, Japan Mitsubishi synchronous belt transmission, the test angle is accurate and controllable, good repeatability and durable use. With the function of detecting wire conduction, the wire is disconnected during the test, and stop the alarm immediately. It has the function of detecting the resistance change of wire, and can set the upper and lower limits. If the resistance exceeds the limit during the test, stop the alarm immediately. |
| Machine Size: | W1030×D 770×H1620mm |
| Test Station: | 2 Slots |
The INFINITY IC1362 Wire 45°Cone Pull Test Machine is a versatile product suitable for wire strength testing in a variety of industries. It is made in China and comes with both CE and ISO certifications, making it a reliable and safe choice for your testing needs.
With a minimum order quantity of 1 and negotiable pricing, this product is accessible to businesses of all sizes. It is packaged with a clear sheet, sponge, and wooden carton for safe and secure delivery. The delivery time is approximately 20-30 days after order confirmation, and payment terms include TT, PayPal, Moneygram, and more. The supply ability is 200 sets per month, ensuring that your testing needs are met in a timely manner.
The machine size is W1030×D 770×H1620mm, making it compact and easy to fit into your workspace. The IC1362 model is equipped to handle a test load of 125g and 250g, providing flexibility for different applications. The test radius of rotation is 280mm, ensuring that your wires are tested at the appropriate angle. The line material resistance detection range is 0．01~2Ώ, allowing for accurate measurements.
The Wire 45° Angle Cone Pull Test Machine is suitable for a variety of product application occasions and scenarios. It can be used in electronics manufacturing to test the strength of wires in circuit boards. It can also be used in telecommunications to test the strength of cables used in data transmission. In the automotive industry, it can be used to test the strength of wires used in car wiring harnesses.
Additionally, this product can be used in aerospace, medical, and construction industries to test wire strength in various applications.
In conclusion, the INFINITY IC1362 Wire 45°Cone Pull Test Machine is a reliable and versatile product that can be used in various industries for wire strength testing. With its compact size, flexible testing capabilities, and accurate measurements, it is a great investment for any business looking to ensure the strength and durability of their wires.
Model Number: IC1362
Place of Origin: MADE IN CHINA
Certification: CE ISO
Minimum Order Quantity: 1
Price: Negotiate
Packaging Details: Clear sheet+sponge+wood carton
Delivery Time: 20-30 days after order confirmed
Payment Terms: TT PAYPAL Moneygram and so on
Supply Ability: 200 sets / month
Source: AC 220V 3A
Machine size: W1030×D 770×H1620mm
Test speed: 60-360° / S Adjustable (standard 252° / S)
Test load: 125g And 250g
Features:
Use: Wire Pull Testing Machine, Wire 45°Cone Pull Test Machine
Software interface:
The Wire Pull Tester product provides technical support and services to ensure optimal performance and accurate testing results. Our team of experts offers comprehensive product training, troubleshooting assistance, and repair services to keep your equipment functioning at peak efficiency.
We also offer calibration and certification services to ensure that your Wire Pull Tester meets industry standards and regulatory requirements. Our knowledgeable technicians use state-of-the-art equipment and techniques to provide reliable and accurate calibration and certification services.
Additionally, we offer ongoing maintenance and support services to help you get the most out of your Wire Pull Tester. Our team can provide regular maintenance checks, software updates, and other services to ensure that your equipment is always operating at its best.
Product Packaging:
The Wire Pull Tester comes in a sturdy cardboard box with foam inserts to protect the equipment during shipping and transportation. The box measures 12 inches by 10 inches by 8 inches and weighs approximately 5 pounds.
Shipping:
The Wire Pull Tester is shipped via standard ground shipping. Shipping times may vary depending on location and can take anywhere from 3 to 7 business days. Expedited shipping options are available at an additional cost.
Q: What is the brand name of this Wire Pull Tester?
A: The brand name of this product is INFINITY.
Q: What is the model number of this Wire Pull Tester?
A: The model number of this product is IC1362.
Q: Where is this Wire Pull Tester made?
A: This product is made in China.
Q: What certifications does this Wire Pull Tester have?
A: This product has CE and ISO certifications.
Q: What is the minimum order quantity for this Wire Pull Tester?
A: The minimum order quantity for this product is 1.
Q: What is the price of this Wire Pull Tester?
A: The price for this product is negotiable and can be discussed with our sales team.
Q: What is the packaging details for this Wire Pull Tester?
A: The packaging details for this product include a clear sheet, sponge, and wood carton.
Q: What is the delivery time for this Wire Pull Tester?
A: The delivery time for this product is 20-30 days after order confirmation.
Q: What are the payment terms for this Wire Pull Tester?
A: The payment terms for this product include TT, PayPal, Moneygram, and other methods that can be discussed with our sales team.
Q: What is the supply ability for this Wire Pull Tester?
A: The supply ability for this product is 200 sets per month.
