| Place of Origin: | MADE IN CHINA |
| Brand Name: | INFINITY |
| Certification: | CE ISO |
| Model Number: | IC1362 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Clear sheet+sponge+wood carton |
| Delivery Time: | 20-30 days after order confirmed |
| Payment Terms: | TT PAYPAL Moneygram and so on |
| Supply Ability: | 200 sets / month |
| Test Times: | 1 ~ 9,99,999 Times | Machine Weight: | 155kg |
|---|---|---|---|
| Line Material Resistance Detection Range: | 0．01~2Ώ | Test Method: | 1.Attach One End Of The Power Cable Or Headphone Cable On The Fixture, As Shown In The Following Figure, Fold Back Into The 80~100mm Of The Clamp End, And Connect With The Reference Line (the Reference Line Passes Through Two Movable Pulleys As Shown In Th |

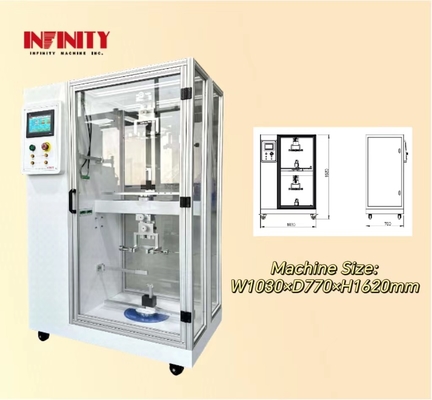

| Machine Size: | W1030×D 770×H1620mm | Test Angle: | 0~±720° |

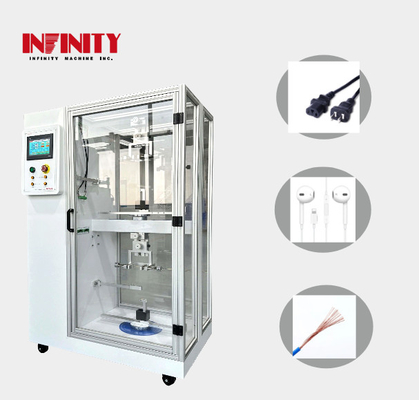

| Application: | Suitable For All Kinds Of Small Electronic Products Charging Power Cable, Earphone Wire, Small Multi-core Wire For Oblique 45 Degree Rotating Life Test. | Test Speed: | 60-360° / S Adjustable (standard 252° / S) |
| Highlight: | AC 220V Wire Pull Tester,2Slots Wire Pull Tester,3A Wire Pull Tester |
||

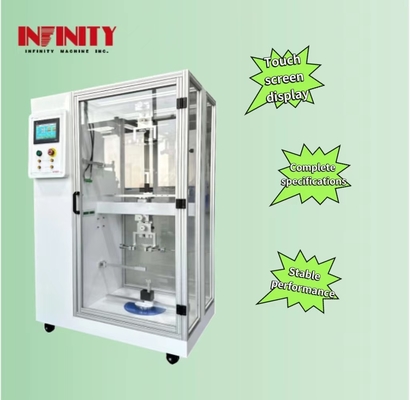

Earphone Wire Wire Pull Tester with 2Slots Test Station and AC 220V 3A Source
One of the most prominent features of this machine is its Dual Station Design, which allows for independent control of the testing process. This feature greatly saves test space, making it perfect for labs and factories of all sizes. Additionally, the machine comes with a transparent protective cover that not only makes it convenient to observe the test status but also improves the safety of the equipment.
The Wire 45°Cone Pull Test Machine is equipped with a Taiwan WEINVIEW Touch Screen and a Japan Mitsubishi PLC for program control. The test conditions can be inputted into the touch screen, and the test conditions and test times can be displayed in real-time. This feature ensures that the testing process is precise and efficient.
The machine is driven by a Japan Panasonic AC Servo Motor, a Japan SHIMPO Precision Planetary Reducer Deceleration, and a Japan Mitsubishi Synchronous Belt Transmission, ensuring the accuracy and controllability of the test angle. With good repeatability and durable use, this machine is sure to provide reliable results every time.

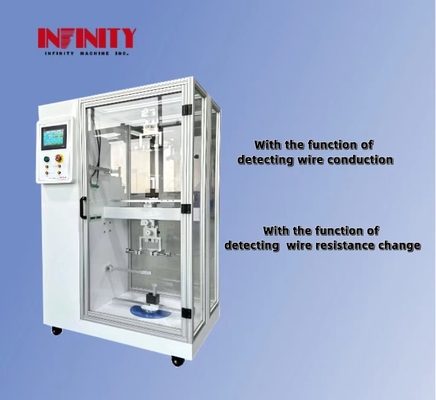

The Wire 45°Cone Pull Test Machine also has the function of detecting wire conduction. If the wire is disconnected during the test, the machine will stop the alarm immediately. Additionally, it has the function of detecting the resistance change of wire and can set the upper and lower limits. If the resistance exceeds the limit during the test, the machine will stop the alarm immediately.
The Wire 45°Cone Pull Test Machine has a line material resistance detection range of 0.01~2Ώ and a machine size of W1030×D 770×H1620mm. With its advanced features and reliable results, this machine is perfect for a variety of lab and factory settings.
Wire Pull Testing Machine, Wire 45°Cone Pull Test Machine
| Product Name: | Wire 45°Cone Pull Test Machine |

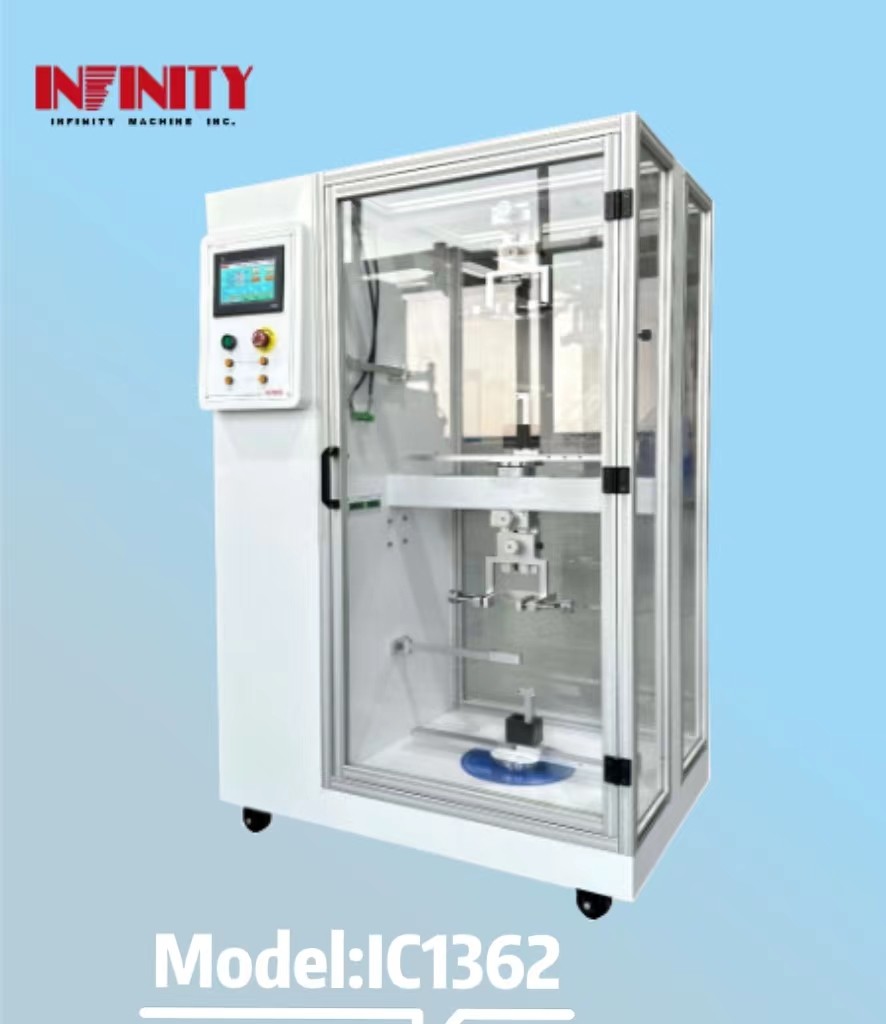

| Model: | IC1362 |
| Source: | AC 220V 3A |
| Machine Weight: | 155kg |
| Test Station: | 2 Slots |
| Test Load: | 125g and 250g |
| Test Method: | 1. Attach one end of the power cable or headphone cable on the fixture, fold back into the 80~100mm of the clamp end, and connect with the reference line (the reference line passes through two movable pulleys as shown in the figure below, and the other end is connected with the weight). 2. Set the speed to 252 degrees / second, the rotation angle is 720 degrees, rotate 360 degrees and then rotate back to 360 degrees back to the origin until the completion of the times, check whether the wire is good. 3. If it is necessary to monitor whether the wire test is defective or the wire resistance changes, both ends of the wire will be connected to the machine conduction or resistance detection port respectively. Once the wire break is defective or the resistance change exceeds the limit, the machine will automatically stop the test and alarm. |
| Machine Size: | W1030×D 770×H1620mm |
| Test Speed: | 60-360° / S Adjustable (standard 252° / S) |
| Features: | Dual station design, independent control, greatly save the test space, transparent protective cover design, not only convenient to observe the test status and improve the safety of the equipment. Taiwan WEINVIEW touch screen + Japan Mitsubishi PLC is used for program control. The test conditions can be input in the touch screen, and the test conditions and test times can be displayed in real time. It is driven by Japan Panasonic AC servo motor, Japan SHIMPO precision planetary reducer deceleration, Japan Mitsubishi synchronous belt transmission, the test angle is accurate and controllable, good repeatability and durable use. With the function of detecting wire conduction, the wire is disconnected during the test, and stop the alarm immediately. It has the function of detecting the resistance change of wire, and can set the upper and lower limits. If the resistance exceeds the limit during the test, stop the alarm immediately. |
The INFINITY Wire Pull Tester, model IC1362, is a powerful and reliable tool for testing the strength of wires and cables. Made in China with CE and ISO certification, this machine is perfect for a variety of testing applications.
The Wire 45°Cone Pull Test Machine features a Dual Station Design with Independent Control, which helps to greatly save test space. The Transparent Protective Cover Design not only makes it convenient to observe the test status, but also improves the safety of the equipment. The machine is equipped with a Taiwan WEINVIEW Touch Screen and a Japan Mitsubishi PLC for program control. The test conditions can be input through the touch screen, and the test conditions and test times can be displayed in real time. It is driven by a Japan Panasonic AC Servo Motor, Japan SHIMPO Precision Planetary Reducer Deceleration, and Japan Mitsubishi Synchronous Belt Transmission, ensuring accurate and controllable test angles, good repeatability, and long-term durability.
The Wire Strength Testing machine is designed to test the radius of rotation of 280mm, with test times ranging from 1 to 9,99,999 times. The test method is simple: just attach one end of the power cable or headphone cable on the fixture, fold back into the 80~100mm of the clamp end, and connect with the reference line. Set the speed to 252 degrees / second, the rotation angle is 720 degrees, rotate 360 degrees and then rotate back to 360 degrees back to the origin until the completion of the times, check whether the wire is good. If it is necessary to monitor whether the wire test is defective or the wire resistance changes, both ends of the wire will be connected to the machine conduction or resistance detection port respectively. Once the wire break is defective or the resistance change exceeds the limit, the machine will automatically stop the test and alarm.
The Cable Pull Testing machine is equipped with a function of detecting wire conduction. If the wire is disconnected during the test, the machine will stop the alarm immediately. It also has the function of detecting the resistance change of wire, and can set the upper and lower limits. If the resistance exceeds the limit during the test, the machine will stop the alarm immediately.
The minimum order quantity is 1, with a negotiable price. The Packaging Details include a clear sheet, sponge, and wood carton, and the delivery time is 20-30 days after order confirmation. Payment terms include TT, PayPal, Moneygram, and other options. The supply ability is 200 sets per month.
Software interface:
Model Number: IC1362
Place of Origin: MADE IN CHINA
Certification: CE ISO
Minimum Order Quantity: 1
Price: Negotiate
Packaging Details: Clear sheet+sponge+wood carton
Delivery Time: 20-30 days after order confirmed
Payment Terms: TT PAYPAL Moneygram and so on
Supply Ability: 200 sets / month
Test load: 125g And 250g
Model: IC1362
Application: Suitable For All Kinds Of Small Electronic Products Charging Power Cable, Earphone Wire, Small Multi-core Wire For Oblique 45 Degree Rotating Life Test.
Line material resistance detection range: 0．01~2Ώ
Test station: 2Slots
Customization services: 45° Angle Cone Pull, Wire Pull Testing Machine, Wire Pull Testing Machine
The Wire Pull Tester is a precision testing instrument designed to measure the pull force required to separate a wire from a connector. It is used in various industries, including aerospace, automotive, and electronics, to ensure the reliability and quality of wire connections.
Our technical support team is available to assist you with any questions or issues you may encounter while using the Wire Pull Tester. We provide comprehensive training and installation services to ensure that you are able to use the instrument effectively and efficiently.
In addition, we offer repair and maintenance services to keep your Wire Pull Tester in optimal condition. Our team of experienced technicians is trained to diagnose and resolve any issues that may arise, ensuring that your testing results are accurate and reliable.
Finally, we offer calibration services to ensure that your Wire Pull Tester is performing within the specified accuracy range. Our calibration services are performed by certified technicians using traceable standards, providing you with confidence in your testing results.
The Wire Pull Tester is packaged in a sturdy cardboard box with foam inserts to protect the device during shipping. The box measures 12 inches x 8 inches x 6 inches and weighs approximately 5 pounds.
Shipping:
Orders for the Wire Pull Tester will be shipped via UPS Ground within the United States. Customers can expect their order to arrive within 5-7 business days. International orders will be shipped via DHL and may take up to 14 business days for delivery. Shipping costs will be calculated at checkout based on the destination and weight of the package.
A: The brand name of this wire pull tester is INFINITY.
Q: What is the model number of this wire pull tester?
A: The model number of this wire pull tester is IC1362.
Q: Where is this wire pull tester made?
A: This wire pull tester is made in China.
Q: What certification does this wire pull tester have?
A: This wire pull tester has CE and ISO certification.
Q: What is the minimum order quantity for this wire pull tester?
A: The minimum order quantity for this wire pull tester is 1.
Q: What is the price of this wire pull tester?
A: The price of this wire pull tester is negotiable.
Q: What are the packaging details for this wire pull tester?
A: The packaging details for this wire pull tester include clear sheet+sponge+wood carton.
Q: What is the delivery time for this wire pull tester?
A: The delivery time for this wire pull tester is 20-30 days after order confirmed.
Q: What are the payment terms for this wire pull tester?
A: The payment terms for this wire pull tester include TT, PayPal, Moneygram, and other methods.
Q: What is the supply ability for this wire pull tester?
A: The supply ability for this wire pull tester is 200 sets per month.
