| Place of Origin: | MADE IN CHINA |
| Brand Name: | INFINITY |
| Certification: | CE ISO |
| Model Number: | IC1362 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Clear sheet+sponge+wood carton |
| Delivery Time: | 20-30 days after order confirmed |
| Payment Terms: | TT PAYPAL Moneygram and so on |
| Supply Ability: | 200 sets / month |
| Features: | Dual Station Design, Independent Control, Greatly Save The Test Space, Transparent Protective Cover Design, Not Only Convenient To Observe The Test Status And Improve The Safety Of The Equipment. Taiwan WEINVIEW Touch Screen + Japan Mitsubishi PLC Is Use | Product Name: | Wire 45°Cone Pull Test Machine |
|---|---|---|---|
| Source: | AC 220V 3A | Model: | IC1362 |
| Test Method: | 1.Attach One End Of The Power Cable Or Headphone Cable On The Fixture, As Shown In The Following Figure, Fold Back Into The 80~100mm Of The Clamp End, And Connect With The Reference Line (the Reference Line Passes Through Two Movable Pulleys As Shown In Th | Test Times: | 1 ~ 9,99,999 Times |

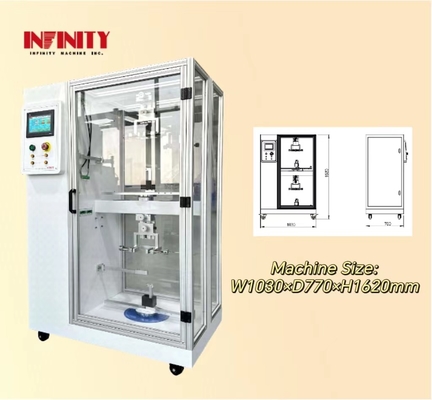

| Machine Size: | W1030×D 770×H1620mm | Test Angle: | 0~±720° |
| Highlight: | 720 Degrees Wire Pull Testing Machine,Comprehensive Wire Pull Testing Machine |
||

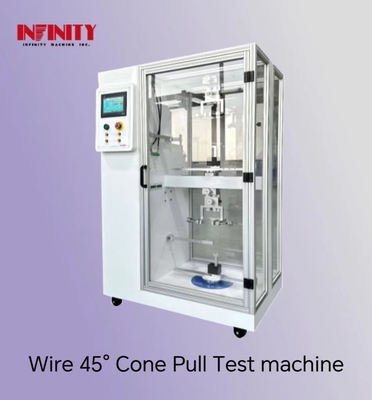

720 Degrees Rotation Angle Wire Pull Testing Machine for Comprehensive Testing Needs

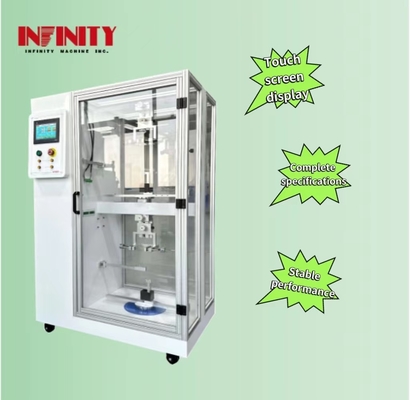

Our Wire Pull Tester features a Dual Station Design, allowing for independent control, which greatly saves test space. The transparent protective cover design allows for convenient observation of the test status, and improves the safety of the equipment. The product also features Taiwan WEINVIEW Touch Screen and Japan Mitsubishi PLC for program control. Test conditions can be input through the touch screen, and the test conditions and test times can be displayed in real-time.

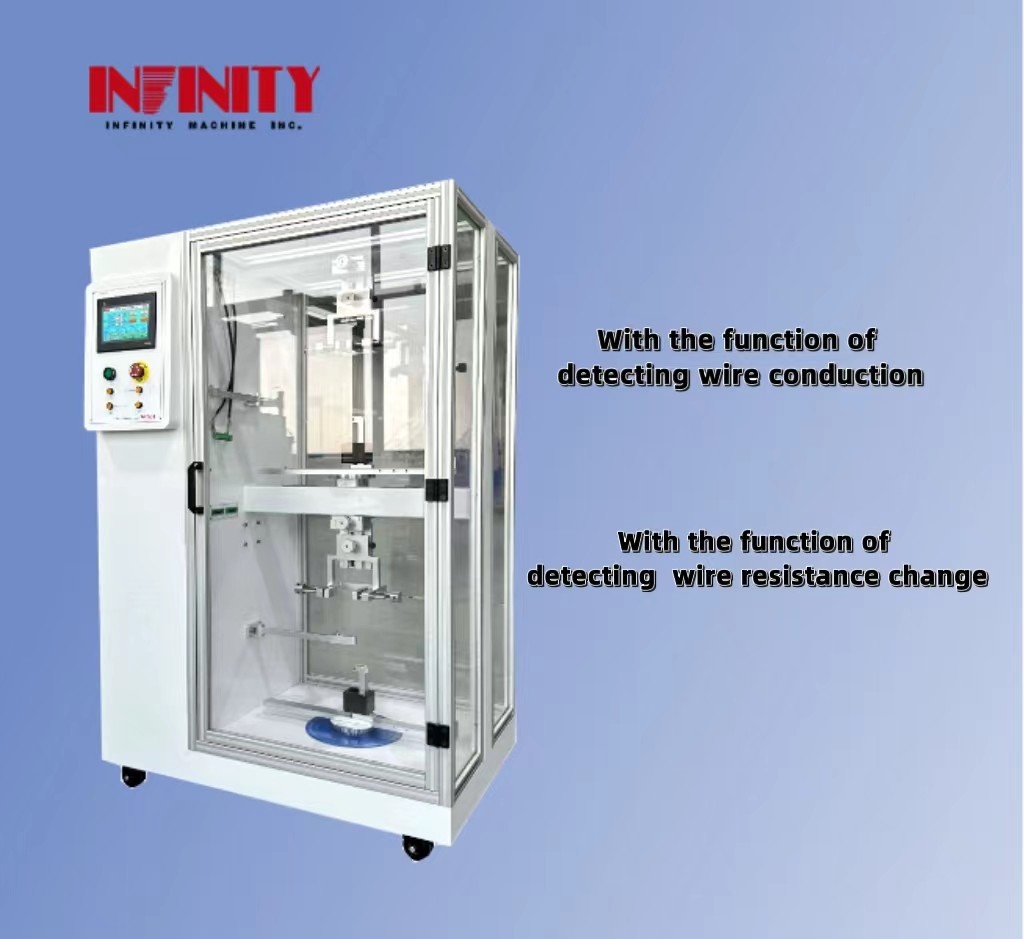

The Wire Pull Tester is driven by Japan Panasonic AC Servo Motor, Japan SHIMPO Precision Planetary Reducer Deceleration, Japan Mitsubishi Synchronous Belt Transmission, making the test angle accurate and controllable, with good repeatability and durable use. The product also has the function of detecting wire conduction, stopping the alarm immediately if the wire is disconnected during the test. It also has the function of detecting the resistance change of the wire and can set the upper and lower limits. If the resistance exceeds the limit during the test, the alarm will stop immediately.
Our Wire Pull Tester follows a simple test method. Firstly, attach one end of the power cable or headphone cable on the fixture, fold back into the 80~100mm of the clamp end, and connect with the reference line. Secondly, set the speed to 252 degrees/second, the rotation angle is 720 degrees, rotate 360 degrees and then rotate back to 360 degrees back to the origin until the completion of the times. Finally, check whether the wire is good. If it is necessary to monitor whether the wire test is defective or the wire resistance changes, both ends of the wire will be connected to the machine conduction or resistance detection port respectively. Once the wire break is defective or the resistance change exceeds the limit, the machine will automatically stop the test and alarm.
| Product Attribute | Value |
| Product Name | Wire Pull Testing Machine |
| Test Radius of Rotation | 280mm |
| Source | AC 220V 3A |
| Line Material Resistance Detection Range | 0.01~2Ώ |
| Test Method | Attach one end of the power cable or headphone cable on the fixture, fold back into the 80~100mm of the clamp end, and connect with the reference line (the reference line passes through two movable pulleys as shown in the figure below, and the other end is connected with the weight). Set the speed to 252 degrees / second, the rotation angle is 720 degrees, rotate 360 degrees and then rotate back to 360 degrees back to the origin until the completion of the times, check whether the wire is good. If it is necessary to monitor whether the wire test is defective or the wire resistance changes, both ends of the wire will be connected to the machine conduction or resistance detection port respectively. Once the wire break is defective or the resistance change exceeds the limit, the machine will automatically stop the test and alarm. |

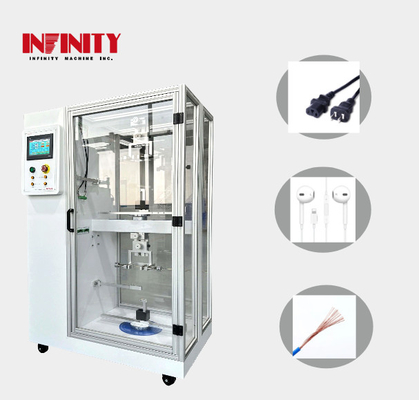

| Application | Suitable for all kinds of small electronic products charging power cable, earphone wire, small multi-core wire for oblique 45 degree rotating life test. |
| Test Times | 1 ~ 9,99,999 Times |
| Machine Size | W1030×D 770×H1620mm |
| Machine Weight | 155kg |
| Test Speed | 60-360° / S Adjustable (standard 252° / S) |
| Features | Dual Station Design, Independent Control, Greatly Save The Test Space, Transparent Protective Cover Design, Not Only Convenient To Observe The Test Status And Improve The Safety Of The Equipment. Taiwan WEINVIEW Touch Screen + Japan Mitsubishi PLC Is Used For Program Control. The Test Conditions Can Be Input In The Touch Screen, And The Test Conditions And Test Times Can Be Displayed In Real Time. It Is Driven By Japan Panasonic AC Servo Motor, Japan SHIMPO Precision Planetary Reducer Deceleration, Japan Mitsubishi Synchronous Belt Transmission, The Test Angle Is Accurate And Controllable, Good Repeatability And Durable Use. With The Function Of Detecting Wire Conduction, The Wire Is Disconnected During The Test, And Stop The Alarm Immediately. It Has The Function Of Detecting The Resistance Change Of Wire, And Can Set The Upper And Lower Limits. If The Resistance Exceeds The Limit During The Test, Stop The Alarm Immediately. |
| Product Attribute | Value |
| Product Name | Wire Strength Testing |
The INFINITY IC1362 Wire 45°Cone Pull Test Machine is a top-of-the-line product made in China. It is certified with CE and ISO, ensuring its quality and reliability. This product is highly versatile and can be used in a variety of different application occasions and scenarios.
The Wire Pull Testing Machine is ideal for use in factories, laboratories, and research and development centers. It is commonly used to test the strength and durability of wires, cables, and other electronic components. This machine is capable of performing a wide range of tests, including tensile testing, compression testing, and flexural testing.
The Wire 45°Cone Pull Test Machine is highly adjustable and can be used to test a variety of different wire sizes and types. It has a test speed of 60-360° / S Adjustable (standard 252° / S) and can perform 1 ~ 9,99,999 Times testing. It has 2 slots for testing stations and a test radius of rotation of 280mm.
The INFINITY IC1362 Wire 45°Cone Pull Test Machine is an excellent choice for businesses and individuals who need a reliable and accurate testing machine. It is easy to use and comes with clear instructions, making it accessible to everyone.
The Wire Pull Testing Machine is suitable for a wide range of industries, including electronics, automotive, aerospace, and telecommunications. It can be used to test the strength of wires and cables in a variety of different applications, including power transmission, data transfer, and signal processing.
The packaging details for this product include a clear sheet, sponge, and wood carton, ensuring that it arrives at its destination safely and securely. The delivery time for this product is 20-30 days after order confirmation, and the minimum order quantity is 1. The price of the product is negotiable, and payment terms include TT, PayPal, Moneygram, and other options. The supply ability for this product is 200 sets per month, ensuring that it is always in stock and available for purchase.
The Wire 45°Cone Pull Test Machine is designed to test the wire strength, with a radius of rotation of 280mm, a machine weight of 155kg, and the ability to test loads of 125g and 250g.
Software interface:
The Wire Pull Tester is a precision testing instrument used to measure the pull-off force of wires, cables, and other similar materials. It is equipped with advanced software that provides accurate and reliable test results. Our product technical support and services include:
Our team of experienced technicians and engineers is dedicated to providing exceptional customer service and ensuring that your Wire Pull Tester is always performing at its best.
Product Packaging:
Shipping:
Q: What is the brand name of this wire pull tester?
A: The brand name of this wire pull tester is INFINITY.
Q: What is the model number of this wire pull tester?
A: The model number of this wire pull tester is IC1362.
Q: Where is this wire pull tester made?
A: This wire pull tester is made in China.
Q: What certifications does this wire pull tester have?
A: This wire pull tester has CE and ISO certifications.
Q: What is the minimum order quantity for this wire pull tester?
A: The minimum order quantity for this wire pull tester is 1.
Q: How much does this wire pull tester cost?
A: The price for this wire pull tester is negotiable.
Q: What is the packaging for this wire pull tester?
A: The packaging for this wire pull tester includes a clear sheet, sponge, and wood carton.
Q: What is the delivery time for this wire pull tester?
A: The delivery time for this wire pull tester is 20-30 days after order confirmed.
Q: What are the payment terms for this wire pull tester?
A: The payment terms for this wire pull tester include TT, PayPal, Moneygram, and other options.
Q: What is the supply ability for this wire pull tester?
A: The supply ability for this wire pull tester is 200 sets per month.
