| Place of Origin: | MADE IN CHINA |
| Brand Name: | INFINITY |
| Certification: | CE ISO |
| Model Number: | IC1362 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Clear sheet+sponge+wood carton |
| Delivery Time: | 20-30 days after order confirmed |
| Payment Terms: | TT PAYPAL Moneygram and so on |
| Supply Ability: | 200 sets / month |
| Machine Size: | W1030×D 770×H1620mm | Test The Radius Of Rotation: | 280mm |
|---|---|---|---|

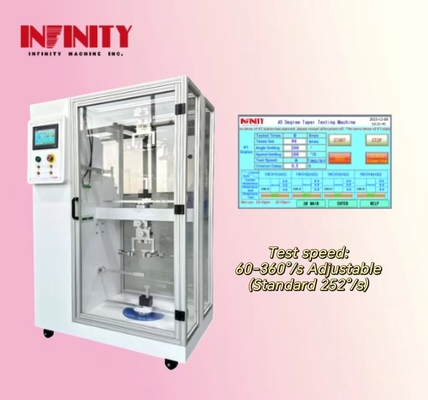

| Test Speed: | 60-360° / S Adjustable (standard 252° / S) | Product Name: | Wire 45°Cone Pull Test Machine |
| Test Times: | 1 ~ 9,99,999 Times | Source: | AC 220V 3A |
| Test Method: | 1.Attach One End Of The Power Cable Or Headphone Cable On The Fixture, As Shown In The Following Figure, Fold Back Into The 80~100mm Of The Clamp End, And Connect With The Reference Line (the Reference Line Passes Through Two Movable Pulleys As Shown In Th | Model: | IC1362 |
| Highlight: | 155kg Load Wire Pull Tester,250g Load Wire Pull Tester,IC1362 Wire Pull Tester |
||
The Wire Pull Tester has a line material resistance detection range of 0.01~2Ώ, allowing for precise measurements and testing. The test method involves attaching one end of the power cable or headphone cable on the fixture and folding back into the 80~100mm of the clamp end, as shown in the following figure. The other end of the cable is connected with the weight through a reference line that passes through two movable pulleys, as shown in the figure below. The machine then rotates 360 degrees and then rotates back to 360 degrees back to the origin until the completion of the times. This is done at a speed of 252 degrees/second, and the rotation angle is 720 degrees. This allows for reliable and accurate testing of the cable strength.
The Wire Pull Tester also tests the radius of rotation, which is 280mm. This ensures that the cable is tested from all angles and that it can withstand any type of pull. Additionally, the Wire Pull Tester has a 45° angle cone pull, which ensures that the cable is tested at all angles and that it can withstand any type of pull.
If it is necessary to monitor whether the wire test is defective or the wire resistance changes, both ends of the wire will be connected to the machine conduction or resistance detection port respectively. Once the wire break is defective or the resistance change exceeds the limit, the machine will automatically stop the test and alarm. This ensures safety and accuracy during testing.
In summary, the Wire Pull Tester is a reliable and accurate tool for testing the strength and durability of power and headphone cables. With its line material resistance detection range of 0.01~2Ώ, 45° angle cone pull, and radius of rotation of 280mm, this machine provides precise and reliable results. Its test method is easy to use and ensures that the cable is tested from all angles. Additionally, the machine has safety features that ensure that the test is stopped if the wire is defective or the resistance change exceeds the limit. The Wire Pull Tester is an essential tool for any workspace that requires reliable and accurate cable testing.
Keywords: Wire 45°Cone Pull Test Machine, Wire Pull Testing Machine, Cable Pull Testing
| Test Method | Attach one end of the power cable or headphone cable on the fixture, fold back into the 80~100mm of the clamp end, and connect with the reference line (the reference line passes through two movable pulleys as shown in the figure below, and the other end is connected with the weight). Set the speed to 252 degrees / second, the rotation angle is 720 degrees, rotate 360 degrees and then rotate back to 360 degrees back to the origin until the completion of the times, check whether the wire is good. If it is necessary to monitor whether the wire test is defective or the wire resistance changes, both ends of the wire will be connected to the machine conduction or resistance detection port respectively. Once the wire break is defective or the resistance change exceeds the limit, the machine will automatically stop the test and alarm. |
|---|---|

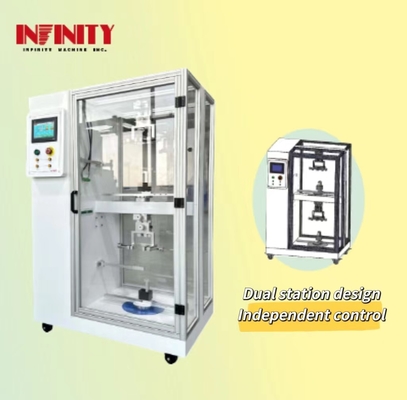

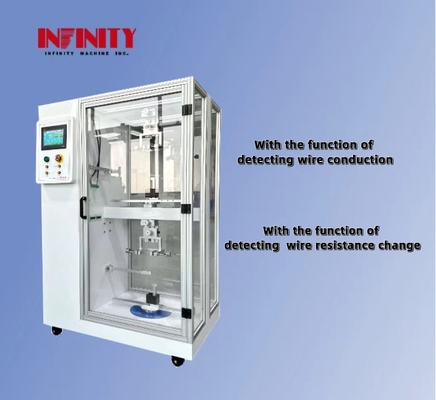

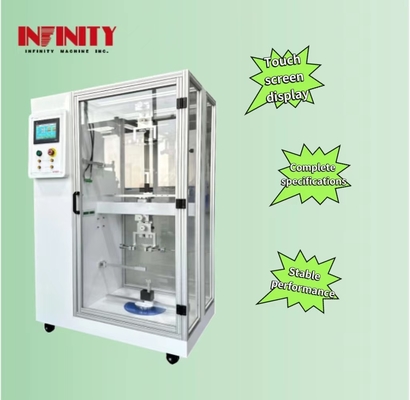

| Features | Dual station design, independent control, greatly save the test space, transparent protective cover design, not only convenient to observe the test status and improve the safety of the equipment. Taiwan WEINVIEW Touch Screen + Japan Mitsubishi PLC is used for program control. The test conditions can be input in the touch screen, and the test conditions and test times can be displayed in real time. It is driven by Japan Panasonic AC Servo Motor, Japan SHIMPO Precision Planetary Reducer Deceleration, Japan Mitsubishi Synchronous Belt Transmission, the test angle is accurate and controllable, good repeatability and durable use. With the function of detecting wire conduction, the wire is disconnected during the test, and stop the alarm immediately. It has the function of detecting the resistance change of wire, and can set the upper and lower limits. If the resistance exceeds the limit during the test, stop the alarm immediately. |

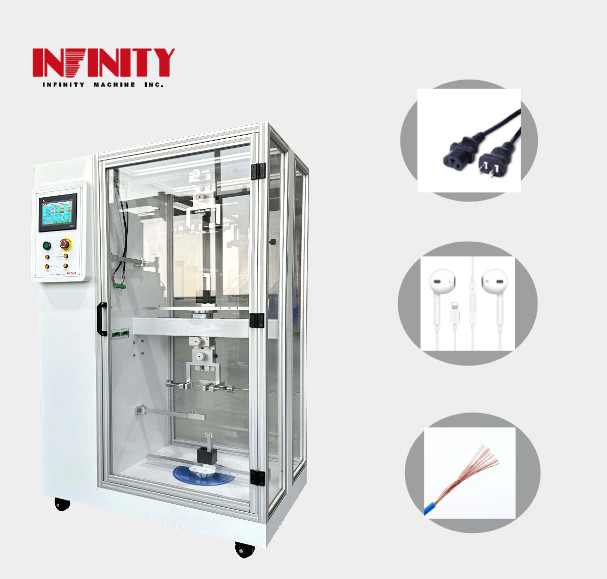

| Application | Suitable for all kinds of small electronic products charging power cable, earphone wire, small multi-core wire for oblique 45 degree rotating life test. |
| Product Name | Wire 45°Cone Pull Test Machine |
| Line Material Resistance Detection Range | 0.01~2Ώ |
| Test Times | 1 ~ 9,99,999 times |
| Test Radius of Rotation | 280mm |
| Machine Weight | 155kg |
| Test Station | 2 slots |
| Model | IC1362 |
Software interface:
The Wire Pull Tester is a precision instrument that is designed to measure the bonding strength between the wire and the substrate. Our product technical support team is available to assist with any queries related to the product features, operation, troubleshooting, and maintenance. We also offer a range of services, including calibration, repair, and warranty support, to ensure the optimal performance and longevity of the instrument. Contact us to learn more about our technical support and services.
Product Packaging:
The Wire Pull Tester product will be packaged carefully to ensure its safety during transport. It will be placed in a sturdy cardboard box lined with bubble wrap for added protection. The box will be clearly labeled with the product name, model number, and handling instructions.
Shipping:
The Wire Pull Tester product will be shipped via a reputable courier service to ensure timely and safe delivery. The shipping cost will be calculated based on the destination and weight of the package. The customer will receive a tracking number via email to monitor the shipment status. Please allow 3-5 business days for delivery within the United States, and 7-10 business days for international shipping.
Q1: What is the brand name of your wire pull tester product?
A1: Our wire pull tester brand name is INFINITY.
Q2: What is the model number of your wire pull tester product?
A2: The model number of our wire pull tester product is IC1362.
Q3: Where is your wire pull tester product made?
A3: Our wire pull tester product is made in China.
Q4: Does your wire pull tester product have any certification?
A4: Yes, our wire pull tester product is CE and ISO certified.
Q5: What are the payment terms for purchasing your wire pull tester product?
A5: We accept various payment terms including TT, PayPal, Moneygram, and others. The price is negotiable and the packaging details include clear sheet, sponge, and wood carton. The delivery time is 20-30 days after order confirmation and our supply ability is 200 sets per month.
