| Place of Origin: | Made in China |
| Brand Name: | Infinity Machine |
| Certification: | CE, ISO |
| Model Number: | RS-6900B |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export wooden case with operation manual and video inside. |
| Delivery Time: | Shipped in 15 days after payment |
| Payment Terms: | D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 sets per month |
| Capacity: | 500gf(5N), 1000g(10N), 2000g(20N) | Effective Testing Range: | 0.2%～100%F.S |
|---|---|---|---|
| Display: | Fp,Fc,Fm,Fr,Click%,The Load Force | Max Testing Range: | 50mm |
| Range Of Test Speed: | 25mm/min～300mm/min | Via USB Cable: | YES |
| Dimension: | 320x220x380mm | Weight: | 13kg |
| Highlight: | force testing machine,button pull test machine |
||
Electrical Force Measuring Instruments for Computer Keyboard Excel Report
Model: RS-6900B
Purpose:
Keys of computer
keypads of mobile phone
Keypads of Calculator, telephone, remote control
Conducting rubber buttons
Metal, spring buttons
Buttons for the other electronic products
And all kinds of touch switch
Application:
Can display the FP,FC,FM,FR, Rate of clicking, and the force value after testing.
The stable speed of this tester has enhanced the precision of repeatability and that avoid the unstable problem by the hand loading testing.
Can set the testing speed on the control panel: the speed adjustable range is 10~300mm/min, And can display the value of current position change. To press the button of TEST, the testing will start, and it will automatically come back to the original position after finishing the testing, the meters have the auto-reset function, that can help the testing efficiency.
This tester has high capacity, high intelligence, the meter can auto save the data up to 800 sets, and can auto judge the pass or failure according to the setting after the testing finish.
Can use USB to export to the EXCEL to create the report
This tester is suitable for the on-site testing for the quality control and for the engineering reference.
Specification:
| Model | RS-6900B |
| Capacity (optional) | 500gf(5N), 1000g(10N), 2000g(20N) |
| Unit (switchable) | N, Kgf, gf, Lbf |
| Resolution | 1/10,000 |
| Load accuracy | ±0.2%F.S |
| Effective testing range | 0.2%～100%F.S |
| Allowable Overload | 150% |
| Display | Fp,Fc,Fm,Fr,Click%,The load force |
| Max testing range | 50mm |
| Range of test speed | 25mm/min～300mm/min |
| Accuracy | ±1% |
| Via USB cable | Yes |
| Dimension (WxDxH) | 320x220x380mm |
| Weight | 13kg |

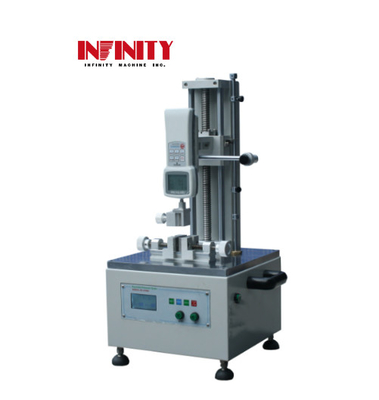

Picture:
