| Place of Origin: | Made In China |
| Brand Name: | Infinity Machine |
| Certification: | CE ISO |
| Model Number: | IN-8330C-4 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Clear sheet+sponge+wood carton |
| Delivery Time: | 20-30 days after order confirmed |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200SETS PER MONTH |
| Product Name: | Four Stations Mechanical Button Testing Machine | Model: | IN-8330C-4 |
|---|---|---|---|
| Application: | Suitable For Long-term Click Life Testing Of Buttons On Various Portable Small Electronic Products | Feature: | Each Testing Station Can Test Three Buttons At A Time, With Adjustable Pressure And A Calibration System To Control The Impact Force. |
| Test Station: | 4 Sets | Test Force Range: | 200gf~1000gf (or Specified) |
| Test Speed: | 1~60 Cycles/min | Test Times: | 1~999999cycles Settable |
| Power: | Electronic | Warranty Period: | 1 Year |
| Highlight: | 200gf Mechanical Button Tester,Economical Mechanical Button Tester,Four Stations Mechanical Button Tester |
||
Test Force Range 200gf~1000gf Economical Four Stations Mechanical Button Tester
Model:IN-8330C-4
Application:
Suitable for long-term click life testing of buttons on various portable small electronic products, such as mobile phones, tablets, laptops, various remote controls, keyboards, etc.
Features:
Technical Parameter:
| Model | IN-8330C-4 |
| Test station | 4sets |
| Click on the lever | 3 pressing rods per workstation |
| Click on the probe | ¢6mm spherical silicone head, Shore hardness: 50±5° (or specified) can be customized with the same hardness conductive rubber head for tapping touch screen |
| Test force range | 200gf~1000gf (or specified) |
| Test speed | 1~60cycles/min |
| Test Times | 1~999999cycles settable |
| Dimension (WxDxH) | W850xD480xH1100mm |
| Weight | 260 kg |
| Power Supply | AC220 50Hz 3A or specified by user |

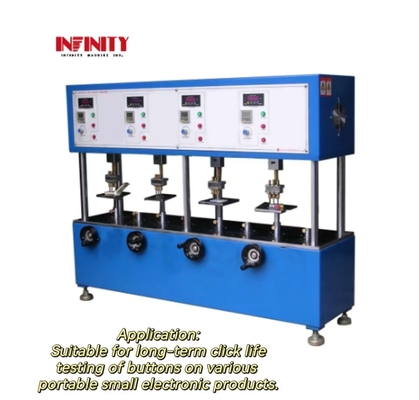

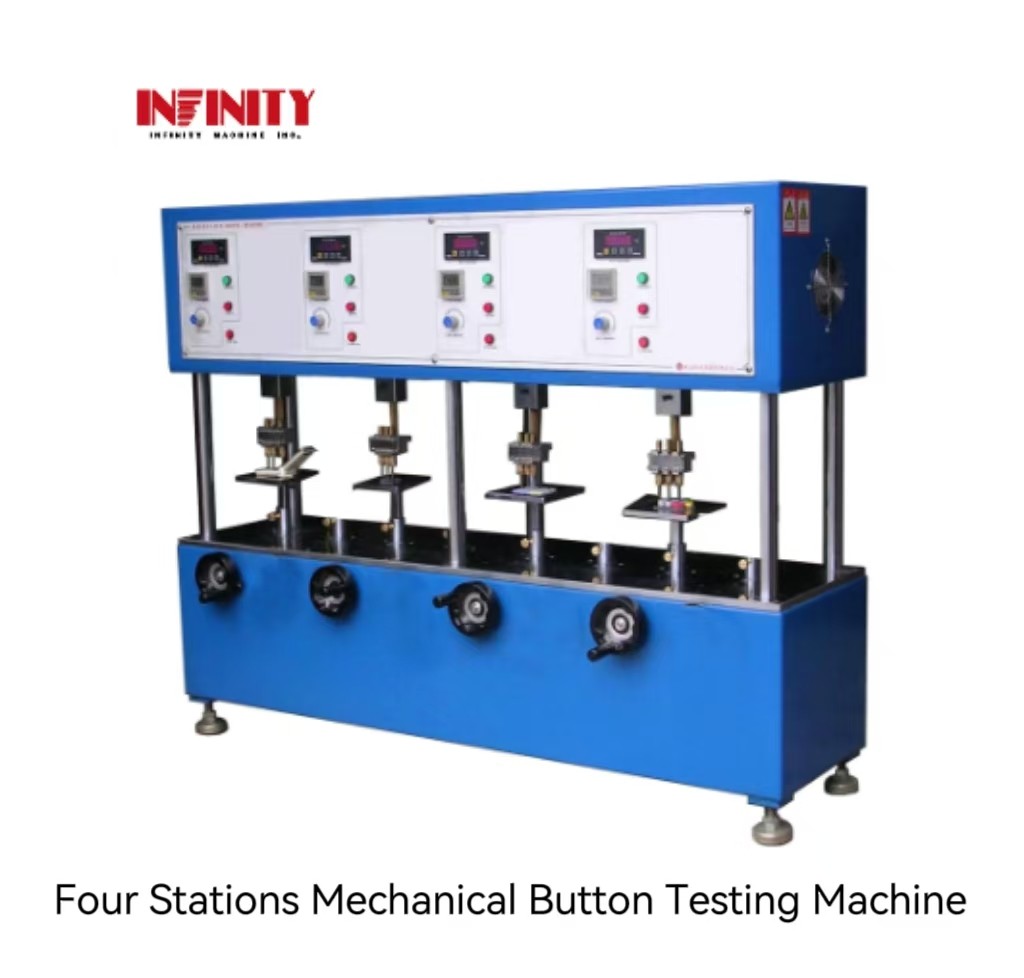

Machine appearance:
Support and Services:
Implementation Assistance,Installation,Training,Calibration,Preventive Maintenance,Technical Support,Upgrade,Repair & Parts.
Packing and Shipping:
Product Packaging:
The Keyboard Button Tester will be securely packaged in a wooden crate to prevent any damage during transportation. The crate will be sealed and labeled with the product information for easy identification.
Shipping:
The shipping of the Keyboard Button Tester will be handled by a reliable and experienced shipping company. The transportation will be arranged to ensure timely delivery and safe handling of the product. The customer will be provided with the tracking information to monitor the shipment status.
