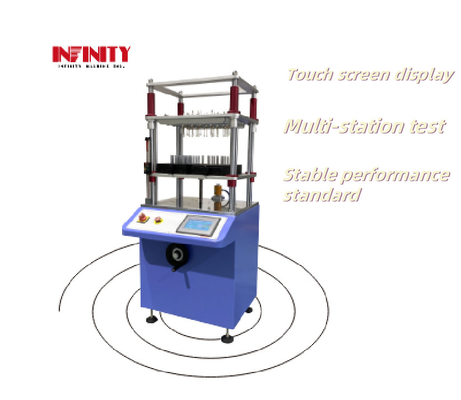

Name: High Speed Keyboard Button Fatigue Life Testing Machine For Small Electronic Products
Brand: Infinity Machine International Inc.
SKU: IN-3302
Price: negotiable USD
Availability: InStock

Home Products Keyboard Button Tester

High Speed Keyboard Button Fatigue Life Testing Machine For Small Electronic Products

Product Details:

Place of Origin:	Made In China
Brand Name:	Infinity Machine
Certification:	CE ISO
Model Number:	IN-3302

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiate
Packaging Details:	Clear sheet+sponge+wood carton
Delivery Time:	20-30 days after order confirmed
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	200SETS PER MONTH

Contact Now

Detailed Product Description

Product Name:	High Speed Button Testing Machine	Model Number:	IN-3302
Test The Trip:	10mm	Press Head Diameter:	6 Or 8mm
Cycle Number Setting:	0~99999999 Times (setting)	Test Mode:	Continuous Test Mode, Intermittent Test Mode
Hit The Number Of Products:	12	Sample Holding Range:	460x320mm
Power:	Electronic	Warranty:	1 Year
Highlight:	Keyboard Button Fatigue Life Testing Machine , High Speed Keyboard Button Tester , Small Electronic Products Keyboard Button Tester

High Speed Keyboard Button Fatigue Life Testing Machine for Small Electronic Products

Model :IN-3302

Application:

The device is used for computer keyboard Keyboard, Note-book keyboard, mobile phone, calculator, e-book, electronic dictionary, game controller, remote control and other electronic products. High Speed Keyboard Button Fatigue Life Testing Machine For Small Electronic Products 0 Features:

The Japanese Panasonic was used^®Seromotor + SHIMPO^®Planetary speed reducer drive, low noise, durable use;
Using the load adjusting probe hitting button, and equipped with a special probe load correcting table and electronic weight correcting the load adjusting probe output, the striking force can be accurately controlled and the mechanical fatigue life of the key can be truly reflected.
The machine adopts Japan THK® high steel bearing steel as support, Japan THK® linear bearing transmission, durable use; The test table is made of aluminum Anodized treatment, wear-resistant surface texture, equipped with porous for keyboard clamping positioning;
Japan OMRON®7"TFT color touch screen +Mitsubishi® PLC control, English and Chinese operation interface, two test modes: continuous test mode -- rapid continuous test mode; Intermittent test mode -- to meet the test requirements of key press hold time, you can set the press hold time 0.1~99.99sec, rise (head off the button) residence time 0.1~99.99sec. Test times 0~99999999 times can be set, with power failure memory function, reach the set number of automatic stop. Test speed: 60~360 times /min in continuous test mode, 5~100 times /min in intermittent test mode.
Using high rigidity guide groove, can be moved back and forth, the measuring head can be moved left and right, basically can measure any keys.
Built-in force sensor, can real-time test head pressure, more accurate and convenient.

Key parts:

High Speed Keyboard Button Fatigue Life Testing Machine For Small Electronic Products 2

Specification parameters:

Projects	Specifications
Test the trip	10mm
Press head diameter	6 or 8mm (Shaw hardness 65, black conductive silicone head, spherical contact surface)
Pressure rod A	750gf (10 sets)
Pressure rod B	1500gf (10 sets)
Pressure rod C	3000gf (10 sets)
At the same time to hit the number of products	12
Electronic called capacity	5000gf precision level 1
Worktop lifting range	0~150mm hand lift, match the height ruler
Sample holding range	460x320mm
The installation scope of head measurement	460x320mm
Keep the pressure down for time	0.1 to 99.99 seconds (setting is available)
Rising stay time	0.1 to 99.99 seconds (setting is available)
Cycle number setting	0~99999999 times (setting)
Test speed	Continuous test mode 60~360 times / min Continuous test mode 5~100 times / min
Test mode	Continuous test mode, intermittent test mode
Fittings of a machine	30 load adjustment measuring heads (can be optional), 10 fixed measuring heads (can be optional), load adjustment table (standard), electronic weighing (5000 gf) standard

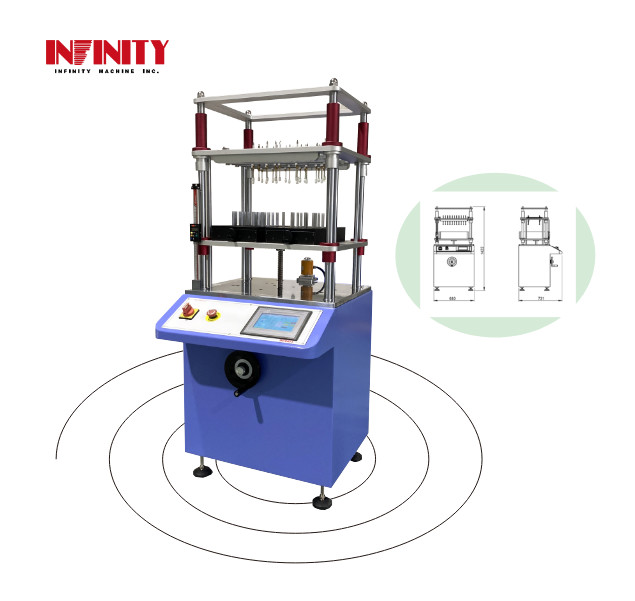

Volume	W680x D7300 x H1300mm
Weight	About 215kg
Source	1∮,AC220V, 5A

Equipment details description:

1: Equipment composition

High Speed Keyboard Button Fatigue Life Testing Machine For Small Electronic Products 3 2: Fixed products

High Speed Keyboard Button Fatigue Life Testing Machine For Small Electronic Products 4 3: Rail guide impact assembly

High Speed Keyboard Button Fatigue Life Testing Machine For Small Electronic Products 5

Support and Services:

Implementation Assistance,Installation,Training,Calibration,Preventive Maintenance,Technical Support,Upgrade,Repair & Parts.

Packing and Shipping:

Product Packaging:

The Keyboard Button Tester will be securely packaged in a wooden crate to prevent any damage during transportation. The crate will be sealed and labeled with the product information for easy identification.

Shipping:

The shipping of the Keyboard Button Tester will be handled by a reliable and experienced shipping company. The transportation will be arranged to ensure timely delivery and safe handling of the product. The customer will be provided with the tracking information to monitor the shipment status.
