| Place of Origin: | Made In China |
| Brand Name: | Infinity Machine |
| Certification: | CE ISO |
| Model Number: | IC2095 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Clear sheet+sponge+wood carton |
| Delivery Time: | 20-30 days after order confirmed |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200SETS PER MONTH |
| Product Name: | Five Stations Wire Swing Testing Machine | Application: | The Equipment Is Suitable For Multi-core Cable, Communication Cable, Headphone Cable, Flat Cable, Signal Cable, Charging Cable And Other Wires For Swinging And Bending Resistance Test. |
|---|---|---|---|
| Feature: | Using Japan Panasonic AC Servo Motor Drive, High Precision Positioning Is Accurate, Low Noise, Can Be Used For A Long Time. Test Angle: 0~180°，Error: ± 10° | Standard: | Bend Test GBT 5023.2 |
| Product Model: | IC2095 | Test Speed: | 6~420 ± 25 Rad/s (settable) |
| Test Angle Range: | 0～±180° | Control System: | Touch Screen +PLC |
| Power: | Electronic | Warranty: | 1 Year |
| Highlight: | Wire Swing Bending Resistance Testing Machine,Five Stations Bending Test Machine,Wire Swing Bending Test Machine |
||

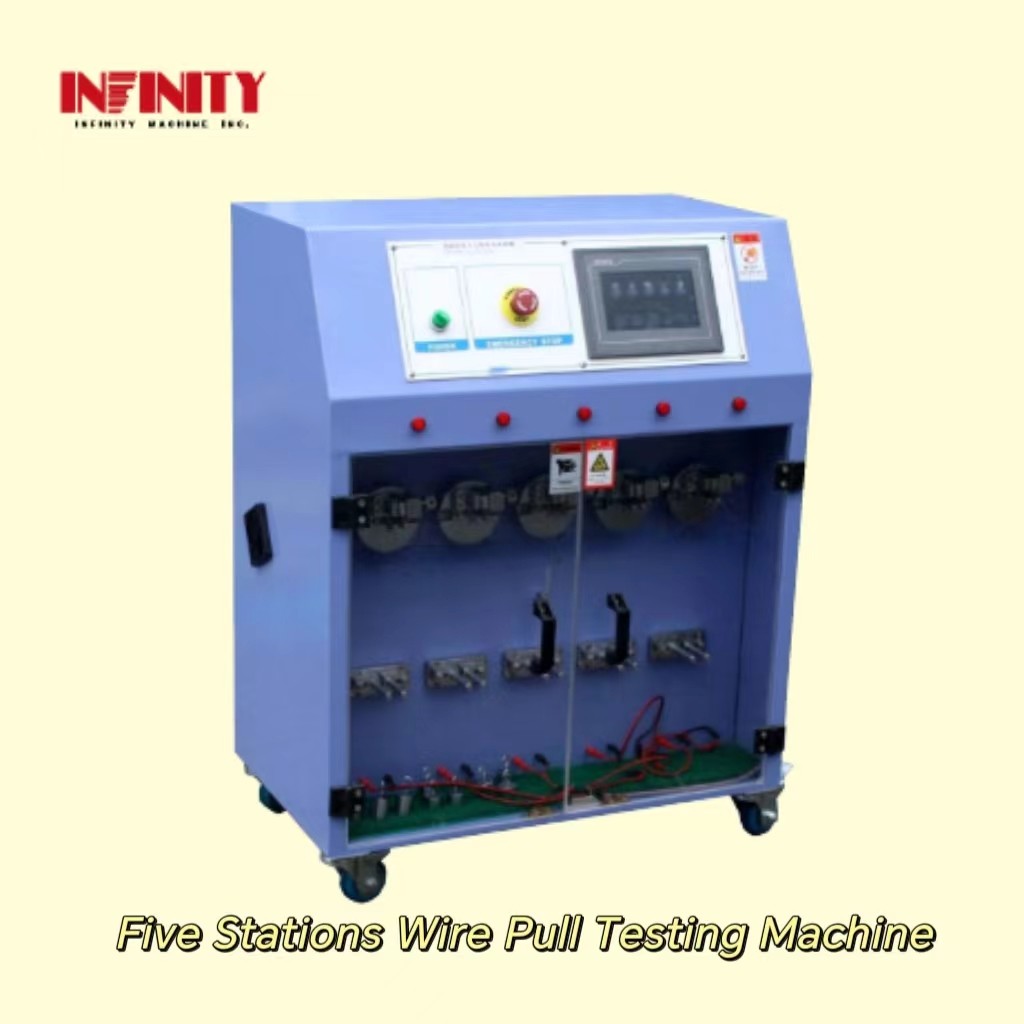

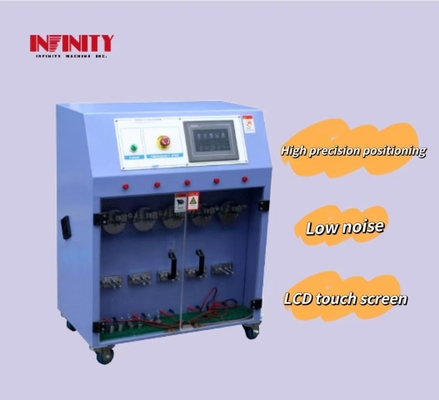

Test Angle Range 0~±180° Five Stations Wire Swing Bending Resistance Testing Machine
Model:IC2095
Application:
The equipment is suitable for multi-core cable, communication cable, headphone cable, flat cable, signal cable, charging cable and other wires for swinging and bending resistance test. The test method is: one end of the wire is short held, fixed on the rotating plate, the wire is vertically downward, the other end binds the weight, the rotating plate rotates left and right, causing repeated bending of the wire, after many tests, to evaluate whether the wire conduction is good.
Features:
Standard:
Bend test GBT 5023.2
Specification parameters:
| Product model |
IC2095 |
| Test samples at the same time | 5pcs |
| Control system | Touch screen +PLC |
| Drive | Japan Panasonic servo motor |
| Test speed | 6~420 ± 25 rad/s (settable) |
| Motor acceleration and deceleration time | <45ms |
| Test angle range | 0～±180° |
| Minimum display angle | 1° |
| Test number range | 1 ~ 9,99,999 times |
| Batch stay time | 1~10Minutes |
| Reaction member |
R1.5,2,2.5,3,3.5,4,4.5,5,5.5,6mm (to be specified before ordering) |
| Spinning disc diameter | 160mm |
|
Weight |
50g,100g,150g,250g,300g |
| Host size |
W780xD460xH940mm |
| Host weight | About 150kg |
| Source | AC220V 50Hz 10A |
Support and Services:
Implementation Assistance,Installation,Training,Calibration,Preventive Maintenance,Technical Support,Upgrade,Repair & Parts.
Packing and Shipping:
Product Packaging:
The Bending Test Machine will be securely packaged in a wooden crate to prevent any damage during transportation. The crate will be sealed and labeled with the product information for easy identification.
Shipping:
The shipping of the Bending Test Machine will be handled by a reliable and experienced shipping company. The transportation will be arranged to ensure timely delivery and safe handling of the product. The customer will be provided with the tracking information to monitor the shipment status.
