| Place of Origin: | Made In China |
| Brand Name: | Infinity Machine |
| Certification: | CE ISO |
| Model Number: | C5092 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Clear sheet+sponge+wood carton |
| Delivery Time: | 20-30 days after order confirmed |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200SETS PER MONTH |
| Product Name: | Cable Flex Cycle Test Machine | Model: | C5092 |
|---|---|---|---|
| Application: | Cable Bending Test Machine Is Suitable For The Bending Testing Of The Multi-wires Cable, Communication Cable, Earphone Cable Etc. | Test Standard: | SFF 8417 Multi Conductor Cable Flex Cycle Test Procedure |
| Test Amount: | 2 PCS | Test Speed: | 10~60rpm±2cpm (Frequent User Of 13rpm) |
| Angle Range: | 90° | Testing Cycles: | 1～999,999times |
| Power: | Electronic | Warranty: | 1 Year |
| Highlight: | Cable Bending Cycle Testing Machine,Dual Station Bending Cycle Testing Machine,Multi Cable Bending Cycle Testing Machine |
||
Dual Station Cable Bending Cycle Testing Machine for Multi-wires Cable
Model:C5092
Purpose:
Cable bending test machine is suitable for the bending testing of the multi-wires cable, communication cable, earphone cable etc. The testing method is short -circuit connecting one end cable and fix this end on the rotation plate, and put the weight on the cable then to do the left and right rotation, to check the cable if conducting after some rotation testing and evaluate the quality of the cable.

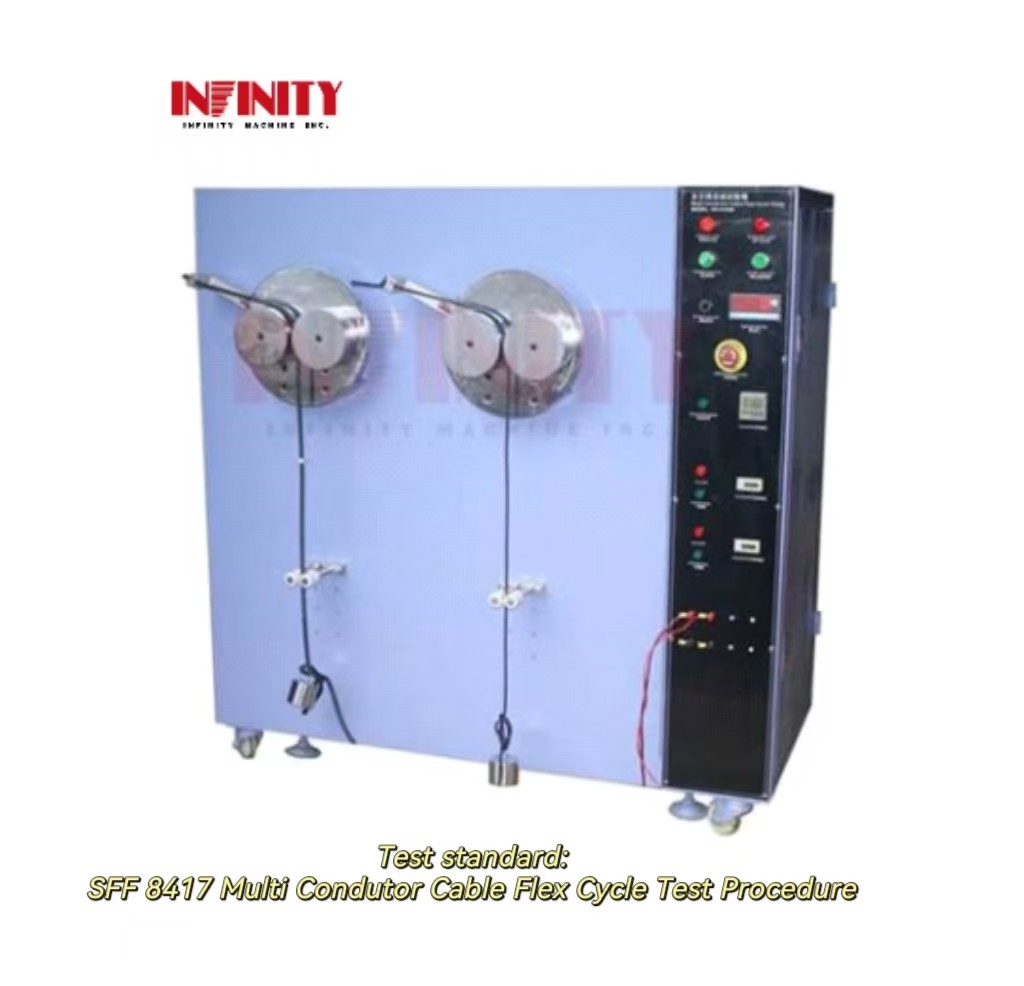

Test standard:
Specification:
| Model | C5092 |
| Test amount | 2 PCS |
| Test speed | 10~60rpm±2cpm (Frequent user of 13rpm) |
| Angle range | 90° |
| Min display angle | ±1° |
| Testing cycles | 1～999,999times |
| Guide wheel diameter | φ26, 38, 50, 62, 74, 86, 98, 110, 122 (changeable) 4 sets |
| Dia.of Rotation plate | 275mm |
| Weights | 100g, 200g, 500g, 1000g(each2 pcs) |
| Dimension (WxDxH) | 1280x724x1320mm |
| Weight | 350kg |
| Power supply | AC220V 50Hz 5A or specified by user |

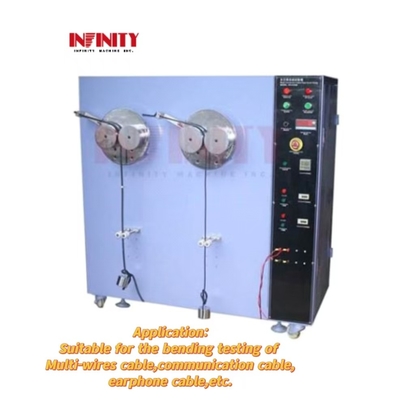

Appearance:
Accessories:
Various diameters of the guide wheels and weights for option.
Support and Services:
Implementation Assistance,Installation,Training,Calibration,Preventive Maintenance,Technical Support,Upgrade,Repair & Parts.
Packing and Shipping:
Product Packaging:
The Bending Testing Machine will be securely packaged in a wooden crate to prevent any damage during transportation. The crate will be sealed and labeled with the product information for easy identification.
Shipping:
The shipping of the Bending Testing Machine will be handled by a reliable and experienced shipping company. The transportation will be arranged to ensure timely delivery and safe handling of the product. The customer will be provided with the tracking information to monitor the shipment status.
