| Place of Origin: | Made In China |
| Brand Name: | Infinity Machine |
| Certification: | CE ISO |
| Model Number: | C5092 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Clear sheet+sponge+wood carton |
| Delivery Time: | 20-30 days after order confirmed |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200SETS PER MONTH |
| Product Name: | Cable Flex Cycle Test Machine | Model: | C5092 |
|---|---|---|---|
| Test Standard: | SFF 8417 Multi Conductor Cable Flex Cycle Test Procedure | Test Amount: | 2 PCS |
| Test Speed: | 10~60rpm±2cpm (Frequent User Of 13rpm) | Angle Range: | 90° |
| Testing Cycles: | 1～999,999times | Power: | Electronic |
| Warranty: | 1 Year | ||
| Highlight: | 5A Bending Cycle Fatigue Testing Machine,50Hz Bending Cycle Fatigue Testing Machine,AC220V Bending Cycle Fatigue Testing Machine |
||
Flexible Cable Bending Cycle Fatigue Testing Machine Power Supply AC220V 50Hz 5A
Model:C5092
Purpose:

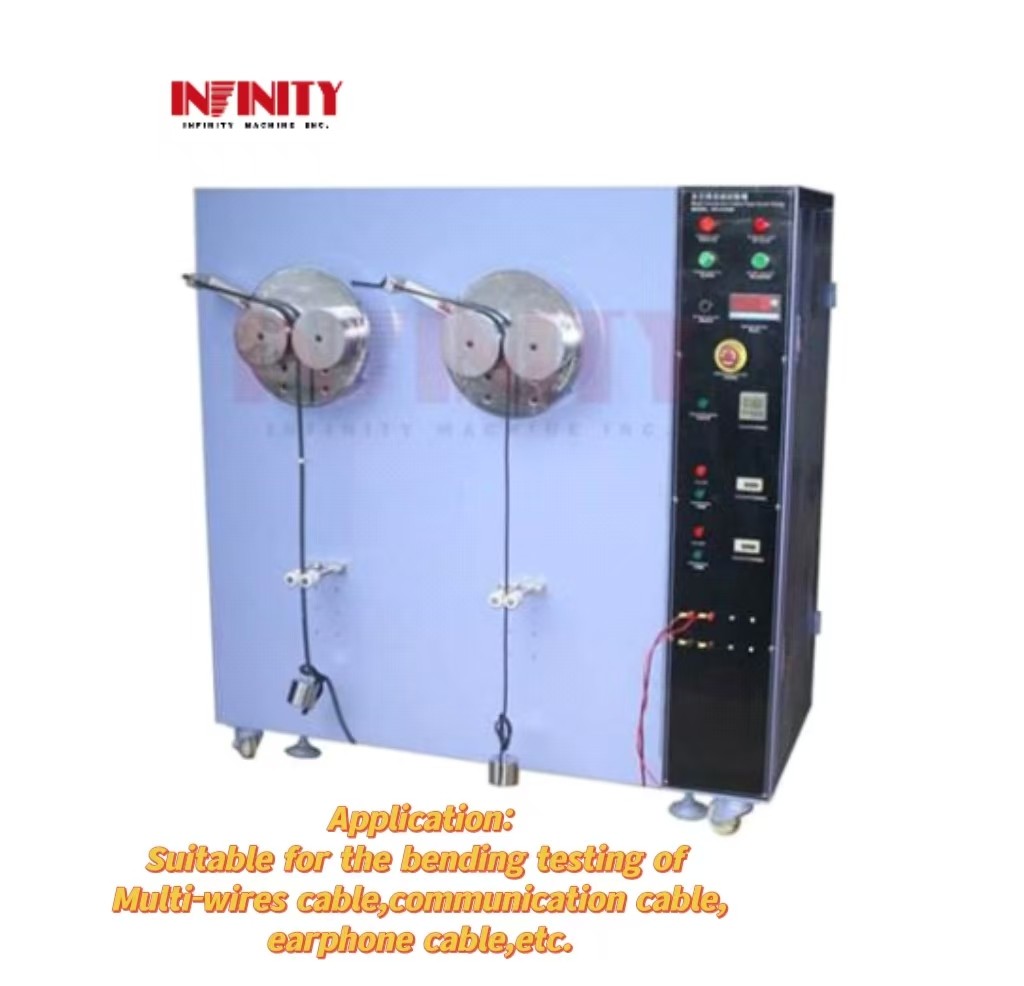

Cable bending test machine is suitable for the bending testing of the multi-wires cable, communication cable, earphone cable etc. The testing method is short -circuit connecting one end cable and fix this end on the rotation plate, and put the weight on the cable then to do the left and right rotation, to check the cable if conducting after some rotation testing and evaluate the quality of the cable.
Test standard:
Specification:
| Model | C5092 |
| Test amount | 2 PCS |
| Test speed | 10~60rpm±2cpm (Frequent user of 13rpm) |
| Angle range | 90° |
| Min display angle | ±1° |
| Testing cycles | 1～999,999times |
| Guide wheel diameter | φ26, 38, 50, 62, 74, 86, 98, 110, 122 (changeable) 4 sets |
| Dia.of Rotation plate | 275mm |
| Weights | 100g, 200g, 500g, 1000g(each2 pcs) |
| Dimension (WxDxH) | 1280x724x1320mm |
| Weight | 350kg |
| Power supply | AC220V 50Hz 5A or specified by user |

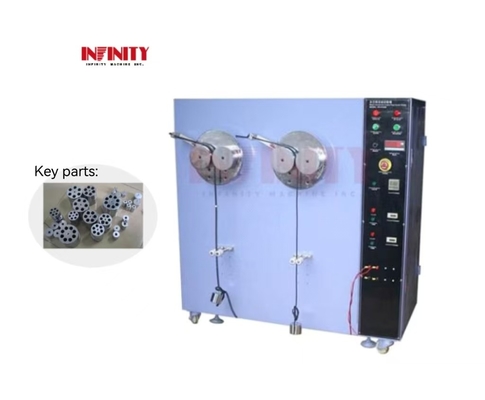

Appearance:
Accessories:
Various diameters of the guide wheels and weights for option.
Related products recommendation:
Plug Bending Tester #IN-8100A:Apply for bending endurance test for cable connected with plug.https://www.tester-machine.com/sale-51047348-iec884-standard-plug-bending-test-machine-used-for-cable-bending-endurance-test.html
Support and Services:
Implementation Assistance,Installation,Training,Calibration,Preventive Maintenance,Technical Support,Upgrade,Repair & Parts.
Product Packaging:
The Bending Testing Machine will be securely packaged in a wooden crate to prevent any damage during transportation. The crate will be sealed and labeled with the product information for easy identification.
