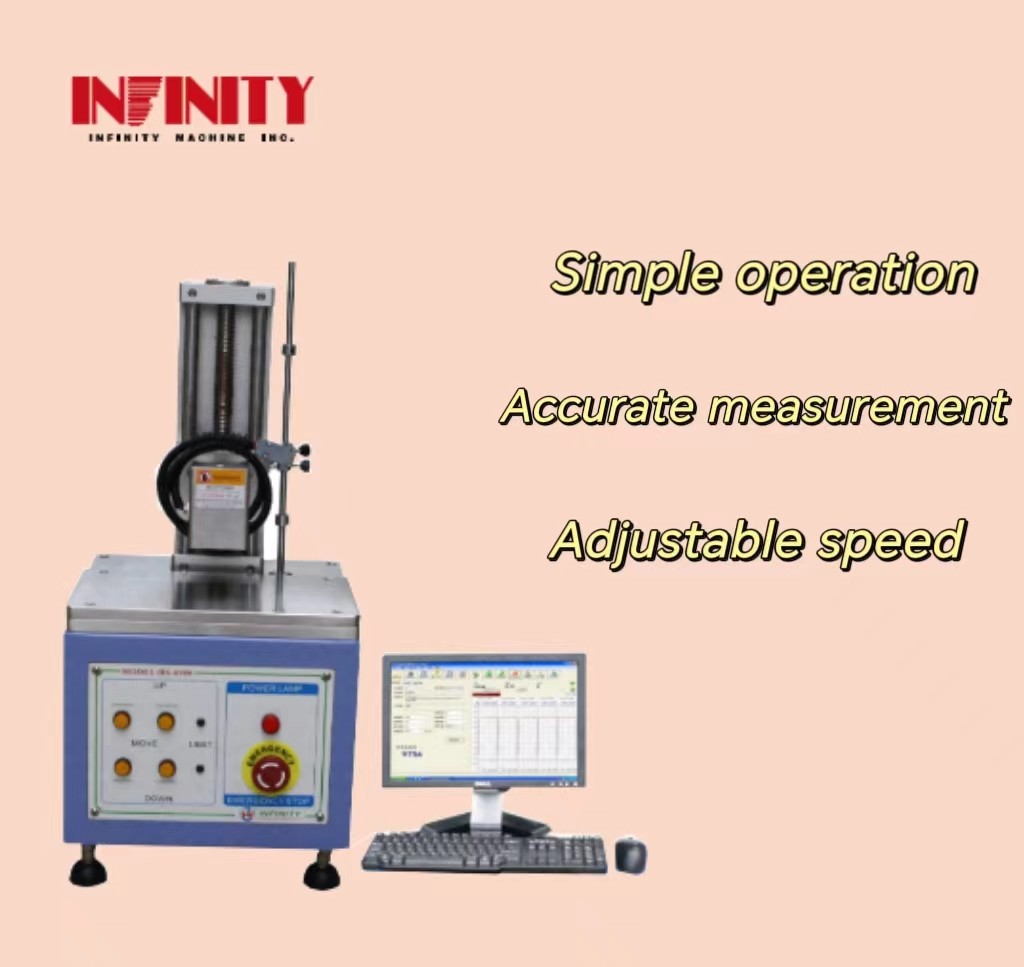

Load Accuracy ±0.5% Pressure Rebound Force Testing Machine For Switch Keyboard Button

          Load Accuracy ±0.5% Pressure Rebound Force Testing Machine for Switch Keyboard Button

                                                                                            Model:IF6001A

Purpose:

This tester is used for pressing force test and rebounding force test of keyboard buttons, and the keystrokes, buttons of all kinds of electronic products.

Adopt high precision load cell and drive by servo motor, can get accurate force testing data.

Application:

• Rubber key force test
• Spring & key force test
• Keyboard & mobile keystroke force test
• Switch force test

Tester Feature:

• The software can create the force value testing report and the testing curves.
• The values of peak force, return force, distance, TT, Click rate and dynamic Impedance data can directly display on the testing window.
• FC, FC_D, FP,. FP_D, FM, FM_D, FR, FR_D, CC, CC_D, CR, TT, FM, FO, FO_D can be indicated after testing and past or failure can be judged by software according r setting the judging conditions.

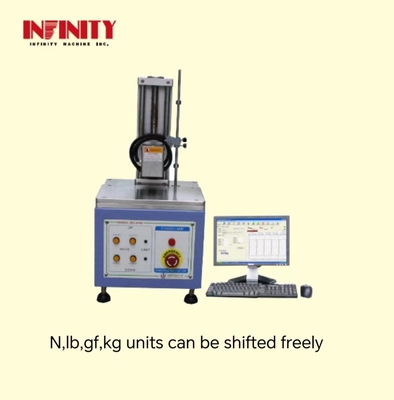

• Chinese / English display interface can be shifted by user; N, lb, gf, kg units can be shifted freely.
• Testing methods can be set and reserved by user, and can create the life-time damping curve and the testing report which can be converted to be Excel and PDF file, or can be printed out directly from the original file.

Specification:

Button Force Testing:

1. Automatically inductive test method: no matter what height of the key is, it can be controlled by computer automatically through the test of the Button test method.

2. Can measure the force of the buttons and also do the fatigue test, it will generate the test graph and also can generate the life damping graph.

    3. The test graph for the button test:

Technical Support and Services:

• We are committed to providing our customers with exceptional technical support and services.
• We offer a comprehensive range of services to ensure that your product is subjected to rigorous testing and quality control.
• We provide technical advice and assistance, from initial inquiry to product delivery.
• We offer a variety of customized services to fit your specific needs.
• We offer installation and set-up services.
• We offer training and maintenance services.
• We offer spare part and consumable supply services.

Product Packaging:

The Keyboard Button Tester will be securely packaged in a wooden crate to prevent any damage during transportation. The crate will be sealed and labeled with the product information for easy identification.
