Name: Load Accuracy ±0.5% Automatic Induction Testing Servo Control Keystroke Switch Tester
Brand: Infinity Machine International Inc.
SKU: IF6001A
Price: negotiable USD
Availability: InStock

Home Products Keyboard Button Tester

Load Accuracy ±0.5% Automatic Induction Testing Servo Control Keystroke Switch Tester

Product Details:

Place of Origin:	Made In China
Brand Name:	Infinity Machine
Certification:	CE ISO
Model Number:	IF6001A

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiate
Packaging Details:	Clear sheet+sponge+wood carton
Delivery Time:	20-30 days after order confirmed
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	200SETS PER MONTH

Contact Now

Detailed Product Description

Product Name:	Servo Control Keystroke / Switch Tester	Model:	IF6001A
Capacity (optional):	500gf, 2kgf, 5kgf	Unit (switchable):	Kgf, N, Lb, Gf
Load Accuracy:	±0.5%	Min. Load Display:	0.01gf
Power:	Electronic	Warranty:	1 Year
Highlight:	Servo Control Keystroke Switch Tester , Automatic Induction Keystroke Switch Tester , Load Accuracy Keystroke Switch Tester

Load Accuracy ±0.5% Automatic Induction Testing Servo Control Keystroke Switch Tester

Model:IF6001A

Purpose:

This tester is used for pressing force test and rebounding force test of keyboard buttons, and the keystrokes, buttons of all kinds of electronic products.

Adopt high precision load cell and drive by servo motor, can get accurate force testing data.

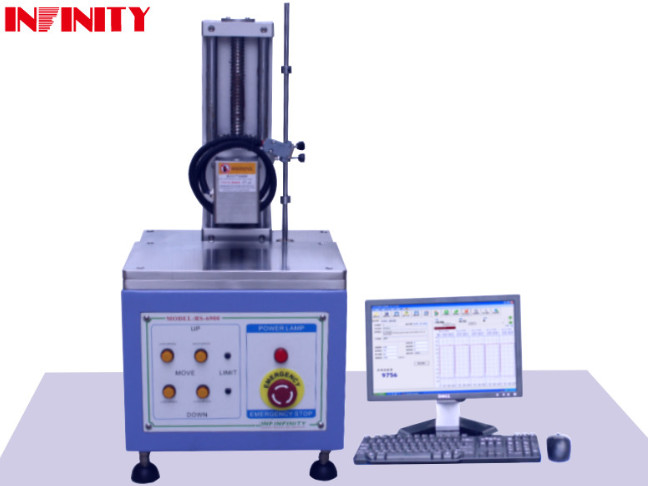

Load Accuracy ±0.5% Automatic Induction Testing Servo Control Keystroke Switch Tester 0

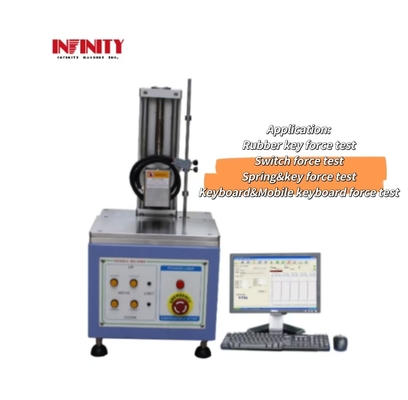

Application:

Rubber key force test
Spring & key force test
Keyboard & mobile keystroke force test
Switch force test

Features:

The software can create the force value testing report and the testing curves.
The values of peak force, return force, distance, TT, Click rate and dynamic Impedance data can directly display on the testing window.
FC, FC_D, FP,. FP_D, FM, FM_D, FR, FR_D, CC, CC_D, CR, TT, FM, FO, FO_D can be indicated after testing and past or failure can be judged by software according r setting the judging conditions.
Chinese / English display interface can be shifted by user; N, lb, gf, kg units can be shifted freely.
Testing methods can be set and reserved by user, and can create the life-time damping curve and the testing report which can be converted to be Excel and PDF file, or can be printed out directly from the original file.

Specification:

Model	IF6001A
Capacity (optional)	500gf, 2kgf, 5kgf
Unit (switchable)	Kgf, N, Lb, gf
Load accuracy	±0.5%
Min. load display	0.01gf
Test stroke	100mm
Min. angle display	0.001mm
Test speed	0~200mm/min
Speed accuracy	±0.5%
Motor	AC servo motor
Main unit dimension (WxDxH)	300x270x500mm
Main unit weight	25kg
Power supply	AC220V 5A or specified by user

Button Force Testing:

1. Automatically inductive test method: no matter what height of the key is, it can be controlled by computer automatically through the test of the Button test method.

2. Can measure the force of the buttons and also do the fatigue test, it will generate the test graph and also can generate the life damping graph.

3. The test graph for the button test:

Load Accuracy ±0.5% Automatic Induction Testing Servo Control Keystroke Switch Tester 1

Support and Services:

Implementation Assistance,Installation,Training,Calibration,Preventive Maintencance,Technical Support,Upgrade,Repair & Parts.

Product Packaging:

The Keyboard Button Tester will be securely packaged in a wooden crate to prevent any damage during transportation. The crate will be sealed and labeled with the product information for easy identification.
