| Place of Origin: | Made In China |
| Brand Name: | INFINITY |
| Certification: | CE ISO |
| Model Number: | IN-8100A |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Clear sheet+sponge+wood carton |
| Delivery Time: | 20-30 days after order confirmed |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 sets / month |
| Product Name: | Plug Bending Tester | Model: | IN-8100A |
|---|---|---|---|
| Standards: | GB2099-2008、IEC884 | Jig: | 6 Sets |
| Bending Angle: | 1~180° (±90°) (Adjustable) | Bending Speed: | 10~60c.p.m (Adjustable) |
| Power: | Electronic | Warranty: | 1 Year |
| Highlight: | Cable Bending Endurance Test Machine,Plug Bending Test Machine,IEC884 Standard Plug Bending Test Machine |
||
Model: IN-8100A

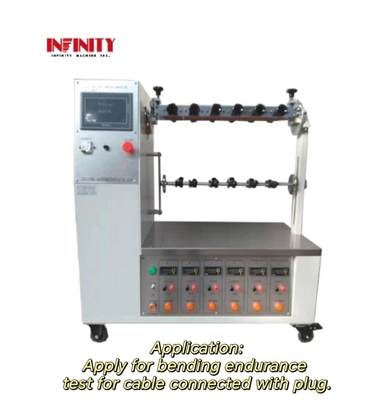

Application:
Apply for bending endurance test for cable connected with plug. Fix the sample on jig and put the weight at the cable, then to swing the jig right and left with the setting angle. after rotating to required cycles then stop to check the cable; or check the rotation cycles after cable broken while the cable is tested by connecting to the electricity. While the cable is broken and disconnected from electricity, the tester will automatically count and then stop.
Specification:
| Model | IN-8100A |
| Standards | GB2099-2008,IEC884 |
| Jig | 6 sets |
| Bending angle | 1~180° (±90°) (Adjustable) |
| Bending speed | 10~60c.p.m (Adjustable) |
| Counter | 6pcs counter individually |
| Load | 50, 100, 200, 300, 500g (6 per each) |
| Weight | 132kg |
| Dimension (WxDxH) | 960x530x850mm |
| Power supply | AC220V 3A or specified by user |

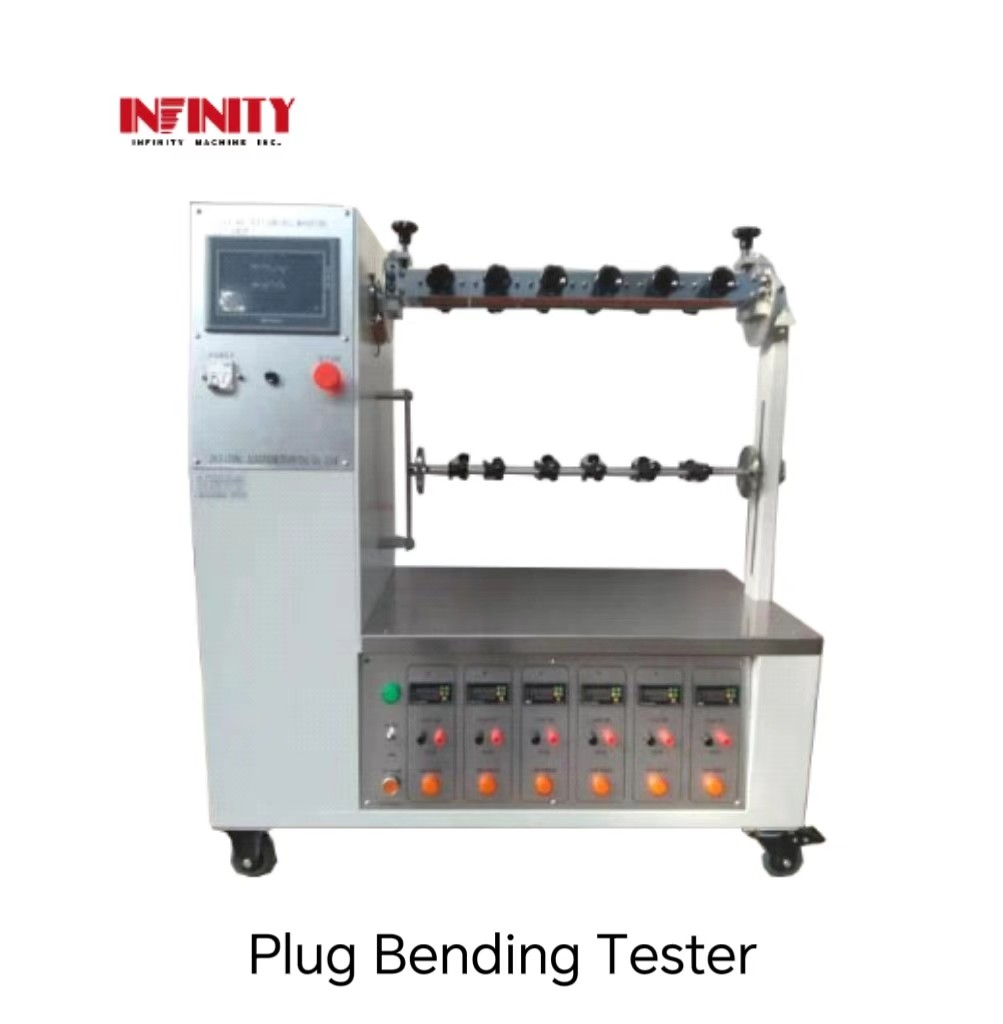

Appearance:
Support and Services:
Implementation Assistance,Installation,Training,Calibration,Preventive Maintencance,Technical Support,Upgrade,Repair & Parts.
Product Packaging:
The Bending Test Machine will be securely packaged in a wooden crate to prevent any damage during transportation. The crate will be sealed and labeled with the product information for easy identification.
