| Place of Origin: | Made In China |
| Brand Name: | Infinity Machine |
| Certification: | CE ISO |
| Model Number: | IN-8330C-4 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Clear sheet+sponge+wood carton |
| Delivery Time: | 20-30 days after order confirmed |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200SET PER MONTH |
| Product Name: | Four Stations Mechanical Button Testing Machine | Model: | IN-8330C-4 |
|---|---|---|---|
| Test Force Range: | 200gf~1000gf (or Specified) | Test Speed: | 1~60cycles/min |
| Test Times: | 1~999999cycles Settable | Application: | Suitable For Long-term Click Life Testing Of Buttons On Various Portable Small Electronic Products |
| Power: | Electronic | Warranty Period: | 1 Year |
| Highlight: | Four Stations Mechanical Button Testing Machine,Economical Mechanical Button Testing Machine,Notebook Life Test Machine |
||
Economical Four Stations Mechanical Button Testing Machine Used for Notebook Life Test
Model:IN-8330C-4
Application:
Suitable for long-term click life testing of buttons on various portable small electronic products, such as mobile phones, tablets, laptops, various remote controls, keyboards, etc.
Features:
Technical Parameter:
|
Model |
IN-8330C-4 |
|
Test station |
4sets |
|
Click on the lever |
3 pressing rods per workstation |
| Click on the probe | ¢6mm spherical silicone head, Shore hardness: 50±5° (or specified) can be customized with the same hardness conductive rubber head for tapping touch screen |
| Test force range |
200gf~1000gf (or specified) |
| Test speed |
1~60cycles/min |
| Test Times |
1~999999cycles settable |
| Dimension (WxDxH) |
W850xD480xH1100mm |
| Weight |
260 kg |
| Power Supply |
AC220 50Hz 3A or specified by user |

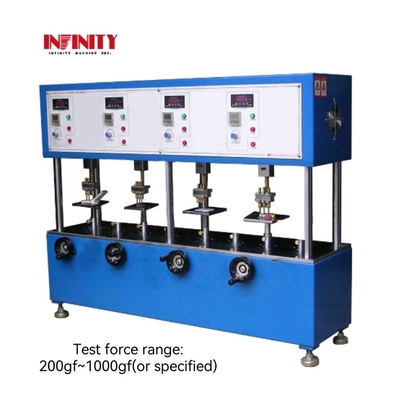

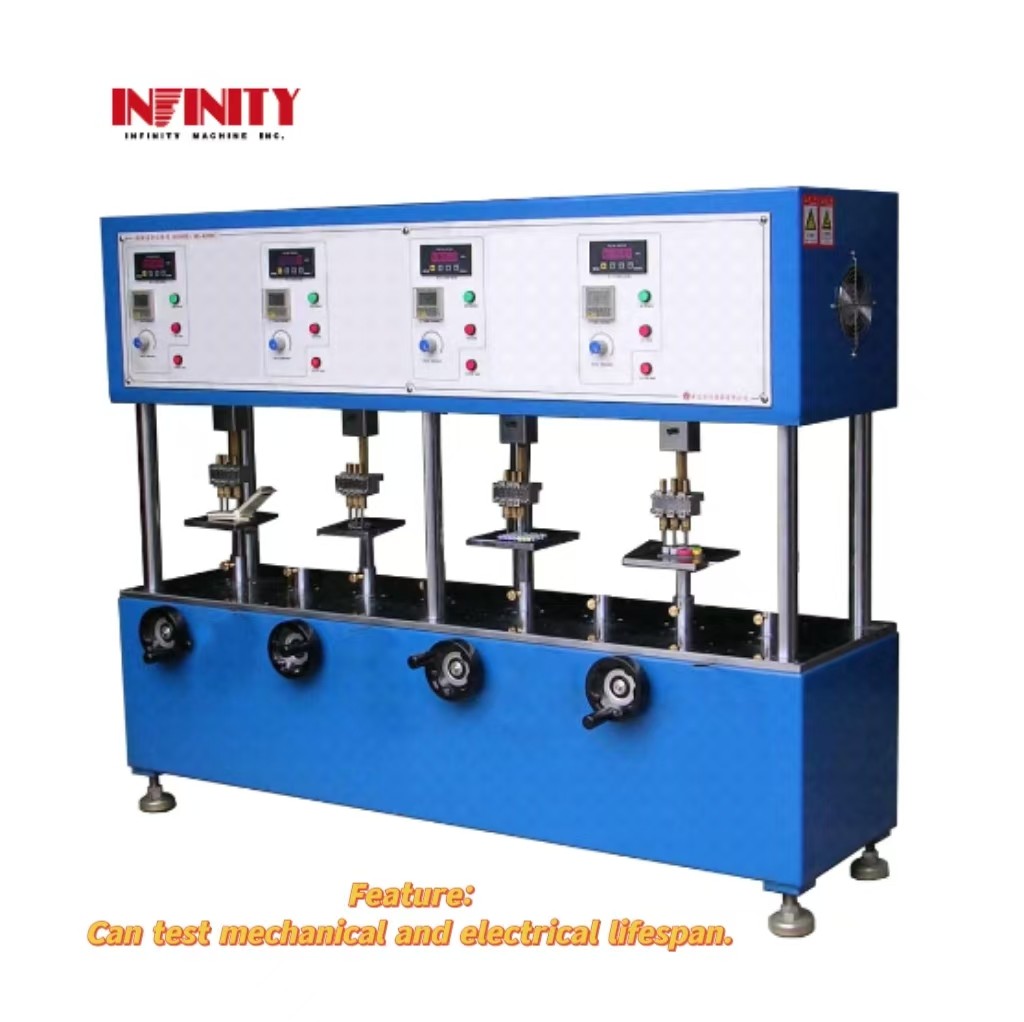

Machine appearance:
Support and Services:
Implementation Assistance,Installation,Training,Calibration,Preventive Maintencance,Technical Support,Upgrade,Repair & Parts.
Product Packaging:
The Keyboard Button Tester will be securely packaged in a wooden crate to prevent any damage during transportation. The crate will be sealed and labeled with the product information for easy identification.
