Four Stations Mechanical Button Testing Machine For Mobile Phone Button Life Test

Four Stations Mechanical Button Testing Machine For Mobile Phone Button Life Test

  • Four Stations Mechanical Button Testing Machine For Mobile Phone Button Life Test
  • Four Stations Mechanical Button Testing Machine For Mobile Phone Button Life Test
Four Stations Mechanical Button Testing Machine For Mobile Phone Button Life Test
Product Details:
Place of Origin: Made In China
Brand Name: Infinity Machine
Certification: CE ISO
Model Number: IN-8330C-4
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiate
Packaging Details: Clear sheet+sponge+wood carton
Delivery Time: 20-30 days after order confirmed
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200SET PER MONTH
Contact Now
Detailed Product Description
Product Name: Four Stations Mechanical Button Testing Machine Model: IN-8330C-4
Test Force Range: 200gf~1000gf (or Specified) Test Speed: 1~60cycles/min
Test Times: 1~999999cycles Settable Application: Suitable For Long-term Click Life Testing Of Buttons On Various Portable Small Electronic Products
Power: Electronic Warranty Period: 1 Year
Highlight:

Four Stations Button Testing Machine

,

Mechanical Button Testing Machine

,

Mobile Phone Button Testing Machine

                           Four Stations Mechanical Button Testing Machine Used for Mobile Phone Button Life Test

                                                                                     Model:IN-8330C-4





Application:

Suitable for long-term click life testing of buttons on various portable small electronic products, such as mobile phones, tablets, laptops, various remote controls, keyboards, etc.



Features:

  •    Can test mechanical and electrical lifespan (on/off conductivity test)
  •    Each testing station can test three buttons at a time, with adjustable pressure and a calibration system to control the impact force

Technical Parameter:

Model IN-8330C-4
Test station 4sets
Click on the lever 3 pressing rods per workstation
Click on the probe ¢6mm spherical silicone head, Shore hardness: 50±5° (or specified) can be customized with the same hardness conductive rubber head for tapping touch screen.
Test force range 200gf~1000gf (or specified)
Test speed 1~60cycles/min
Test Times 1~999999cycles settable
Dimension (WxDxH) W850xD480xH1100mm
Weight 260 kg
Power Supply AC220 50Hz 3A or specified by user

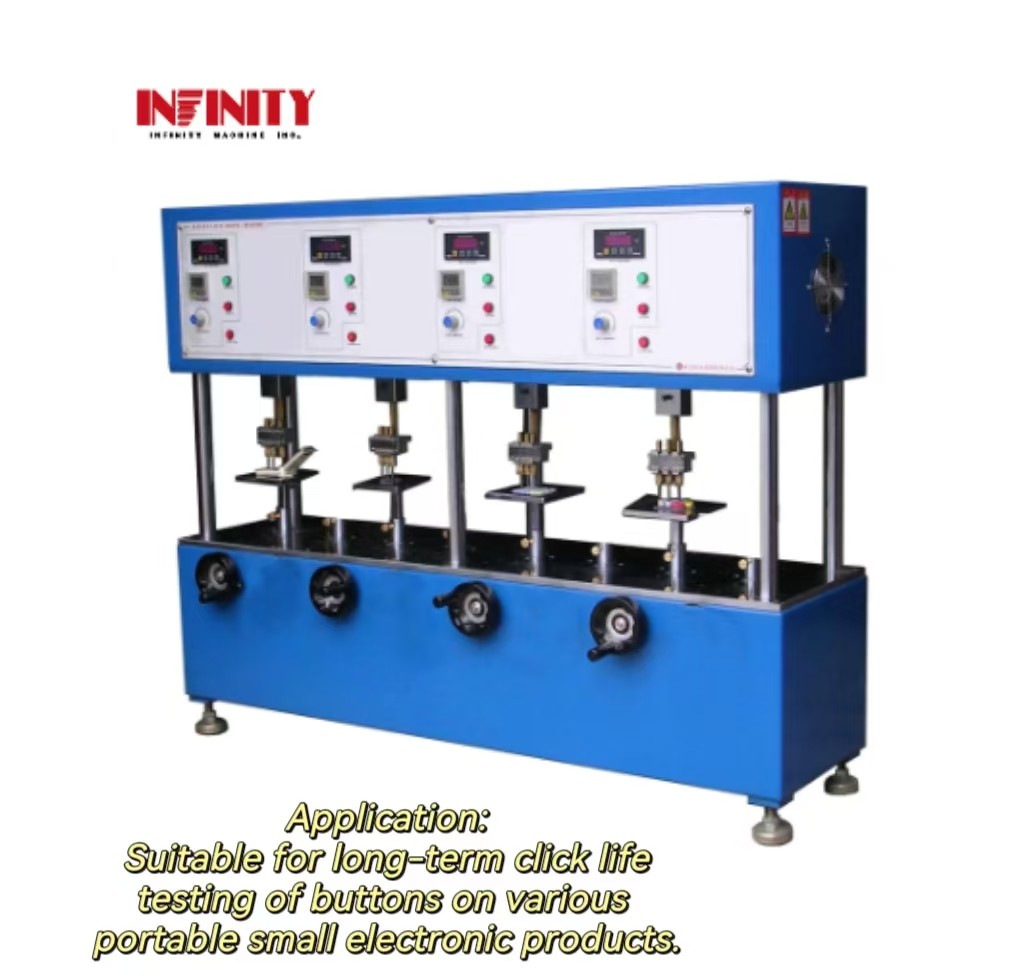

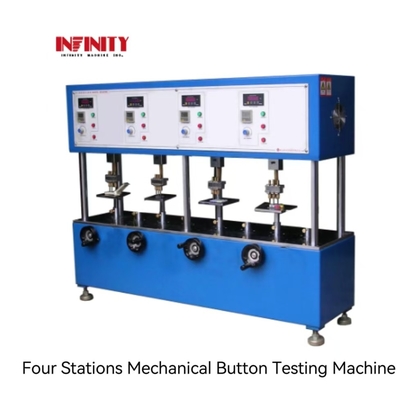

Machine appearance:

Four Stations Mechanical Button Testing Machine For Mobile Phone Button Life Test 0

Our services:

Implementation Assistance,Installation,Training,Calibration,Preventive Maintencance,Technical Support,Upgrade,Repair & Parts.



Product Packaging:

The Keyboard Button Tester will be securely packaged in a wooden crate to prevent any damage during transportation. The crate will be sealed and labeled with the product information for easy identification.
