| Place of Origin: | Made In China |
| Brand Name: | Infinity Machine |
| Certification: | CE ISO |
| Model Number: | IF6001A |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Clear sheet+sponge+wood carton |
| Delivery Time: | 20-30 days after order confirmed |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200SET PER MONTH |
| Product Name: | Servo Control Keystroke / Switch Tester | Model: | IF6001A |
|---|---|---|---|

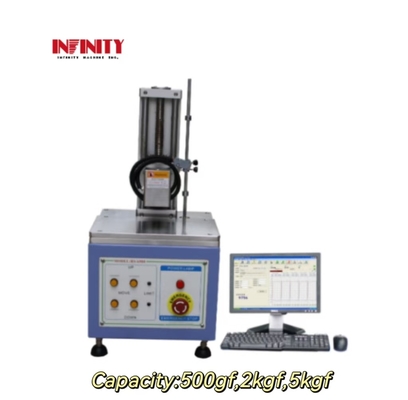

| Capacity (optional): | 500gf, 2kgf, 5kgf | Unit (switchable): | Kgf, N, Lb, Gf |
| Load Accuracy: | ±0.5% | Min. Load Display: | 0.01gf |
| Power: | Electronic | Warranty: | 1 Year |
| Highlight: | Rubber Key Force Keyboard Button Tester,Servo Control Keyboard Button Tester,Keyboard Button Tester |
||
Servo Control Keyboard Button Tester Suitable for Rubber Key Force Test
Model:IF6001A
Purpose:
This tester is used for pressing force test and rebounding force test of keyboard buttons, and the keystrokes, buttons of all kinds of electronic products.
Adopt high precision load cell and drive by servo motor, can get accurate force testing data.

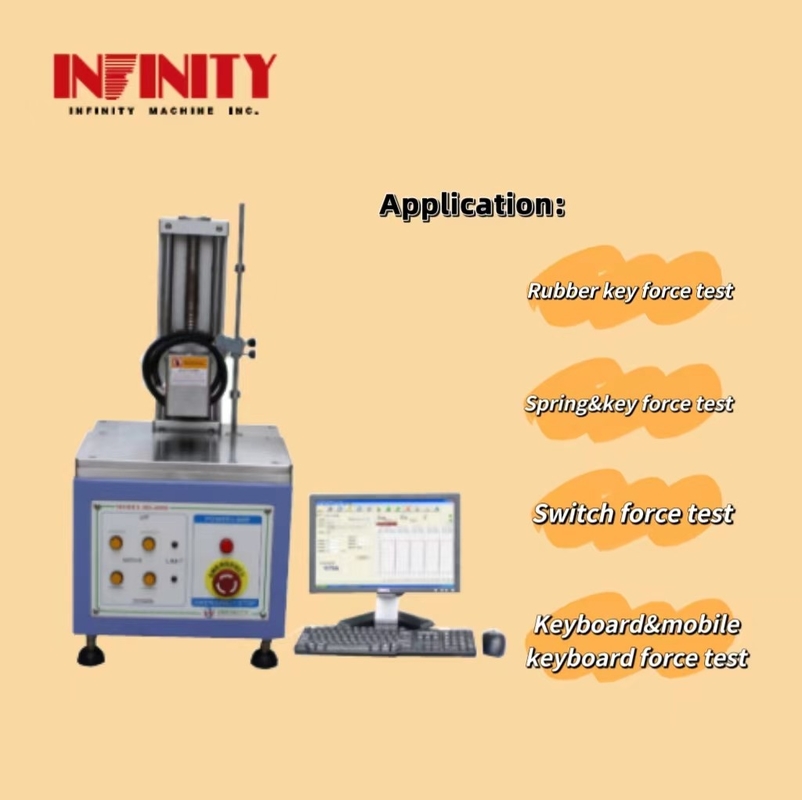

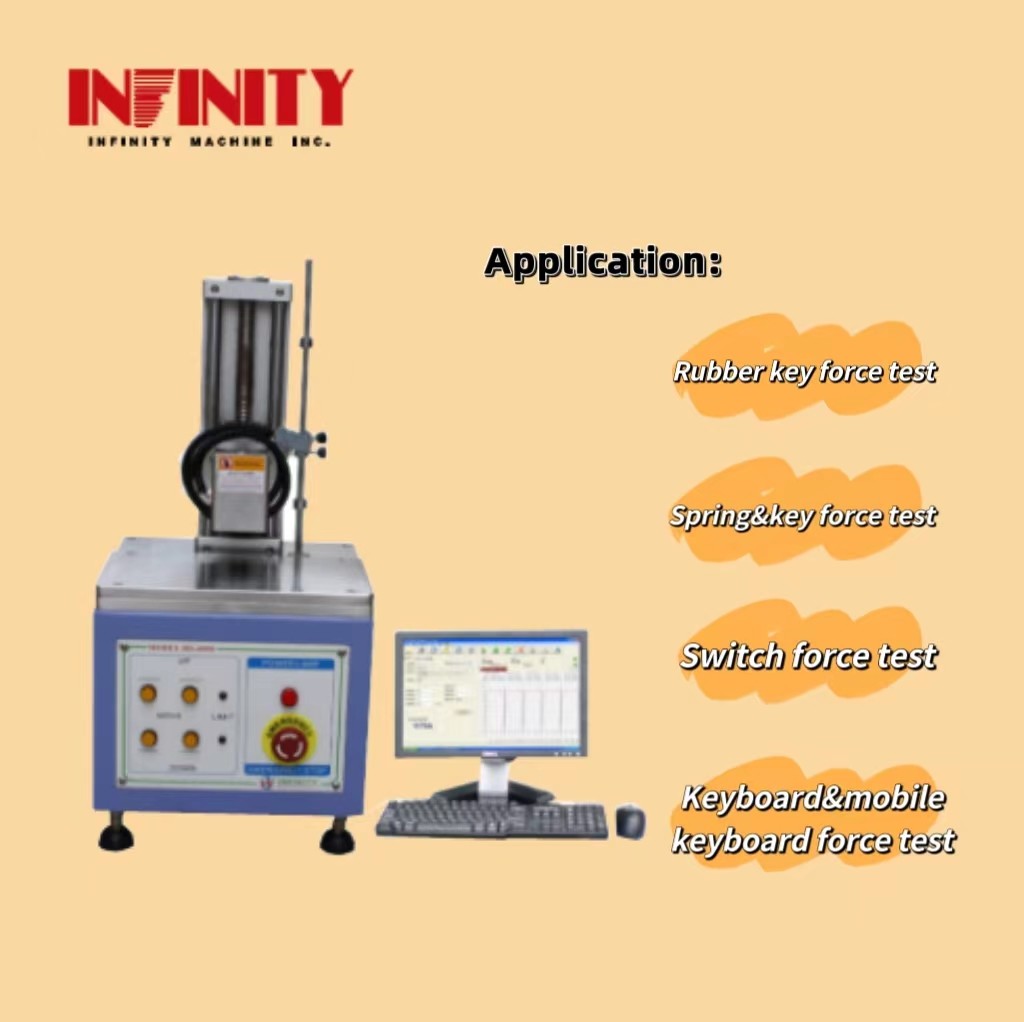

Application:
Tester Feature:
Specification:
| Model | IF6001A |
| Capacity (optional) | 500gf, 2kgf, 5kgf |
| Unit (switchable) | Kgf, N, Lb, gf |
| Load accuracy | ±0.5% |
| Min. load display | 0.01gf |
| Test stroke | 100mm |
| Min. angle display | 0.001mm |
| Test speed | 0~200mm/min |
| Speed accuracy | ±0.5% |
| motor | AC servo motor |
| Main unit dimension (WxDxH) | 300x270x500mm |
| Main unit weight | 25kg |
| Power supply | AC220V 5A or specified by user |
Button Force Testing:
1. Automatically inductive test method: no matter what height of the key is, it can be controlled by computer automatically through the test of the Button test method.
2. Can measure the force of the buttons and also do the fatigue test, it will generate the test graph and also can generate the life damping graph.
3. The test graph for the button test:
Support and Services:
The Keyboard Button Tester product technical support and services include:
- Installation and setup guidance
- Calibration and maintenance services
- Troubleshooting and repair assistance
- Software updates and upgrades
- Training and education on machine operation and safety
- Consultation on testing standards and procedures
