| Product Name: | Plug Bending Tester | Model: | IN-8100A |
|---|---|---|---|
| Standards: | GB2099-2008、IEC884 | Jig: | 6 Sets |
| Power: | Electronic | Warranty: | 1 Year |
| Highlight: | Bending Endurance Test Machine,Plug Bending Test Machine,Cable Bending Test Machine |
||
Model: IN-8100A
Application:
Apply for bending endurance test for cable connected with plug. Fix the sample on jig and put the weight at the cable, then to swing the jig right and left with the setting angle. after rotating to required cycles then stop to check the cable; or check the rotation cycles after cable broken while the cable is tested by connecting to the electricity. While the cable is broken and disconnected from electricity, the tester will automatically count and then stop.
Specification:
| Model | IN-8100A |
| Standards | GB2099-2008,IEC884 |
| Jig | 6 sets |
| Bending angle | 1~180° (±90°) (Adjustable) |
| Bending speed | 10~60c.p.m (Adjustable) |
| Counter | 6pcs counter individually |
| Load | 50, 100, 200, 300, 500g (6 per each) |
| Weight | 132kg |
| Dimension (WxDxH) | 960x530x850mm |
| Power supply | AC220V 3A or specified by user |

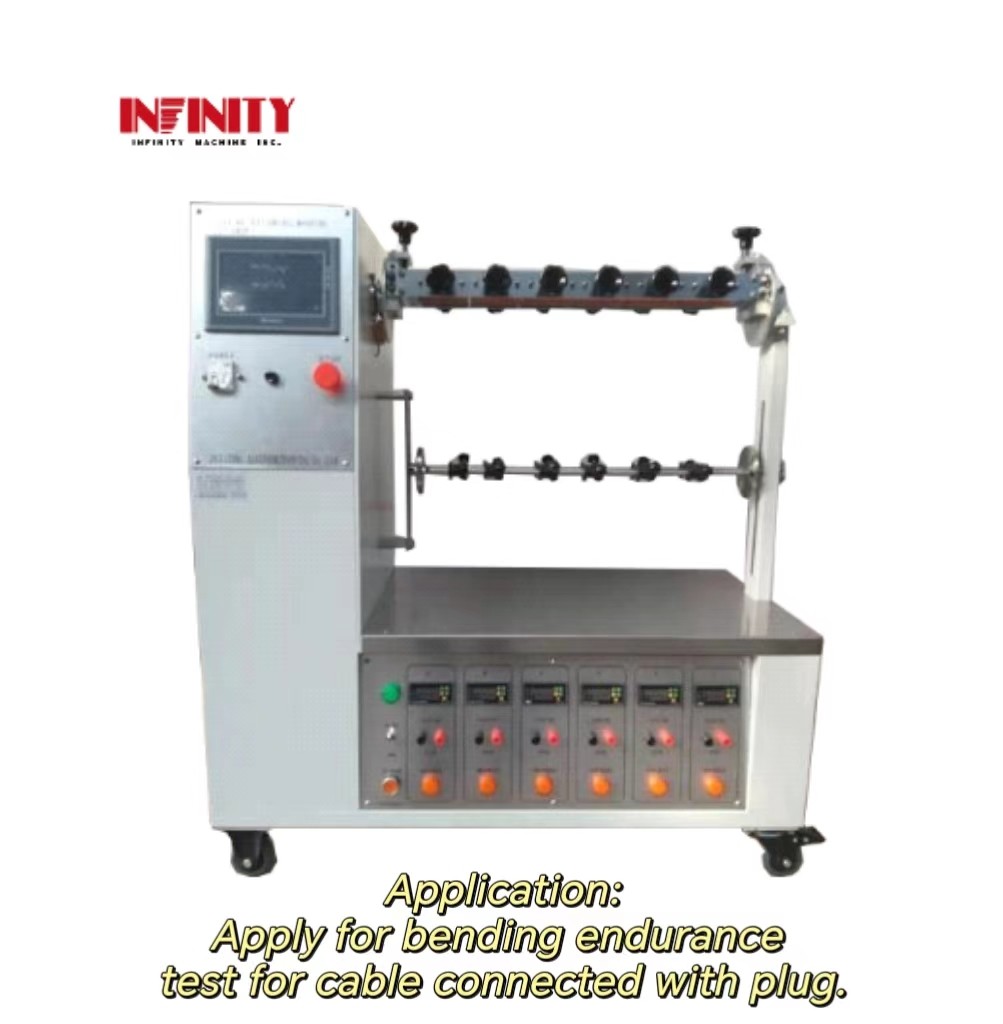

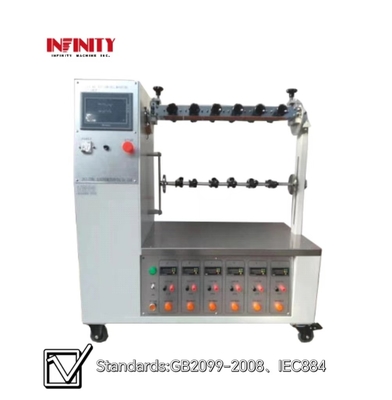

Appearance:
