Accurate Durable High-speed Button Testing Machine For Electronic Products Test

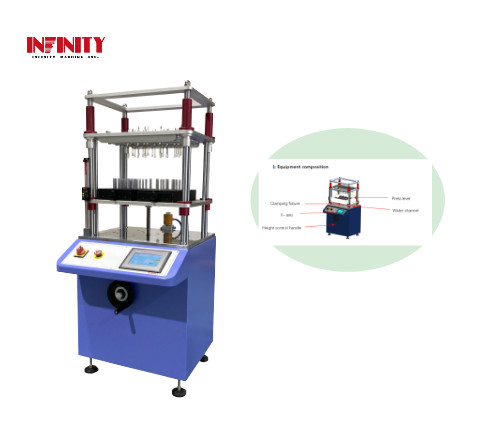

                                              High-speed Button Testing Machine

                                                                               Model Number :IN-3302

Application:

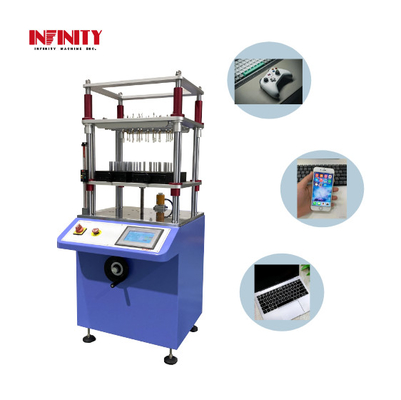

The device is used for computer keyboard Keyboard, Note-book keyboard, mobile phone, calculator, e-book, electronic dictionary, game controller, remote control and other electronic products.

Features:

1.The Japanese Panasonic was used^®Seromotor + SHIMPO^®Planetary speed reducer drive, low noise, durable use;

2.Using the load adjusting probe hitting button, and equipped with a special probe load correcting table and electronic weight correcting the load adjusting probe output, the striking force can be accurately controlled and the mechanical fatigue life of the key can be truly reflected.

3.The machine adopts Japan THK® high steel bearing steel as support, Japan THK® linear bearing transmission, durable use; The test table is made of aluminum Anodized treatment, wear-resistant surface texture, equipped with porous for keyboard clamping positioning;

4.Japan OMRON®7"TFT color touch screen +Mitsubishi® PLC control, English and Chinese operation interface, two test modes: continuous test mode -- rapid continuous test mode; Intermittent test mode -- to meet the test requirements of key press hold time, you can set the press hold time 0.1~99.99sec, rise (head off the button) residence time 0.1~99.99sec. Test times 0~99999999 times can be set, with power failure memory function, reach the set number of automatic stop. Test speed: 60~360 times /min in continuous test mode, 5~100 times /min in intermittent test mode.

5.Using high rigidity guide groove, can be moved back and forth, the measuring head can be moved left and right, basically can measure any keys.

6.Built-in force sensor, can real-time test head pressure, more accurate and convenient.



Specification parameters:



Project	Specifications
Test the trip	10mm
Press head diameter	6 or 8mm (Shaw hardness 65, black conductive silicone head, spherical contact surface)
Pressure rod A	750gf (10 sets)
Pressure rod B	1500gf (10 sets)
Pressure rod C	3000 gf (10 sets)
At the same time to hit the number of products	12
Electronic called capacity	5000gf precision level 1
Worktop lifting range	0~150mm hand lift, match the height ruler
Sample holding range	460x320mm
The installation scope of head measurement	460x320mm
Keep the pressure down for time	0.1 to 99.99 seconds (setting is available)
Rising stay time	0.1 to 99.99 seconds (setting is available)
Cycle number setting	0~99999999 times (setting)
Test speed	Continuous test mode 60~360 times / min Continuous test mode 5~100 times / min
Test pattern	Continuous test mode, intermittent test mode
Fittings of a machine	30 load adjustment measuring heads (can be optional), 10fixed measuring heads (can be optional), load adjustment table (standard), electronic weighing (5000 gf) standard
Volume	W680x D7300 x H1300mm
Weight	About 215kg
Source	1∮,AC220V, 5A
