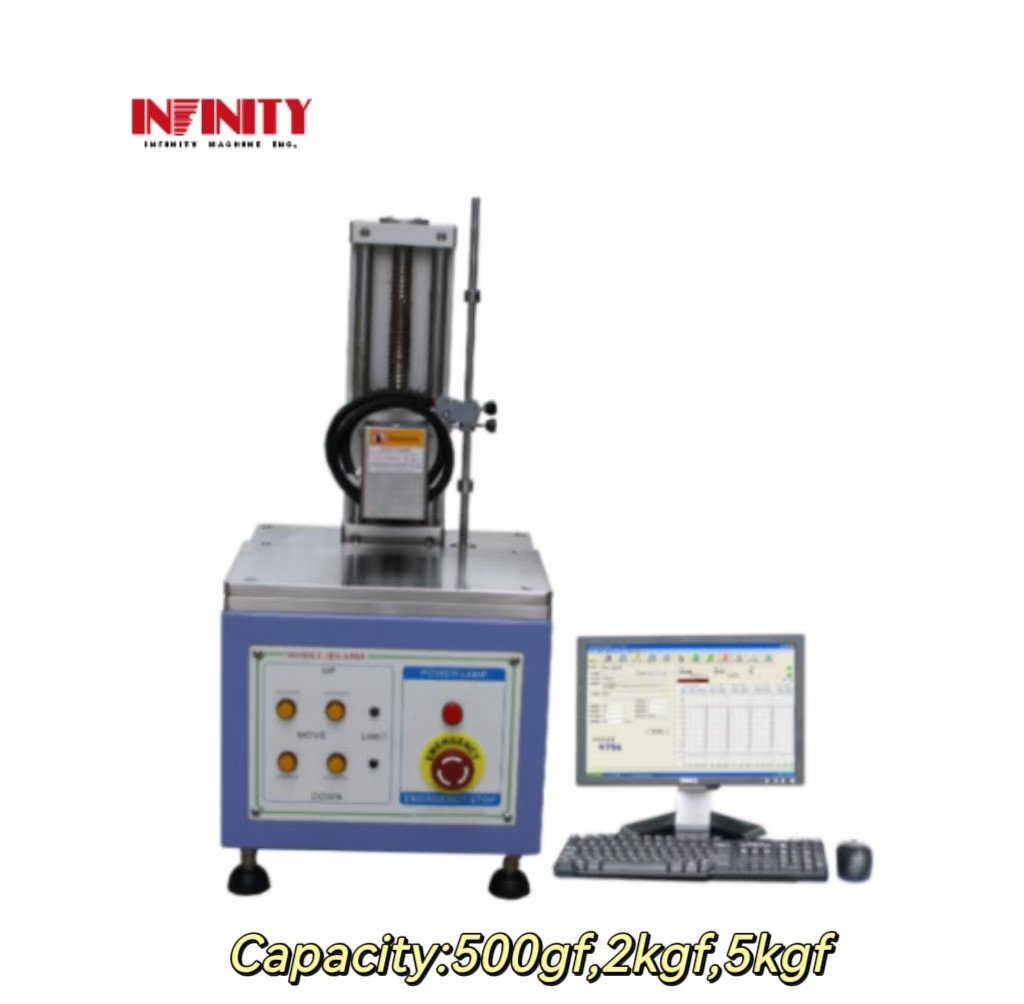

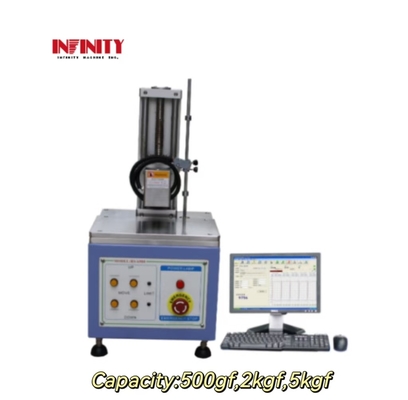

High Accuracy Load Cell Servo Control Keystroke / Switch Tester For Force Testing

                                             Servo Control Keystroke / Switch Tester

                                                                                  Model:IF6001A

Purpose:

This tester is used for pressing force test and rebounding force test of keyboard buttons, and the keystrokes, buttons of all kinds of electronic products.

Adopt high precision load cell and drive by servo motor, can get accurate force testing data.

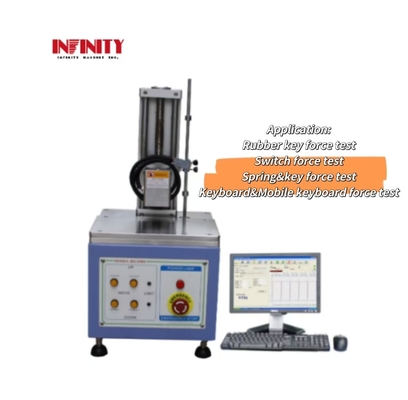

Application:

Rubber key force test

Spring & key force test

Keyboard & mobile keystroke force test

Switch force test

Tester Feature:

1.The software can create the force value testing report and the testing curves.

2.The values of peak force, return force, distance, TT, Click rate and dynamic Impedance data can directly display on the testing window.

3.FC, FC_D, FP,. FP_D, FM, FM_D, FR, FR_D, CC, CC_D, CR, TT, FM, FO, FO_D can be indicated after testing and past or failure can be judged by software according r setting the judging conditions.

4.Chinese / English display interface can be shifted by user; N, lb, gf, kg units can be shifted freely.

5.Testing methods can be set and reserved by user, and can create the life-time damping curve and the testing report which can be converted to be Excel and PDF file, or can be printed out directly from the original file.

Specification:

Button Force Testing:

1. Automatically inductive test method: no matter what height of the key is, it can be controlled by computer automatically through the test of the Button test method.

2. Can measure the force of the buttons and also do the fatigue test, it will generate the test graph and also can generate the life damping graph.

    3. The test graph for the button test:
