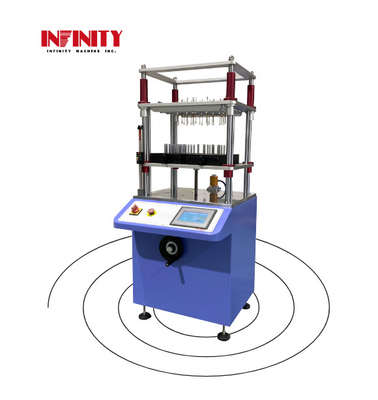

Customizable Rising Stay Time High-speed Button Testing Machine For Pressure Rod B 1500gf 10 Sets

Customizable Rising Stay Time High-speed Button Testing Machine for Pressure Rod B 1500gf 10 Sets

Product Description:

With a worktop lifting range of 0~150mm Hand Lift, Match The Height Ruler, this machine is designed to accommodate a wide range of sample sizes. The installation scope of head measurement is also impressive, measuring 460x320mm, making it suitable for a variety of testing scenarios.

One of the standout features of this machine is its ability to keep the pressure down for time, with a range of 0.1 to 99.99 seconds available for setting. This means that you can test the endurance of your keyboard buttons over an extended period, ensuring that they will perform reliably in real-world situations.

The press head diameter of this high-speed Button Cycling Tester comes in two sizes - 6 or 8mm - both with Shaw Hardness 65 and a black conductive silicone head with a spherical contact surface. This design ensures that your samples are tested under realistic conditions, giving you accurate results that you can rely on.

The sample holding range of 460x320mm is another impressive attribute of this machine. It allows you to test multiple samples at once, streamlining your testing process and saving you valuable time.

Overall, our Button Durability Testing Equipment is the perfect solution for manufacturers and designers who want to ensure that their keyboard buttons meet the highest standards of quality and performance. With its high-speed button pressing capabilities, accurate and reliable testing, and impressive sample holding range, this machine is an excellent investment for any company looking to create superior products.

Features:

• Product Name: High-speed Button Testing Machine
• Pressure rod C: 3000 Gf (10 Sets)
• Test the trip: 10mm
• Weight: About 215kg
• Electronic called capacity: 5000gf Precision Level 1
• Features:
  • High-speed Button Pressing Machine, High-speed Button Cycling Tester, High-speed Button Pressing Machine
  • Japanese Panasonic Was Used®Seromotor + SHIMPO®Planetary Speed Reducer Drive, Low Noise, Durable Use
  • Using The Load Adjusting Probe Hitting Button, And Equipped With A Special Probe Load Correcting Table And Electronic Weight Correcting The Load Adjusting Probe Output
  • The Striking Force Can Be Accurately Controlled And The Mechanical Fatigue Life Of The Key Can Be Truly Reflected
  • The Machine Adopts Japan THK® High Steel Bearing Steel As Support, Japan THK® Linear Bearing Transmission, Durable Use
  • The Test Table Is Made Of Aluminum Anodized Treatment, Wear-resistant Surface Texture, Equipped With Porous For Keyboard Clamping Positioning

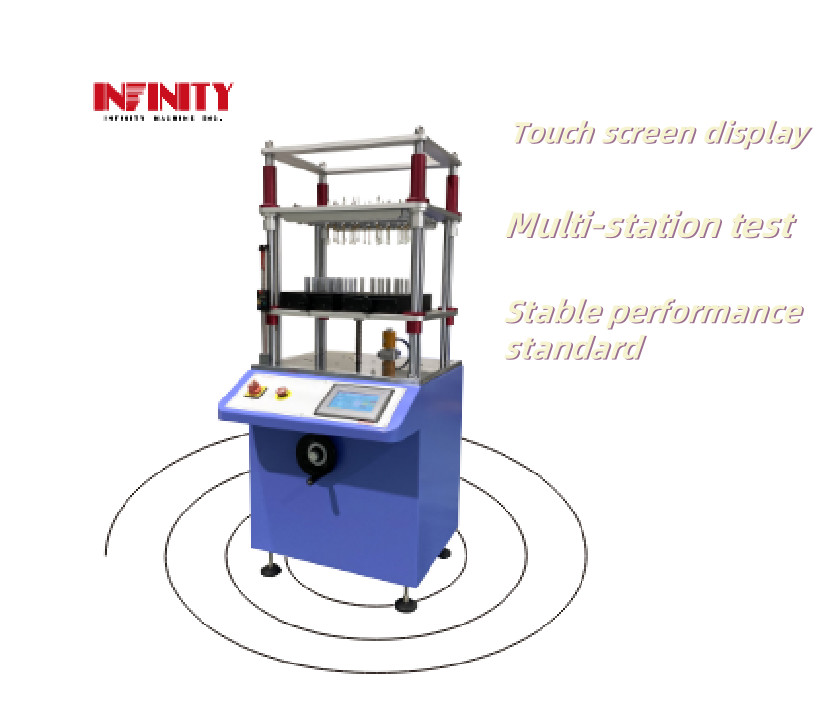

  • Japan OMRON®7"TFT Color Touch Screen +Mitsubishi® PLC Control, English And Chinese Operation Interface
  • Two Test Modes:
    • Continuous Test Mode -- Rapid Continuous Test Mode
    • Intermittent Test Mode -- To Meet The Test Requirements Of Key Press Hold Time
  • You Can Set The Press Hold Time 0.1~99.99sec, Rise (head Off The Button) Residence Time 0.1~99.99sec
  • Test Times 0~99999999 Times Can Be Set, With Power Failure Memory Function, Reach The Set Number Of Automatic Stop
  • Test Speed: 60~360 Times /min In Continuous Test Mode, 5~100 Times /min In Intermittent Test Mode
  • Using High Rigidity Guide Groove, Can Be Moved Back And Forth, The Measuring Head Can Be Moved Left And Right, Basically Can Measure Any Keys
  • Built-in Force Sensor, Can Real-time Test Head Pressure, More Accurate And Convenient

Technical Parameters:

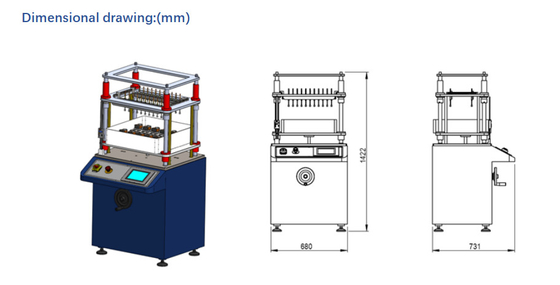

Product Attribute Technical Parameter Sample holding range 460x320mm Keep the pressure down for time 0.1 To 99.99 Seconds (setting Is Available) Pressure rod B 1500gf (10 Sets) Pressure rod A 750gf (10 Sets) At the same time to hit the number of products 12 Test pattern Continuous Test Mode, Intermittent Test Mode Volume W680x D7300 X H1300mm Rising stay time 0.1 To 99.99 Seconds (setting Is Available) Press head diameter 6 Or 8mm (Shaw Hardness 65, Black Conductive Silicone Head, Spherical Contact Surface) Application The Device Is Used For Computer Keyboard Keyboard, Note-book Keyboard, Mobile Phone, Calculator, E-book, Electronic Dictionary, Game Controller, Remote Control And Other Electronic Products.

Applications:

The IN-3302 Keyboard Button Tester is a reliable and efficient testing machine for keyboard button testing. It has a supply ability of 300 sets/month and weighs approximately 215kg. The product features a pressure rod A of 750gf (10 Sets) and can test 12 buttons simultaneously. The test speed of this durability testing equipment is between 60-360 times/min in continuous test mode and 5-100 times/min in continuous test mode. The test trip of the IN-3302 Keyboard Button Tester is 10mm.

This button durability testing equipment is suitable for a variety of product application occasions and scenarios. It can be used to test the durability of keyboard buttons for computer manufacturers, electronic product manufacturers, and other industries that require reliable button performance. The IN-3302 Keyboard Button Tester can also be used to test the durability of buttons for devices used in the automotive, medical, and aerospace industries. It is a versatile and easy-to-use machine that can help ensure the quality and durability of buttons for a wide range of products.

Customization:

The IN-3302 model comes with 10 sets of pressure rod C, with a capacity of 3000 Gf, and 10 sets of pressure rod A, with a capacity of 750gf. The test pattern includes both Continuous Test Mode and Intermittent Test Mode, making it an ideal choice for button pressing test equipment.



Support and Services:

The Keyboard Button Tester product comes with a user manual that provides detailed instructions on how to operate and troubleshoot the device. In addition, our technical support team is available 24/7 to assist with any issues or inquiries you may have.
We also offer repair and maintenance services for the Keyboard Button Tester. Our team of skilled technicians can diagnose and fix any problems with your device, ensuring it is working efficiently and effectively.



Packing and Shipping:

Product Packaging:
The Keyboard Button Tester product will be carefully packed in a sturdy cardboard box to ensure that it arrives in perfect condition. The box will be labeled with the product name, brand logo, and any relevant markings to ensure that it is easily identified.
Shipping:
Once your order has been processed, the Keyboard Button Tester product will be shipped to the address provided during checkout. We offer several shipping options, including standard and expedited shipping. The shipping cost will vary depending on your location and the shipping method selected.



FAQ:

Q: What is the brand of this Keyboard Button Tester?
A: The brand of this Keyboard Button Tester is Infinity Machine.
Q: What is the model number of this Keyboard Button Tester?
A: The model number of this Keyboard Button Tester is IN-3302.
Q: Where is this Keyboard Button Tester made?
A: This Keyboard Button Tester is made in China.
Q: What certifications does this Keyboard Button Tester have?
A: This Keyboard Button Tester has CE and ISO certifications.
Q: What are the payment terms for this Keyboard Button Tester?
A: The payment terms for this Keyboard Button Tester include TT, PayPal, Moneygram, and other negotiable options.
