| Place of Origin: | Made In China |
| Brand Name: | Infinity Machine |
| Certification: | CE ISO |
| Model Number: | IF6001A |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Clear sheet+sponge+wood carton |
| Delivery Time: | 20-30 days after order confirmed |
| Payment Terms: | TT PAYPAL Moneygram and so on |
| Supply Ability: | 200 sets / month |
| Application: | Rubber Key Force Test, Spring & Key Force Test , Keyboard & Mobile Keystroke Force Test, Switch Force Test | Model: | IF6001A |
|---|---|---|---|
| Min. Angle Display: | 0.001mm | Purpose: | This Tester Is Used For Pressing Force Test And Rebounding Force Test Of Keyboard Buttons, And The Keystrokes, Buttons Of All Kinds Of Electronic Products. Adopt High Precision Load Cell And Drive By Servo Motor, Can Get Accurate Force Testing Data. |
| Speed Accuracy: | ±0.5% | Product Name: | Servo Control Keystroke / Switch Tester |
| Main Unit Weight: | 25kg | Load Accuracy: | ±0.5% |

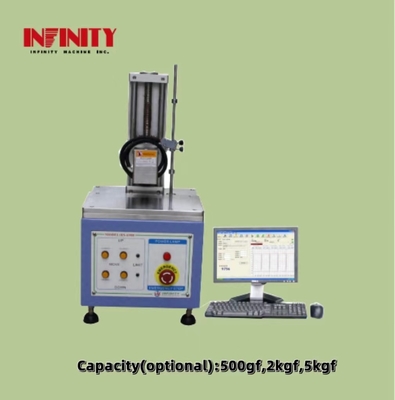

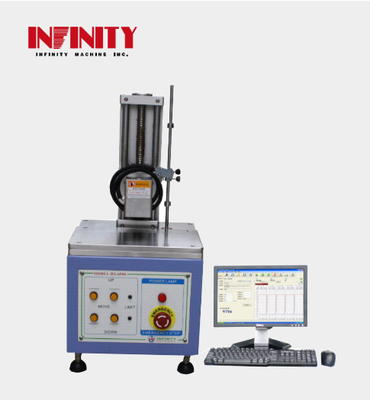

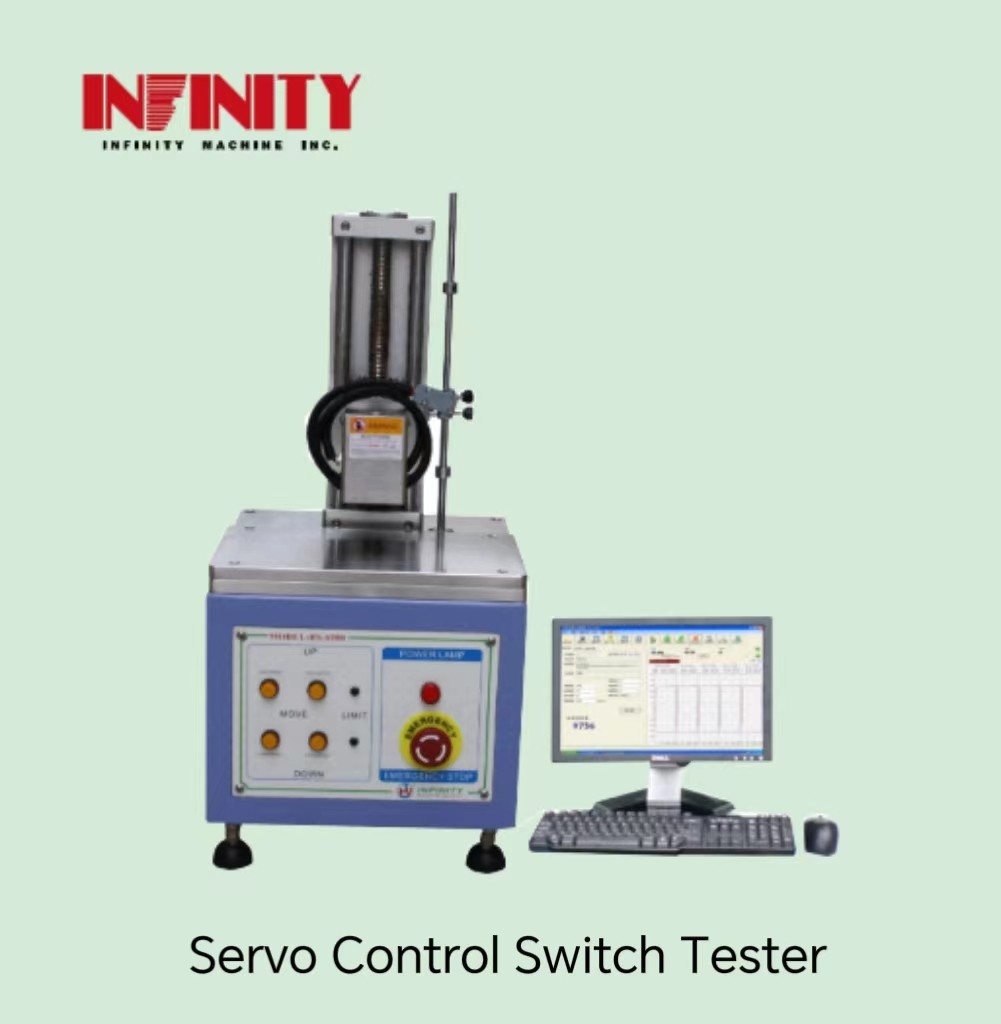

Power Supply AC220V 5A Keystroke Tester with Load Accuracy ±0.5%
One of the main benefits of this machine is its ability to provide accurate force testing data. It is equipped with a high precision load cell and driven by a servo motor, which ensures that you get reliable and consistent results every time. Whether you are testing the pressing force and rebounding force of keyboard buttons or the keystrokes and buttons of various electronic products, this tester is up to the task.
In terms of dimensions, the main unit measures 300x270x500mm and weighs 25kg. This makes it a compact and portable solution that can be easily transported between different locations. The machine is also easy to operate, with a user-friendly interface that allows you to quickly and easily set up your tests and view the results.
Whether you are a researcher, manufacturer, or quality control specialist, the Keystroke Tester is an essential tool for any organization that needs to perform force testing. With its versatility, accuracy, and ease of use, it is the perfect choice for those in need of a reliable switch tester, servo switch test equipment, or any other type of force testing.
| Product Name: | Servo Control Keystroke / Switch Tester |
| Tester Feature: | The Software Can Create The Force Value Testing Report And The Testing Curves. The Values Of Peak Force, Return Force, Distance, TT, Click Rate And Dynamic Impedance Data Can Directly Display On The Testing Window. FC, FC_D, FP,. FP_D, FM, FM_D, FR, FR_D, CC, CC_D, CR, TT, FM, FO, FO_D Can Be Indicated After Testing And Past Or Failure Can Be Judged By Software According R Setting The Judging Conditions. Chinese / English Display Interface Can Be Shifted By User; N, Lb, Gf, Kg Units Can Be Shifted Freely. Testing Methods Can Be Set And Reserved By User, And Can Create The Life-time Damping Curve And The Testing Report Which Can Be Converted To Be Excel And PDF File, Or Can Be Printed Out Directly From The Original File. |
| Load Accuracy: | ±0.5% |
| Min. Load Display: | 0.01gf |
| Min. Angle Display: | 0.001mm |
| Test Speed: | 0~200mm/min |

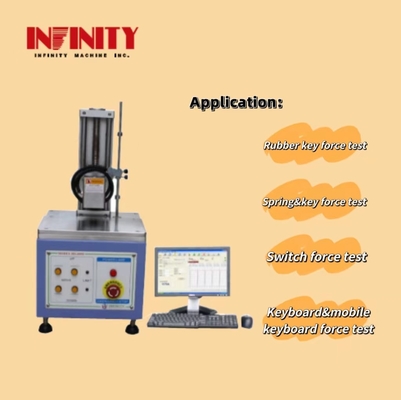

| Application: | Rubber Key Force Test, Spring & Key Force Test, Keyboard & Mobile Keystroke Force Test, Switch Force Test |
| Main Unit Dimension (WxDxH): | 300x270x500mm |
| Power Supply: | Power Supply AC220V 5A Or Specified By User |

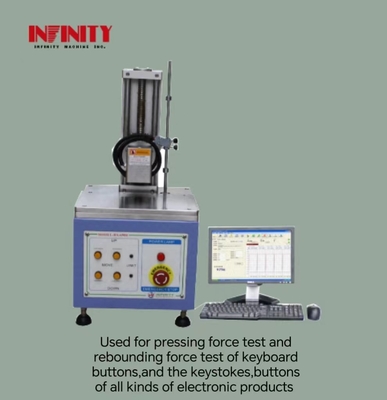

| Purpose: | This Tester Is Used For Pressing Force Test And Rebounding Force Test Of Keyboard Buttons, And The Keystrokes, Buttons Of All Kinds Of Electronic Products. Adopt High Precision Load Cell And Drive By Servo Motor, Can Get Accurate Force Testing Data. |
The Infinity Machine IF6001A Keystroke Tester is a versatile and reliable servo switch test equipment used for pressing force test and rebounding force test of keyboard buttons and keystrokes. This precise tester is designed to test the keystrokes and buttons of all kinds of electronic products. The tester is manufactured in China with CE and ISO certification, ensuring the highest quality standards are met. The minimum order quantity is 1, and the price is negotiable, making it an accessible option for both small and large businesses.
The Infinity Machine IF6001A Keystroke Tester is supplied with a power supply AC220V 5A or as specified by the user. The product is designed with high precision load cell and driven by a servo motor, which can get accurate force testing data. The unit can be switched between Kgf, N, Lb, and Gf, making it perfect for different testing scenarios.
With a speed accuracy of ±0.5%, the Infinity Machine IF6001A Keystroke Tester is perfect for various applications and scenarios. The tester is ideal for testing the keystrokes and buttons of electronic products, including keyboards, game controllers, and remote controls, among others. The tester is designed to withstand rigorous use and is capable of performing multiple tests in quick succession without compromising on accuracy and precision.
The Infinity Machine IF6001A Keystroke Tester comes with clear sheet+sponge+wood carton packaging, ensuring safe and secure transportation. The delivery time for the product is 20-30 days after order confirmation, and payment can be made using TT PAYPAL Moneygram, among other payment methods. The supply ability of the product is 200 sets per month, making it a readily available option for businesses.
Overall, the Infinity Machine IF6001A Keystroke Tester is a reliable and versatile servo switch test equipment that offers accurate and precise testing results. Its ability to test different types of electronic products makes it a must-have for businesses looking to ensure the quality and durability of their products.
Button Force Testing:
1. Automatically inductive test method: no matter what height of the key is, it can be controlled by computer automatically through the test of the Button test method.
2. Can measure the force of the buttons and also do the fatigue test, it will generate the test graph and also can generate the life damping graph.
3. The test graph for the button test:
Product Customization Services:
Brand Name: Infinity Machine
Model Number: IF6001A
Place of Origin: Made In China
Certification: CE ISO
Minimum Order Quantity: 1
Price: Negotiate
Packaging Details: Clear sheet+sponge+wood carton
Delivery Time: 20-30 days after order confirmed
Payment Terms: TT PAYPAL Moneygram and so on
Supply Ability: 200 sets / month
Model: IF6001A
Purpose: This Tester Is Used For Pressing Force Test And Rebounding Force Test Of Keyboard Buttons, And The Keystrokes, Buttons Of All Kinds Of Electronic Products. Adopt High Precision Load Cell And Drive By Servo Motor, Can Get Accurate Force Testing Data.
Test stroke: 100mm
Tester Feature: The Software Can Create The Force Value Testing Report And The Testing Curves. The Values Of Peak Force, Return Force, Distance, TT, Click Rate And Dynamic Impedance Data Can Directly Display On The Testing Window. FC, FC_D, FP,. FP_D, FM, FM_D, FR, FR_D, CC, CC_D, CR, TT, FM, FO, FO_D Can Be Indicated After Testing And Past Or Failure Can Be Judged By Software According R Setting The Judging Conditions. Chinese / English Display Interface Can Be Shifted By User; N, Lb, Gf, Kg Units Can Be Shifted Freely. Testing Methods Can Be Set And Reserved By User, And Can Create The Life-time Damping Curve And The Testing Report Which Can Be Converted To Be Excel And PDF File, Or Can Be Printed Out Directly From The Original File.
Main unit dimension (WxDxH): 300x270x500mm
Keywords: Keystroke Tester, Servo Switch Test Equipment
The Universal Testing Machine product includes the following technical support and services:
- Installation and setup assistance
- User training and support
- Calibration and maintenance services
- Repair and replacement parts
- Software updates and upgrades
- Consultation on testing standards and methods
Product Packaging:
Shipping:
Frequently Asked Questions for Infinity Machine IF6001A Keystroke Tester:
Q: What is the place of origin of the IF6001A Keystroke Tester?
A: The IF6001A Keystroke Tester is made in China.
Q: What certifications does the IF6001A Keystroke Tester have?
A: The IF6001A Keystroke Tester has CE and ISO certifications.
Q: What is the minimum order quantity for the IF6001A Keystroke Tester?
A: The minimum order quantity for the IF6001A Keystroke Tester is 1 set.
Q: What is the packaging of the IF6001A Keystroke Tester?
A: The IF6001A Keystroke Tester is packaged in clear sheet+sponge+wood carton.
Q: What is the delivery time for the IF6001A Keystroke Tester?
A: The delivery time for the IF6001A Keystroke Tester is 20-30 days after order confirmed.
Q: What payment terms are accepted for the IF6001A Keystroke Tester?
A: Payment terms accepted for the IF6001A Keystroke Tester include TT, PAYPAL, Moneygram, and so on.
Q: What is the supply ability for the IF6001A Keystroke Tester?
A: The supply ability for the IF6001A Keystroke Tester is 200 sets per month.
