| Place of Origin: | Made In China |
| Brand Name: | Infinity Machine |
| Certification: | CE ISO |
| Model Number: | IF6001A |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Clear sheet+sponge+wood carton |
| Delivery Time: | 20-30 days after order confirmed |
| Payment Terms: | TT PAYPAL Moneygram and so on |
| Supply Ability: | 300 sets / month |
| Main Unit Dimension (WxDxH): | 300x270x500mm | Unit (switchable): | Unit (switchable) |
|---|---|---|---|
| Test Speed: | 0~200mm/min | Speed Accuracy: | ±0.5% |
| Product Name: | Servo Control Keystoke / Switch Tester | Load Accuracy: | ±0.5% |
| Motor: | AC Servo Motor | ||
| Highlight: | Rubber Key Force Keyboard Button Tester,Keyboard Button Tester 5kgf Capacity |
||

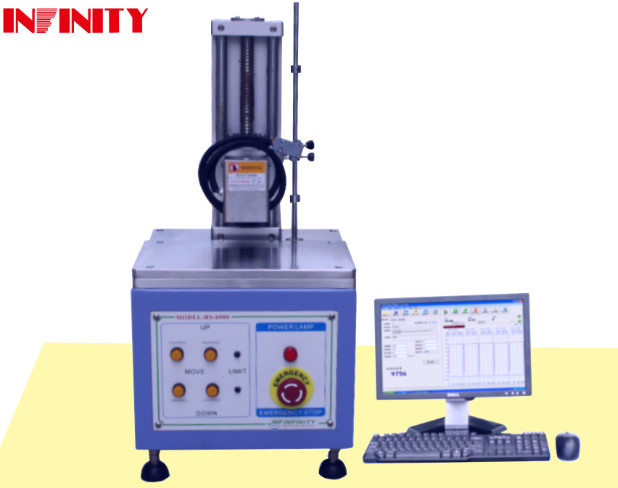

Rubber Key Force Test Keyboard Button Tester With 5kgf Capacity For Keystoke / Switch Force Test IF6001A
The Keyboard Servo Control Keystoke / Switch Button Force Test Machine is a high precision spring and key force tester designed for measuring the force of keyboard buttons and conducting fatigue tests. It is equipped with a high precision load cell and driven by a servo motor, allowing for accurate force testing data.
With the Keyboard Button Tester, users can easily and efficiently test the pressing force and rebounding force of keyboard buttons, as well as the keystroke and buttons of various electronic products. It is a versatile and essential tool for quality control and research and development in the electronics industry.
|
|---|
| Technical Parameters | Description |
|---|---|
| Product Name |
Servo Control Keystoke / Switch Button Force Test Machine |
| Application | Keyboard & mobilephone keystoke force test |
| Load Accuracy | ±0.5% |
| Feature | The Software Can Create The Force Value Testing Report And The Testing Curves. The Values Of Peak Force, Return Force, Distance, TT, Click Rate And Dynamic Impedance Data Can Directly Display On The Testing Window. |
| Motor | AC Servo Motor |
| Power Supply | AC220V 5A or specified by user |
| Min. Angle Display | 0.001mm |
| Test Speed | 0~200mm/min |
| Capacity (optional) | 500gf, 2kgf, 5kgf |
| Test Stroke | 100mm |
| Min. Load Display | 0.01gf |
The Infinity Machine Keyboard Servo Control Keystoke / Switch Button Force Test Machine is a high-quality, precision instrument designed to accurately measure the force and performance of keyboard buttons, switches, and springs. With its advanced technology and precise control, this tester is perfect for a variety of applications such as rubber key force testing, spring and key force testing, keyboard and mobile keystroke force testing, and switch force testing.
The Infinity Machine Keyboard Servo Control Keystoke / Switch Button Force Test Machine is perfect for a variety of applications, including:
The Keyboard Button Tester is equipped with advanced technology and features, including:
Model Number: IF6001A
Place of Origin: Made In China
Certification: CE ISO
Minimum Order Quantity: 1
Price: Negotiate
Packaging Details: Clear sheet+sponge+wood carton
Delivery Time: 20-30 days after order confirmed
Payment Terms: TT PAYPAL Moneygram and so on
Supply Ability: 300 sets / month
1. Automatically Inductive Test Method: No Matter What Height Of The Key Is, It Can Be Controlled By Computer Automatically Through The Test Of The Button Test Method.
2. Can Measure The Force Of The Buttons And Also Do The Fatigue Test, It Will Generate The Test Graph And Also Can Generate The Life Damping Graph.

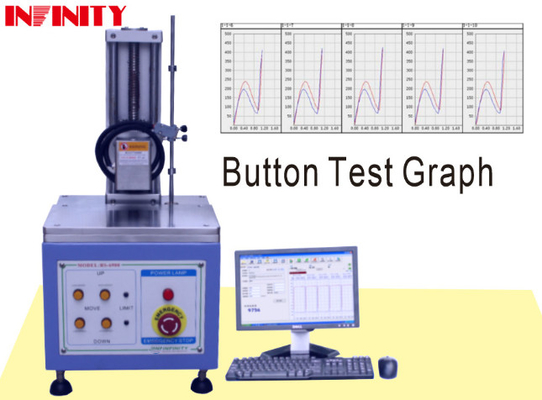

3. The Test Graph For The Button Test:
Min. angle display: 0.001mm
Motor: AC Servo Motor
Test stroke: 100mm
Unit (switchable): Unit (switchable)
Our Keyboard Servo Control Keystoke / Switch Button Force Test Machine, Model Number IF6001A, is a high quality and reliable tool for testing the force of keyboard buttons. Made in China and certified with CE and ISO, this product is designed to meet the highest standards of quality and performance.
As a leading supplier and manufacturer of rubber key force testers, Infinity Machine offers the best equipment for accurately testing the force of keyboard buttons. Our Keyboard Button Tester is equipped with advanced features such as Servo Control Keystoke and Switch Tester, which allows for automatic and accurate testing of buttons at any height.
In addition, our Keyboard Button Tester can also perform fatigue tests and generate test graphs and life damping graphs for further analysis. The unit can be switched to display results in different units for convenience.
Order now and experience the precision and efficiency of our Keyboard Button Tester. We offer competitive prices and flexible payment options such as TT, PayPal, and Moneygram. With a supply ability of 300 sets per month, we guarantee timely delivery within 20-30 days after order confirmation. Contact us now to negotiate the best deal for your business!
At Infinity Machine, we take pride in being a top supplier, manufacturer, and exporter of rubber key force testers. Our commitment to quality and customer satisfaction has made us a trusted name in the industry. Our Keyboard Button Tester, Model Number IF6001A, is just one of the many high-quality products we offer.
With our advanced technology, superior craftsmanship, and reliable customer service, we have established a strong presence in the global market. Our products have been exported to various countries and have received positive feedback from our clients.
Choose Infinity Machine as your partner in providing top-quality rubber key force testers. Contact us now for more information and to request a quote.
Servo Control Keystoke / Switch Button Force Test Machine
