| Place of Origin: | Made in China |
| Brand Name: | Infinity Machine |
| Certification: | CE, ISO |
| Model Number: | RS-8200 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export wooden case with operation manual and video inside. |
| Delivery Time: | Shipped in 15 days after payment |
| Payment Terms: | D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 sets per month |
| Standards: | ASTM D1630 | Specimen: | 25.4x25.4x6.35mm |
|---|---|---|---|
| Load: | 2265g, 3sets | Dia. Of Grinding Wheel: | ∮150mm |
| Rotation Speed: | 45 ± 5rpm | Dimension: | 760x500x600mm |
| Weight: | 100kg | Power: | AC220V 50Hz 3A Or Specified By User |
| Highlight: | martindale abrasion tester,din abrasion tester |
||

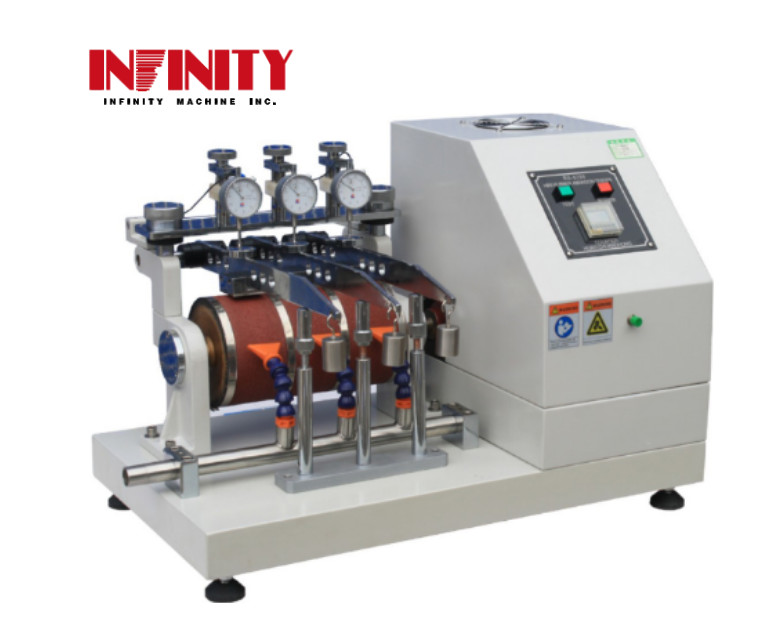

NBS Rubber Abrasion Testing Machine Volume Measurement ASTM D1630
Model: RS-8200
Purpose:
The tester applies for the abrasion volume measurement of the specimen under the rated load by grinding wheel.
Specification:
| Model | RS-8200 |
| Standard | ASTM D1630 |
| Specimen (WxDxH) | 25.4x25.4x6.35mm |
| Load | 2265g, 3sets |
| Dia. Of grinding wheel | ∮150mm |
| Rotation speed | 45 ± 5rpm |
| Grinding paper | 40# grit |
| Counter | LCD, 0~999,999 (can set) |
| Collector | 2kg/cm2 |
| Dimension (WxDxH) | 760x500x600mm |
| Weight | 100kg |
| Power | AC220V 50Hz 3A or specified by user |
