| Place of Origin: | Made In China |
| Brand Name: | Infinity Machine |
| Certification: | CE ISO |
| Model Number: | IZ1005 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Clear sheet+sponge+wood carton |
| Delivery Time: | 20-30 days after order confirmed |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200SET PER MONTH |
| Product Name: | Precision Friction Resistance Testing Machine | Model: | IZ1005 |
|---|---|---|---|
| Test Load: | 80~1000g | Test Table Size: | 290 X 290mm |
| Testing Frequency: | 1~999999 Times | Test Speed: | 10～60rpm (Adjustable) |
| Power: | Electronic | Warranty: | 1 Year |
| Highlight: | Precision Abrasion Resistance Testing Machine,80~1000g Abrasion Resistance Testing Machine,LCD Abrasion Resistance Testing Machine |
||

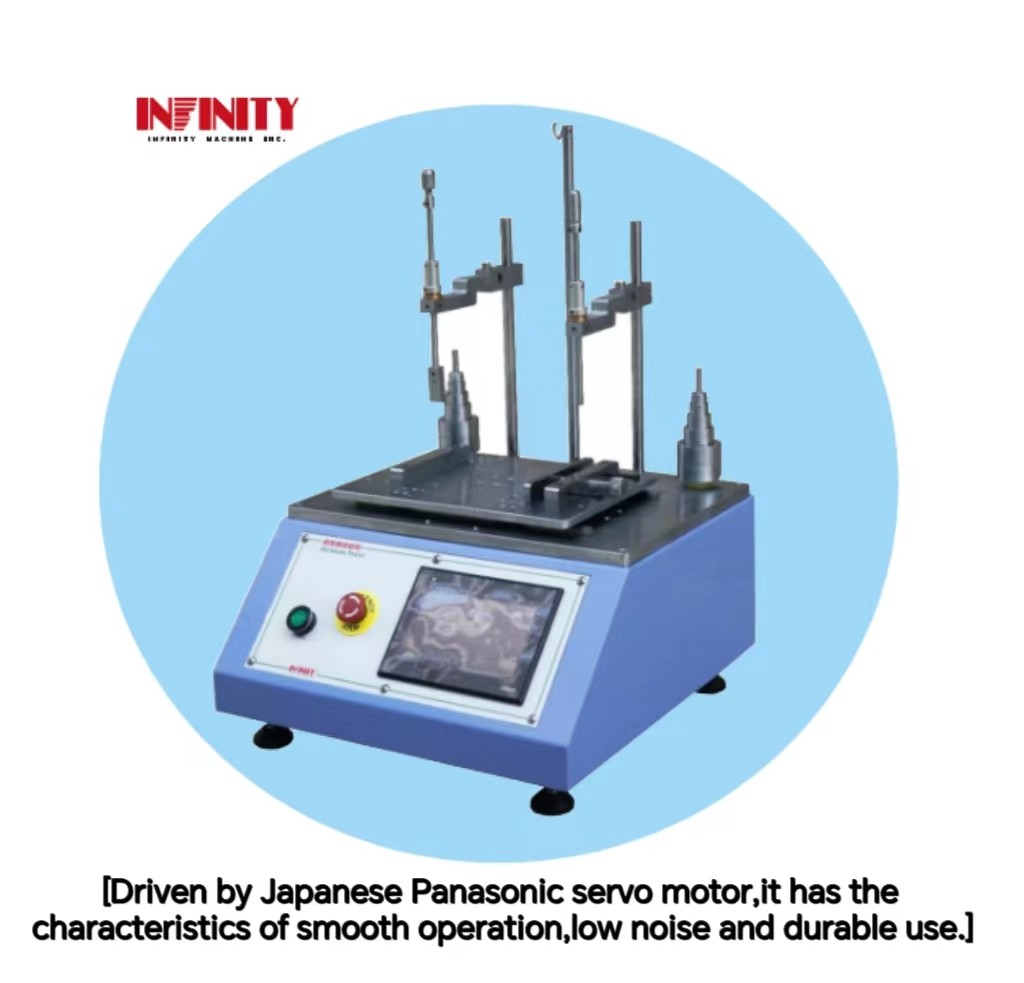

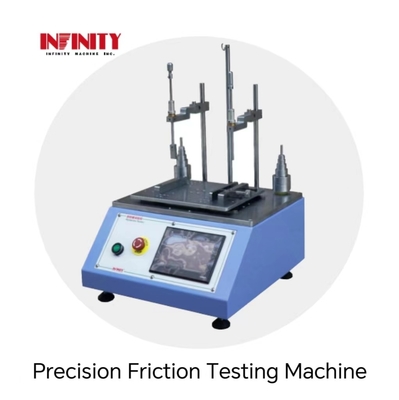

LCD Touch Screen Precision Abrasion Resistance Testing Machine Test Load 80~1000g
Model Number:IZ1005
Application:
It is widely used in friction life testing of oil spray, silk screen printing and other printed matter on the surface of mobile phones, tablets, laptops, plastics, wires, electrical appliances, leather and other products.
Features:
Technical Parameters:
|
Project |
Specification |
|
Test load |
80~1000g |
|
Test table size |
290x290mm |
|
Maximum specimen size allowed |
260x200mm |
|
Standard weights |
10g,20g,50g,100g,200g with 2pcs for each weight, 500g with 4pcs |
|
Test medium |
Eraser (# 75215 Sanford, USA), Pencil (Mitsubishi 6B~9H, optional) Alcohol/cotton cloth |
|
Work plan |
2～50mm (Adjustable) |
|
Testing frequency |
1~999999 times |
|
Test speed |
10～60rpm (Adjustable) |
|
Machine size |
W490×D520×H680mm |
|
Machine weight |
45kg |
|
Power supply |
AC220V 50/60 Hz |
Parts List:
1.Test base rod: self-weight 80gf, including: 1pcs round eraser, 1pcs square eraser, 1pcs alcohol, 1pcs 45-degree pencil.
2.Test fixtures: round erasersquare eraseralcoholoblique 45 degree pencil test fixture 1pcs each.
3.Weights: 10, 20, 50, 100, 200 with 2pcs for each, 500g with 4pcs .
4.Test table fixed sample fixture 1pcs.
5.1 set of wine bottle and hanging rod/syringe/catheter/cotton cloth.
Software interface:
Support and Services:
Implementation Assistance,Installation,Training,Calibration,Preventive Maintencance,Technical Support,Upgrade,Repair & Parts.
Product Packaging:
The Abrasion Testing Machine will be securely packaged in a wooden crate to prevent any damage during transportation. The crate will be sealed and labeled with the product information for easy identification.
