| Place of Origin: | Made in China |
| Brand Name: | Infinity Machine |
| Certification: | CE, ISO |
| Model Number: | RS-8202 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export wooden case with operation manual and video inside. |
| Delivery Time: | Shipped in 15 days after payment |
| Payment Terms: | D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 sets per month |
| Standards: | BS-903, GB-1689, JIS-K6264, CNS-743 | Grinding Wheel: | Out ∮150mm, 38mm(W) |
|---|---|---|---|
| Sample Inclinative Range: | 0°~35° (adjustable) | Sample Shaft Speed: | 85±5 Or 250±5rpm |
| Load: | 45N (2Lbf,8Lbf 1 Pcs Each) | Dimension: | 600x450x400mm |
| Weight: | 60kg | Power: | AC220V 3A Or Specified By User |
| Highlight: | martindale abrasion tester,rotary abrasion tester |
||

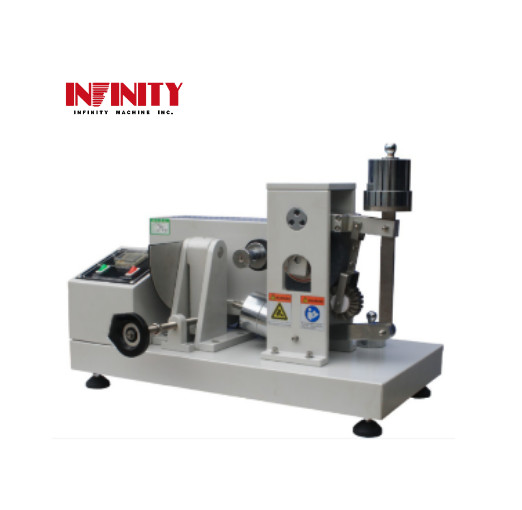

45 N Load Abrasion Testing Machine Abrasive Consumption Test JIS-K6264
Model: RS-8202
Purpose:
This tester is designed to use together with a special balance for testing the abrasive consumption for the rubber products such as sole, tire, belt of tank and etc.
Specification:
| Model | RS-8202 |
| Standard | BS-903, GB-1689, JIS-K6264, CNS-743 |
| Grinding wheel | Out ∮150mm, 38mm(W) |
| Sample inclinative range | 0°~35° (adjustable) |
| Sample shaft speed | 85±5 or 250±5rpm |
| Load | 45N(2Lbf,8Lbf 1 pcs each) |
| Counter | LCD, 0~999999 (can set) |
| Dimension (WxDxH) | 600x450x400mm |
| Weight | 60kg |
| Power | AC220V 3A or specified by user |
