Force Accuracy ±0.3% Dual Station Power Adapter Swing Force Testing Machine

Force Accuracy ±0.3% Dual Station Power Adapter Swing Force Testing Machine

  • Force Accuracy ±0.3% Dual Station Power Adapter Swing Force Testing Machine
  • Force Accuracy ±0.3% Dual Station Power Adapter Swing Force Testing Machine
  • Force Accuracy ±0.3% Dual Station Power Adapter Swing Force Testing Machine
Force Accuracy ±0.3% Dual Station Power Adapter Swing Force Testing Machine
Product Details:
Place of Origin: Made In China
Brand Name: Infinity Machine
Certification: CE ISO
Model Number: IF6112
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiate
Packaging Details: Clear sheet+sponge+wood carton
Delivery Time: 20-30 days after order confirmed
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200SETS PER MONTH
Contact Now
Detailed Product Description
Product Name: Dual-station Swing Force Testing Machine Model: IF6112
Test Station: 2 Slots Force Sensor Capacity: 0.5KN（50Kgf）
Force Accuracy: ±0.3% Maximum Test Stroke: 150mm
Power: Electronic Warranty: 1 Year
Highlight:

Power Adapter Swing Force Testing Machine

,

Dual Station Force Testing Machine

,

high Accuracy Force Testing Machine

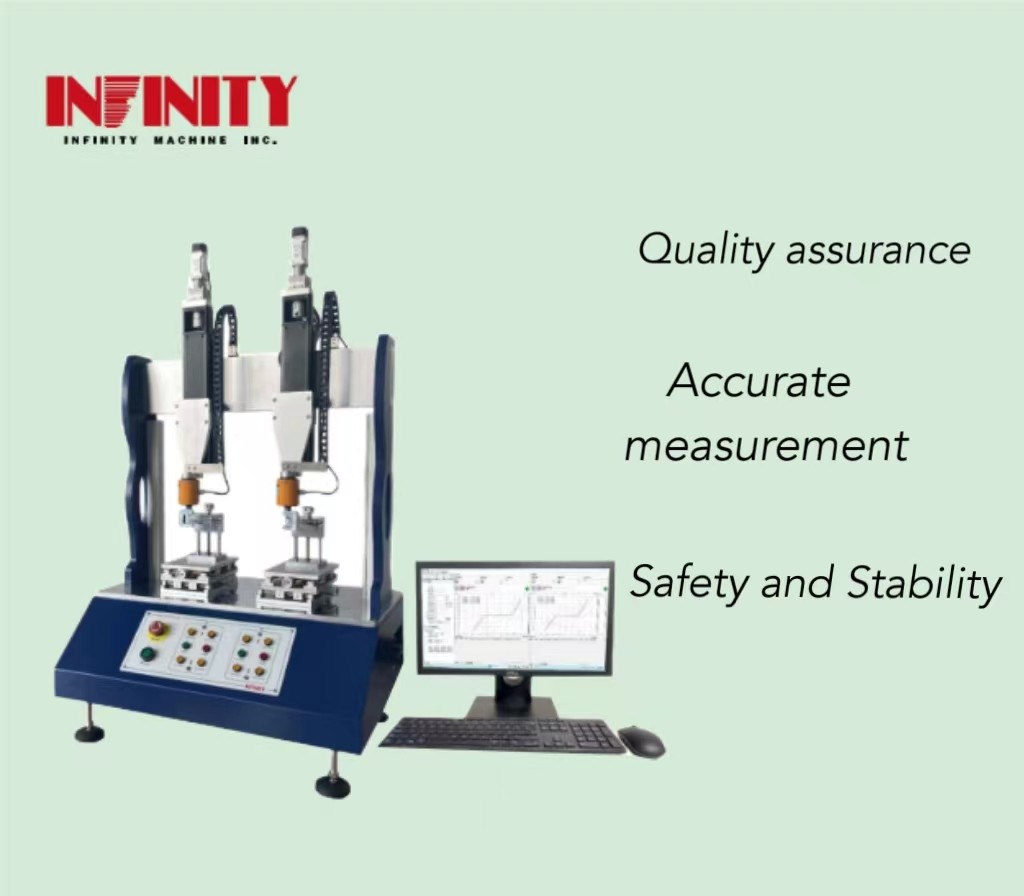

                  Force Accuracy ±0.3% Dual-station Power Adapter Swing Force Testing Machine

                                                                                               Model:IF6112





Application:

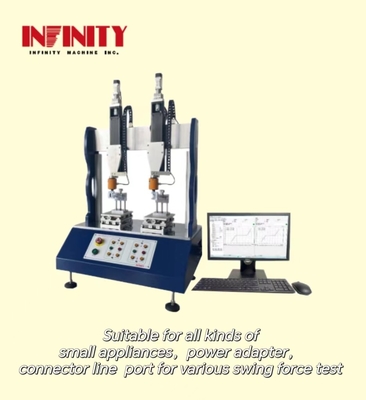

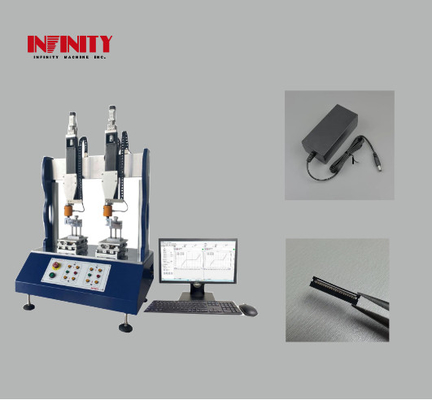

The equipment is suitable for all kinds of small appliances, power adapter, connector line port for various swing force test, the port after the applied force after multiple swing test results, so as to evaluate whether the product meets the manufacturing requirements.

Force Accuracy ±0.3% Dual Station Power Adapter Swing Force Testing Machine 0

Features:

  • Real-time display of the current force value and displacement changes, can be displayed: force-displacement (kgf-mm), or force-time (kgf-time) ,curve diagram.
  • Language has simplified / traditional / English three operation interface can be switched, the force value unit has N, Lb, gf, kgf can be switched,suitable for global customers.
  • Open force value protection function, a protection value is set according to the conventional test force, when operation or point movement will automatically stop moving, to reduce damage to the equipment and precision samples.
  • The test method management logic is clear, and the new method provides the correctness check of the parameters and provides the error information. The test data is stored in a local database for easy access and query.
  • The header content of the report can be modified at any time (both Chinese and English), and the report can be automatically generated without input. Data report, curve report can be printed, and exported as Word, Exce l, PDF and other format documents.
  • Meet the independent control and independent testing of 2 groups of products.



Specification:



      Items

    Specifications

Test station

2Slots

   Force sensor capacity

    0.5KN(50Kgf)

        Force accuracy

±0.3%

    Displacement measurement accuracy

        ±0.05mm
    Degree of displacement decomposition

         0.001mm
               Maximum test stroke

          150mm
                 Test speed range

  0.1~1200mm/min
               Test speed accuracy

 ±0.5%
              Machine size (WxDxH)

   800x560x1258mm
                         Weight

About105kg
                    Power supply

    AC220V 3A 50Hz




Bidirectional swing force curve diagram: Force-displacement (kgf-mm)

Force Accuracy ±0.3% Dual Station Power Adapter Swing Force Testing Machine 1



Dimensional drawing:(mm)

Force Accuracy ±0.3% Dual Station Power Adapter Swing Force Testing Machine 2



Support and Services:

Implementation Assistance,Installation,Training,Calibration,Preventive Maintencance,Technical Support,Upgrade,Repair & Parts.



Product Packaging:

The Force Testing Machine will be securely packaged in a wooden crate to prevent any damage during transportation. The crate will be sealed and labeled with the product information for easy identification.
