Computer Control Mobile Phone USB Dual Station Insertion And Extraction Force Tester

Computer Control Mobile Phone USB Dual Station Insertion And Extraction Force Tester

  • Computer Control Mobile Phone USB Dual Station Insertion And Extraction Force Tester
  • Computer Control Mobile Phone USB Dual Station Insertion And Extraction Force Tester
Computer Control Mobile Phone USB Dual Station Insertion And Extraction Force Tester
Product Details:
Place of Origin: Made In China
Brand Name: Infinity Machine
Certification: CE ISO
Model Number: IF5112
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiate
Packaging Details: Clear sheet+sponge+wood carton
Delivery Time: 20-30 days after order confirmed
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200SETS PER MONTH
Contact Now
Detailed Product Description
Product Name: Dual Station Insertion And Extraction Force Testing Machine Application: This Equipment Is Used To Test The Plug-in And Pull-out Force And Pressing Force Of USB Interfaces Of Various Electronic Products.
Feature: Real-time Display Of Changes In Current Force Value And Displacement, Which Can Display: Force-displacement (kgf-mm) Or Force-time (kgf-time) Curves. Model: IF5112

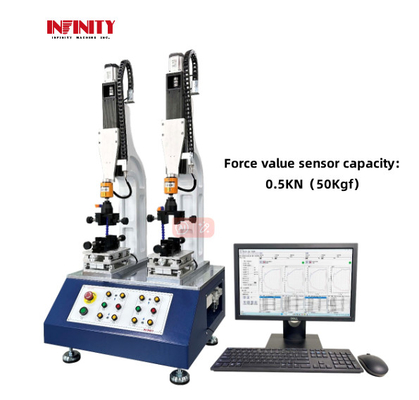

Test Station: 2 Slots Force Value Sensor Capacity: 0.5KN（50Kgf）
Force Accuracy: ±0.3% Maximum Test Travel: 150mm
Power: Electronic Warranty: 1 Year
Highlight:

Computer Control Insertion Force Tester

,

USB Dual Station Insertion Force Tester

,

Mobile Phone Insertion Force Tester

Computer Control Mobile Phone USB Dual Station Insertion and Extraction Force Tester

Model:IF5112





Application:

This equipment is used to test the plug-in and pull-out force and pressing force of USB interfaces of various electronic products. The results of the friction force and applied force pressing test during plug-in and pull-out of the interface are obtained to evaluate whether the product meets the manufacturing requirements.

Computer Control Mobile Phone USB Dual Station Insertion And Extraction Force Tester 0

Features:

  • Real-time display of changes in current force value and displacement, which can display: force-displacement (kgf-mm) or force-time (kgf-time)  curves.
  • The operating interface has three switchable languages: Simplified Chinese/Traditional Chinese/English, and the force value units are switchable in N, Lb, gf, and kgf, which is suitable for global customers.
  • The open force value protection function sets a protection value based on the conventional testing force.
  • When the value is exceeded during operation or inching, the movement will automatically stop to reduce damage to equipment and precision samples.
  • The test method management logic is clear, and the correctness of parameters is checked and error information is provided when creating a new method. Test data is stored in a local database for easy access and query.
  • The report header content can be modified at any time (in both Chinese and English), the report is automatically generated, no input is required,data reports and curve reports can be printed, and can be exported to Word, Excel, PDF and other format documents.

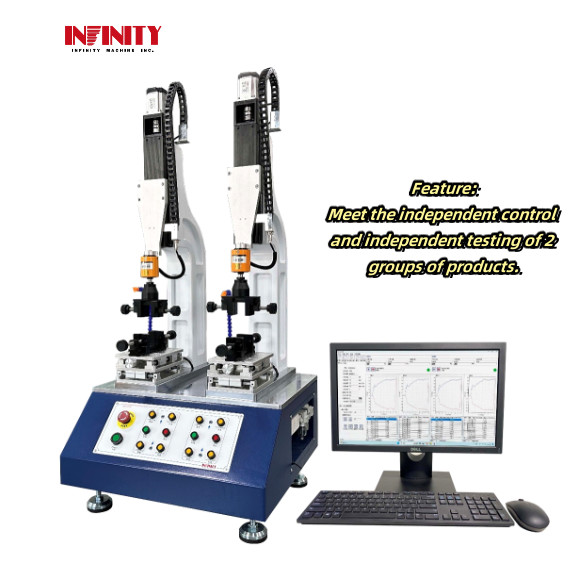

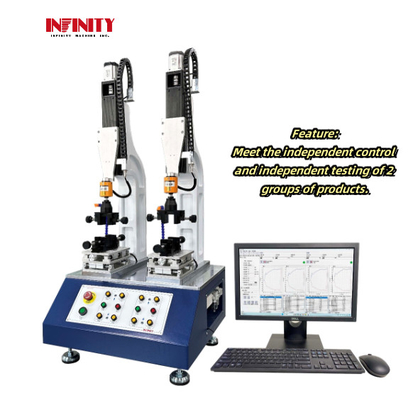

  • Meet the independent control and independent testing of two groups of products.

Specification Parameter

         Items

Specifications

     Test station

       2Slots

     Force value sensor capacity

 0.5KN(50Kgf)

  Force accuracy

        ±0.3%

Displacement measurement accuracy

     ±0.05mm

         Displacement resolution

     0.001mm

           Maximum test travel

      150mm

 Test speed range

         0.1~1200mm/min

        Test velocity accuracy

        ±0.5%

  Size (WxDxH)

       1426x618x1437mm

        Weight

  About 185kg

   Power supply

          AC220V 5A 50Hz


Insertion and withdrawal force curve: Force-displacement (kgf-mm):Computer Control Mobile Phone USB Dual Station Insertion And Extraction Force Tester 1



Support and Services:

Implementation Assistance,Installation,Training,Calibration,Preventive Maintenance,Technical Support,Upgrade,Repair & Parts.



Product Packaging:

The Force Testing Machine will be securely packaged in a wooden crate to prevent any damage during transportation. The crate will be sealed and labeled with the product information for easy identification.
