Name: High Precision Testing Force Micro Electro Hydraulic Servo Compression Test Machine
Brand: Infinity Machine International Inc.
SKU: IF730A
Price: negotiable USD
Availability: InStock

Home Products Compression Test Machine

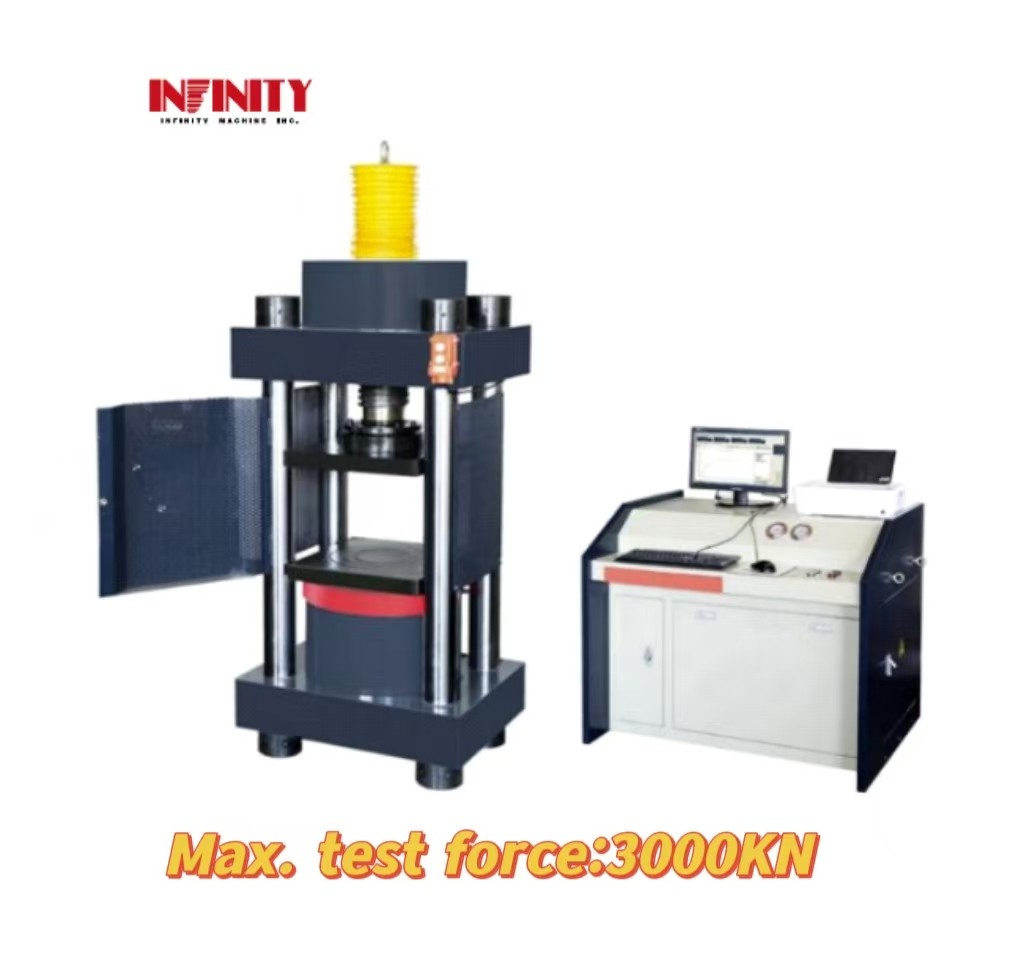

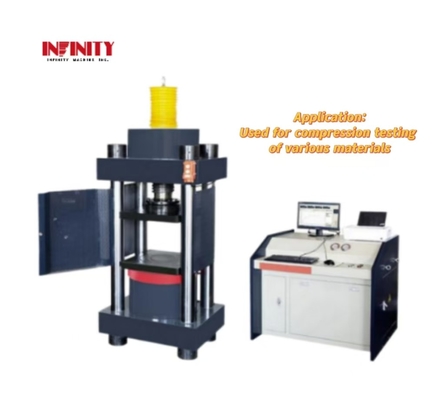

High Precision Testing Force Micro Electro Hydraulic Servo Compression Test Machine

Product Details:

Place of Origin:	Made In China
Brand Name:	Infinity Machine
Certification:	CE ISO
Model Number:	IF730A

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiate
Packaging Details:	Clear sheet+sponge+wood carton
Delivery Time:	20-30 days after order confirmed
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	200SETS PER MONTH

Contact Now

Detailed Product Description

Product Name:	Micro Electro-hydraulic Servo Compression Test Machine	Model:	IF730A
Maximum Test Force:	3000KN	Test Force Measurement Range:	4%-100%FS KN
Application:	The Equipment Is Used For Compression Test Of Various Materials	Feature:	The Main Machine Adopts Four-column High-rigidity Frame Structure, Stable Support And Beautiful Appearance.
Power:	Electronic	Warranty:	1 Year
Highlight:	Micro Electro hydraulic Servo Test Machine , High Precision Compression Test Machine , Micro Compression Test Machine

High Precision Testing Force Micro Electro-hydraulic Servo Compression Test Machine

Model:IF730A

Equipment usage:

The equipment is used for compression test of various materials, such as: cement, concrete, various building bricks, rubber MATS, concrete components, metal components, etc. In addition to the dozens of experimental standard methods already available in the software, users can also write their own applications of various standard methods.

High Precision Testing Force Micro Electro Hydraulic Servo Compression Test Machine 0

Features:

The main machine adopts four-column high-rigidity frame structure, stable support and beautiful appearance.
The upper pressure plate can adjust the test space arbitrarily within a certain range.
Full digital closed loop measurement and control system can realize the function of equal load loading and long time load holding.
It has control functions such as constant stress, constant strain, constant test force, constant displacement, test force maintenance, displacement maintenance, etc.
The software interface has the function of displaying results such as test force, peak value, sample deformation, piston displacement, and test curve.
The measurement and control system has fast running speed, gentle interface, and multiple sample information input modes, which can meet the testing needs of different materials.
Sample information input is convenient, the same conditions of sample information input can complete the test of multiple samples.
Samples under the same conditions can be overlaid and displayed with various test curves, which can clearly identify the stability of the material.
The test force display precision is high, and the resolution of the test force display is unchanged throughout the whole process to ensure the accuracy of the experimental data measurement.
The test curve is displayed dynamically on the real-time screen during the test process.
When the piston reaches the upper limit position, the stroke protection and oil pump motor stop.
When the load exceeds 3-5% of the full range, the automatic overload protection will shut down.

Specification parameters:

Items	Specifications
Maximum test force	3000KN
Test force measurement range	4%-100%FS KN
Relative error of test force indication	≤ ± 1% of the indicated value
Test force resolution	0.01kN
Rated pressure of hydraulic pump	60MPa
Dimensions of upper and lower pressure plates	216mm*216mm
Maximum distance between upper and lower pressure plates	370mm
Piston diameter	φ250mm
Piston stroke	50mm
Equipment weight	About 1600kg

Software interface diagram:

Report information:

Hot-sale products recommendation:

High Precision Testing Force Micro Electro Hydraulic Servo Compression Test Machine 3

For more details:

Please contact :Moi Mai

Email:sales2@infinity-machine.com

Tel/Whatsapp/Wechat:+86 181-0308-7812
