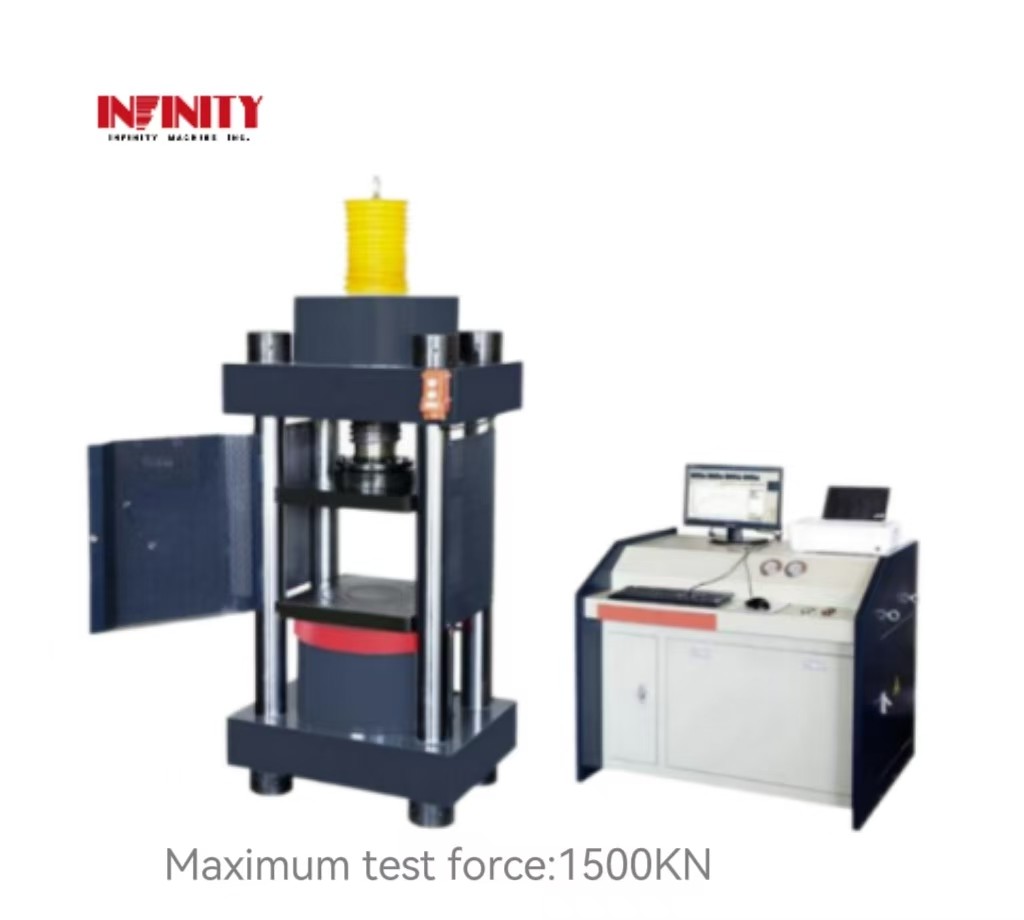

High Precision 1500KN Micro Electro Hydraulic Servo Compression Strength Testing Machine

       High Precision 1500KN Micro Electro-hydraulic Servo Compression Strength Testing Machine

                                                                                             Model:IF715

Application:

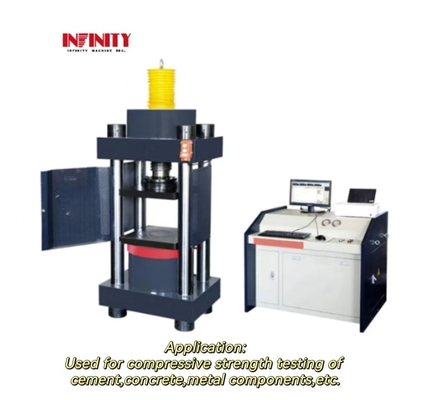

The equipment is used for the compression test of a variety of materials, such as: cement, concrete, various building bricks, rubber pads, concrete components, metal components and other compressive strength test. In addition to the dozens of standard methods that the software has, users can also compile their own applications of standard methods.

Features:

• The main engine adopts the four-column high rigid frame structure, with stable support and beautiful appearance.
• The upper pressure plate can adjust the test space within a certain range.
• Full digital closed-loop measurement and control system can realize the equal load loading and long-time load maintenance function.
• It has the control functions of constant velocity stress, constant velocity strain, constant velocity test force, constant velocity displacement, test force retention, displacement retention, etc
• The software interface has the function of test force, peak value, sample deformation, piston displacement and test curve.
• The measurement and control system has fast operation speed, mild interface, and a variety of sample information input modes, which can meet the test of different materials;
• Sample information input is convenient, the same conditions of sample information can be once input to complete the test of multiple samples;
• Samples with the same conditions can be superposition of various test curves, can clearly identify the stability of the material;
• The accuracy of the test force is high, and the whole resolution of the test force is unchanged to ensure the accuracy of the experimental data measurement;
• The test curve is displayed on the dynamic real-time screen along with the test process;
• When the piston rise reaches the upper limit position, the stroke protection, and the oil pump motor stops.
• Automatic overload protection shutdown when the load exceeds 3-5% of the full range.

Specification parameters:

Software interface diagram:

Report information:

Support and Services:

Implementation Assistance,Installation,Training,Calibration,Preventive Maintenance,Technical Support,Upgrade,Repair & Parts.

Packing and Shipping:

Product Packaging:

The Compression Testing Machine will be securely packaged in a wooden crate to prevent any damage during transportation. The crate will be sealed and labeled with the product information for easy identification.

Shipping:

The shipping of the Compression Testing Machine will be handled by a reliable and experienced shipping company. The transportation will be arranged to ensure timely delivery and safe handling of the product. The customer will be provided with the tracking information to monitor the shipment status.
