| Product Name: | Dual-station Swing Force Testing Machine | Model: | IF6112 |
|---|---|---|---|
| Test Station: | 2 Slots | Force Sensor Capacity: | 0.5KN（50Kgf） |
| Force Accuracy: | ±0.3% | Maximum Test Stroke: | 150mm |
| Power: | Electronic | Warranty: | 1 Year |
| Highlight: | Power Adapter Swing Force Testing Machine,Dual-station Swing Force Testing Machine,Rocking Force Swing Force Testing Machine |
||

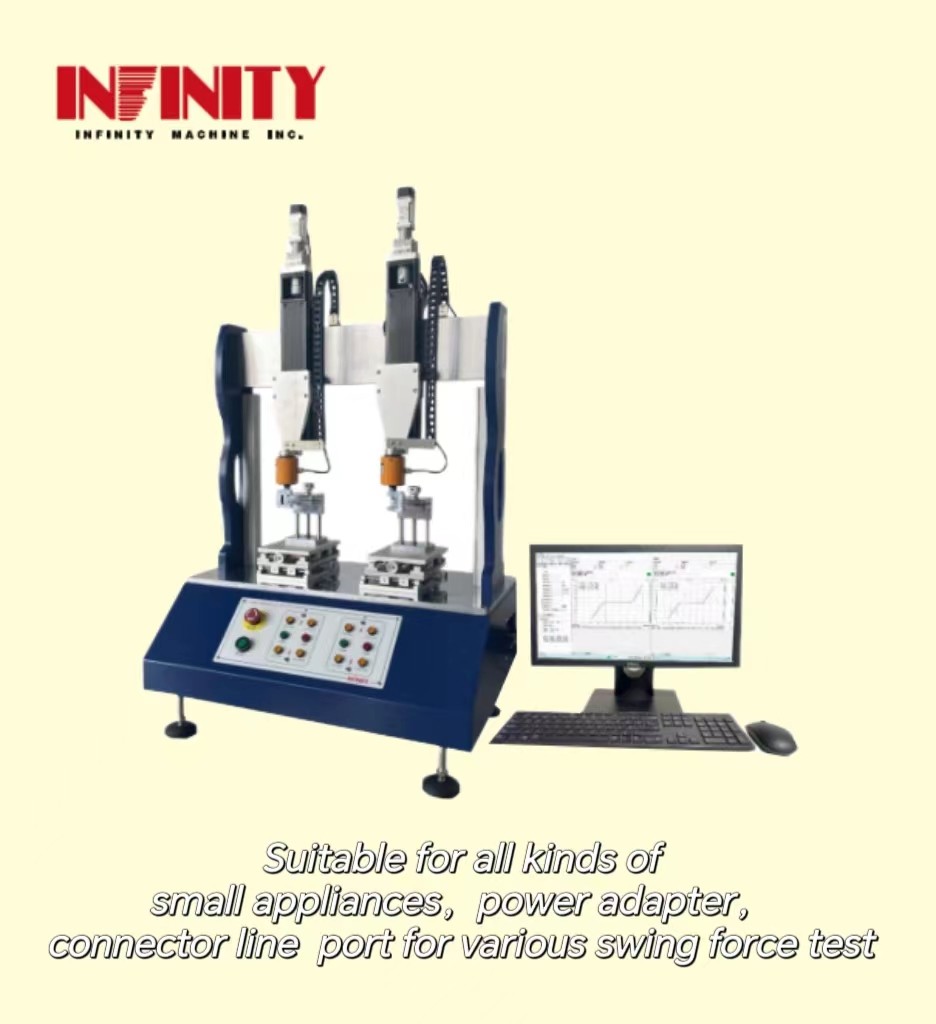

Dual-station Swing Force Testing Machine Suitable for Power Adapter Rocking Force Test
Model:IF6112
Application:

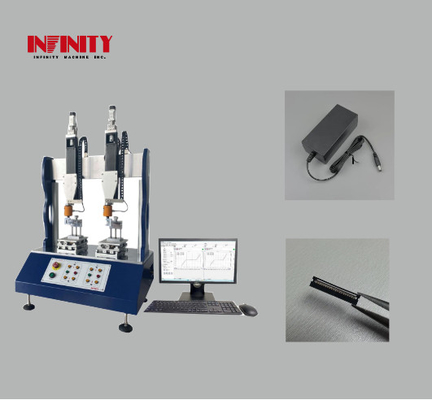

The equipment is suitable for all kinds of small appliances, power adapter, connector line port for various swing force test, the port after the applied force after multiple swing test results, so as to evaluate whether the product meets the manufacturing requirements.
Features:
1.Real-time display of the current force value and displacement changes, can be displayed: force-displacement (kgf-mm), or force-time (kgf-time) ,curve diagram.
2. Language has simplified / traditional / English three operation interface can be switched, the force value unit has N, Lb, gf, kgf can be switched,suitable for global customers.
3.Open force value protection function, a protection value is set according to the conventional test force, when operation or point movement will automatically stop moving, to reduce damage to the equipment and precision samples.
4.The test method management logic is clear, and the new method provides the correctness check of the parameters and provides the error information. The test data is stored in a local database for easy access and query.
5. The header content of the report can be modified at any time (both Chinese and English), and the report can be automatically generated without input. Data report, curve report can be printed, and exported as Word, Exce l, PDF and other format documents.
6.Meet the independent control and independent testing of 2 groups of products.
Specification:
|
Items |
Specification |
|
Test station |
2Slot |
|
Force sensor capacity |
0.5KN(50Kgf) |
|
Force accuracy |
±0.3% |
|
Displacement measurement accuracy |
±0.05mm |
| Degree of displacement decomposition |
0.001mm |
| Maximum test stroke |
150mm |
| Test speed range |
0.1~1200mm/min |
| Test speed accuracy |
±0.5% |
| Machine size (WxDxH) |
800x560x1258mm |
| Weight |
About105Kg |
| Power supply |
AC220V 3A 50Hz |
Bidirectional swing force curve diagram: Force-displacement (kgf-mm)
Dimensional drawing:(mm)
