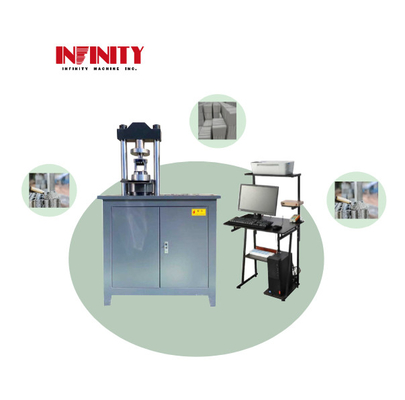

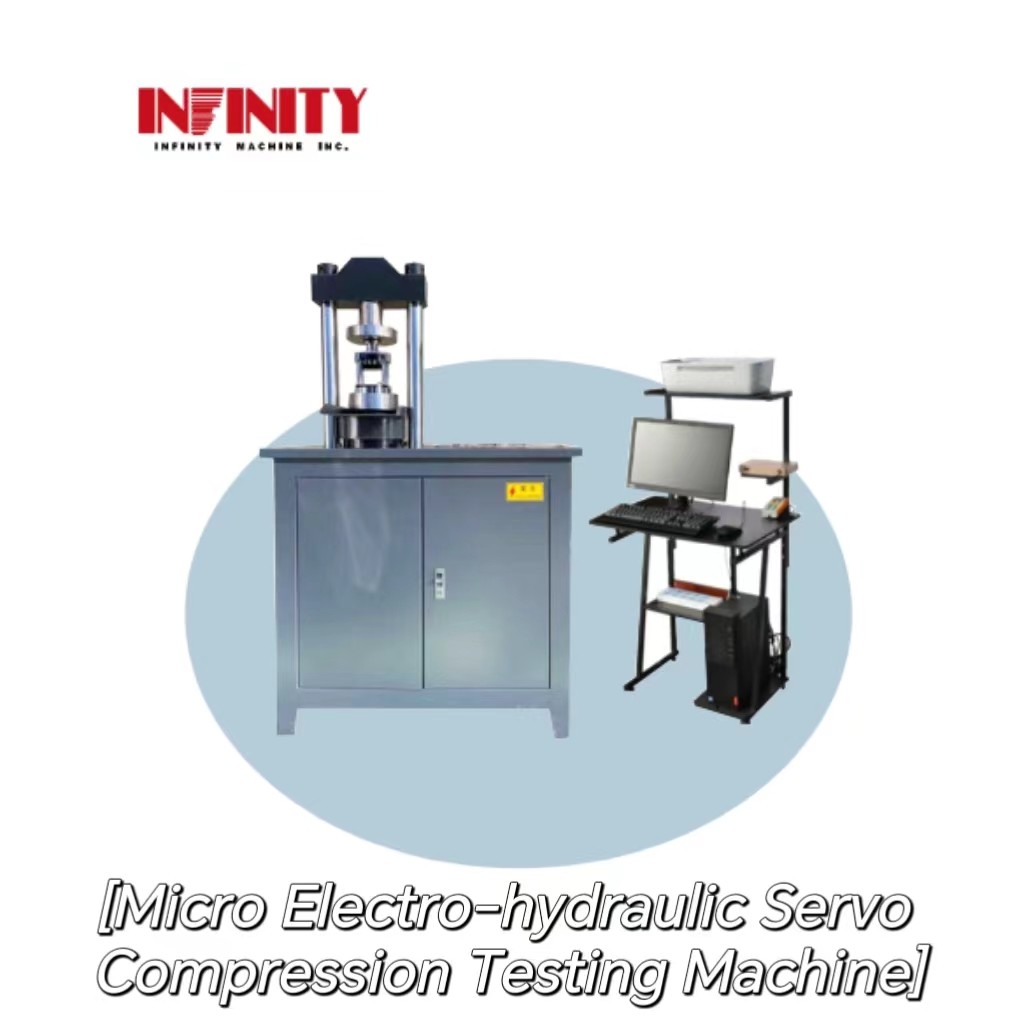

300KN Compression Testing Machine With High speed Operation Measurement and Control System

Compression Testing Machine With High-speed Operation Measurement and Control System

Product model number: IF703

Application:

This equipment is used for compression testing of a variety of materials, such as: compressive strength testing of cement, concrete, various building bricks, rubber mats, concrete components, metal components, etc. In addition to the dozens of test standard methods already available in the software, users can also compile their own application programs for various standard methods.

Features:

• The main machine adopts a two-column high-rigidity frame structure with stable support and beautiful appearance.
• Adjust the test space by adding spacers. (Cushion block specifications 30mm, 50mm, and 90mm are negotiated by both parties)
• The fully digital closed-loop measurement and control system can realize equal load loading and long-term load holding functions.
• It has control functions such as constant velocity stress, constant velocity strain, constant velocity test force, constant velocity displacement, test force maintenance, and displacement maintenance.
• The software interface has test force, peak value, sample deformation, piston displacement, test curve and other result display functions.
• The measurement and control system runs fast, has a gentle interface, and has a variety of sample
• information input modes, which can meet the testing of different materials;
• It is convenient to enter sample information, and the test of multiple samples can be completed by inputting the sample information of the same conditions at one time;
• For samples under the same conditions, various test curves can be superimposed and displayed, and the stability of the material can be clearly identified;
• The test force display has high precision, and the resolution of the test force display remains unchanged throughout the entire process to ensure the accuracy of experimental data measurement;
• The test curve is dynamically displayed on the screen in real time along with the test process;
• When the piston reaches the upper limit position, stroke protection occurs and the oil pump motor stops.
• Automatic overload protection shuts down when the load exceeds 3-5% of the full scale.

Specification parameters:

Software interface diagram:

Report information:

Support and Services:

The Compression Test Machine product technical support and services include:

- Installation and setup guidance

- Calibration and maintenance services

- Troubleshooting and repair assistance

- Software updates and upgrades

- Training and education on machine operation and safety

- Consultation on testing standards and procedures
