Name: Infinity Factory High And Low Temperature Thermal Shock Test Chamber
Brand: Infinity Machine International Inc.
SKU: IE31A Series
Price: negotiable USD
Availability: InStock

Home Products Thermal Shock Test Chamber

Infinity Factory High And Low Temperature Thermal Shock Test Chamber

Product Details:

Place of Origin:	China
Brand Name:	Infinity
Certification:	CE,ISO
Model Number:	IE31A Series

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiate
Packaging Details:	Clear sheet+sponge+wood carton
Delivery Time:	20-30 days after order confirmed
Payment Terms:	TT PAYPAL Moneygram and so on
Supply Ability:	200 sets / month

Contact Now

Detailed Product Description

Product Name:	Programmable Thermal Shock Test Chamber	Refrigeration Compressor:	Half-compact Compressor In Bitzer, Germany
Cooling Rate (cold Storage Area):	Down From RT To-55℃ About 75min Is Required Down From RT To-55℃ Approximately 75min Is Required	Observation Window:	A W 300 H 400mm Observation Window Is Installed On The Box Door. Multi-layer Insulating Electric Thermal Coated Glass Can Effectively Provide Heat Preservation And Prevent Condensation.
Box Door:	Open The Door Alone, Add The Door Frame Heating Wire At The Door Frame To Prevent Condensation At The Door Frame At Low Temperature.	Condenser Mode:	Water-cooled
Temperature Fluctuation:	±1℃	Machine Features:	GB/T2423.1-2001 Low-temperature Test Method; GB/T2423.2-2001； GB/T2423.22-1989 Temperature Change Test ; Military Standard GJB150.3-86; Military Standard GJB150.4-86; Military Standard GJB150.5-86; GJB150.5-86 Temperature Shock Test GJB360.7-87 Temperatu
Highlight:	High Low Temperature Thermal Shock Chamber , High Low Temperature Shock Test Chamber

Infinity Brand Programmable thermal shock test chamber IE31A Series

Infinity Factory High And Low Temperature Thermal Shock Test Chamber 0

Equipment overview::

It is used for users to conduct corresponding climate mutation tests on complete products (or components), electrical appliances, instruments, materials, coatings, plating, etc. It is suitable for high and low temperature testing on electrical, electronic, mechanical industries and other products, components, materials, etc. , Humidity and heat test, conduct hot and cold shock test under simulated temperature and humidity changes to evaluate the quality of the test product

Applicable standards:
GB/T2423.1-2001 Low temperature test method；

GB/T2423.2-2001；

GB/T2423.22-1989 Temperature change test N;

National military standard GJB150.3-86；

National military standard GJB150.4-86；

National military standard GJB150.5-86；

GJB150.5-86 Temperature shock test;

GJB360.7-87 Temperature shock test;

GJB367.2-87 405 Temperature shock test；

J/T10187-91Y73 Series temperature change test chamber—three-box type;

Meets the standard IEC68-2-14_Test method N_Temperature change.

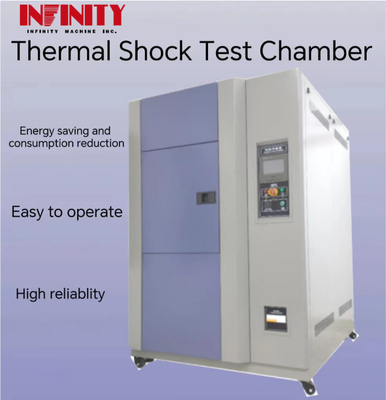

Features:

Energy saving and consumption reduction: Use gas-liquid bypass mode to adjust the cooling capacity to achieve constant temperature and humidity.

Easy to operate: Programmable color LCD touch controller can be combined with PID control; experimental data recording and processing methods are flexible.

High reliability: all key components are imported to ensure service life and reliability.

Specifications:

Model	IE31A80L		IE31A100L		IE31A150L		IE31A225L	IE31A408L
Temperature range	-55℃ ～ +150℃
Temperature fluctuation	±1℃
temperature uniformity	≦2.0℃
temperature recovery time	In 5 Minc
Heating rate (heat storage area)	It takes about 40 minutes to rise from RT to +150℃				It takes about 50 minutes to rise from RT to +150℃
Cooling rate (cold storage area)	It takes about 65 minutes to drop from RT to -55℃				It takes about 70 minutes to drop from RT to -55℃
Interior size:WxHxD(mm)	500x400x400		500x400x500		500x600x500		500x750x600	600×850×800
Equitment size: WxHxD(mm)	1480×1450 ×1950		1480×1485×2050		1500×1750×2150		1600×1900×2250	1800x2000x2500
Insulation box	● Outer wall material: high-quality carbon steel plate, surface treated with electrostatic color spraying. The left side of the box has a diameter of φ50mm. ● Inner wall material: SUS304# matte stainless steel plate. ● Insulation material: rigid polyurethane foam insulation layer + fiberglass.
Box door	For single-door doors, install a door frame heating wire at the door frame to prevent condensation on the door frame at low temperatures.
Observation window	Install a W 300×H 400mm observation window on the door. Multi-layer hollow electrothermal coated glass can effectively insulate heat and prevent condensation.
Sample holder	Stainless steel sample rack with 2 layers, adjustable layer height, load capacity 30kg/layer.
Refrigeration compressor	French Taikang fully enclosed compressor	German Britzer Semi- dense type compressor			German Bitzer semi-dense type compressor	German Bitzer semi-dense type compressor		German Bitzer semi-dense type compressor
Refrigerant	Non-fluorine environmentally friendly refrigerant R404A R23 complies with environmental regulations, safe and non-toxic
Condenser method	Air-cooled	Water-cooled			Water-cooled	Water-cooled		Water-cooled
Safety protection device	Heater anti-air fire protection; heater over-current protection; circulation fan over-current and overload protection; compressor high-voltage protection; compressor over-heat protection; compressor over-current protection; over-voltage reverse phase protection; line circuit breaker; leakage protection.
Power supply	AC380V;50Hz;18KW			AC380;V50Hz;18KW	AC380;V50Hz;22KW	AC380;V50Hz;22KW		AC380;V50Hz;25KW
