| Place of Origin: | MADE IN CHINA |
| Brand Name: | INFINITY |
| Certification: | CE ISO |
| Model Number: | IE31 Series |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Clear sheet+sponge+wood carton |
| Delivery Time: | 20-30 days after order confirmed |
| Payment Terms: | TT PAYPAL Moneygram and so on |
| Supply Ability: | 200 sets / month |
| Equipment Overview:: | For Users To The Whole Machine (or Parts), Electrical Appliances, Instruments, Materials, Coating, Coating For The Corresponding Climate Mutation Test, Suitable For Electrical, Electronics, Machinery Industry And Other Products, Parts, Materials, Such As H | Chamber Door: | Open The Door Alone, Add The Door Frame Heating Wire At The Door Frame To Prevent Condensation At The Door Frame At Low Temperature. |
|---|---|---|---|
| Internal Box Size: WxHxD(mm): | 500x400x400(or Specify) | Temperature Recovery Time: | Within 5 Mint |
| Safety Protection Device: | Heater Air Defense Incineration Protection; Heater Over Current Protection; Circulation Fan Over Current Overload Protection; Compressor High Pressure Protection;. Compressor Overheating Protection; Compressor Over Current Protection; Over Voltage Under Re | Source: | Source AC380V;50Hz;18KW(or Specify) |
| Heating Rate (heat Storage Area): | Up From RT To + 150℃ About 35min Is Required(or Specify) | Condenser Mode: | Air-cooled(or Specify) |

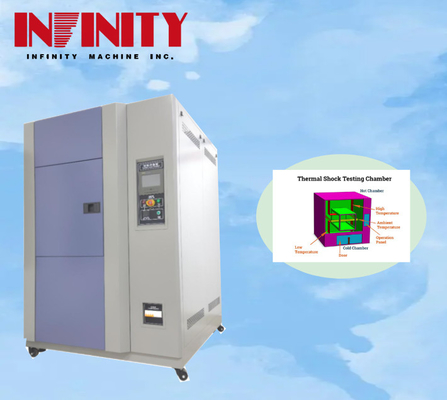

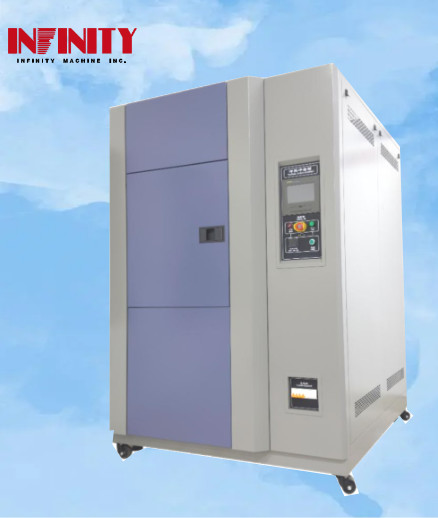

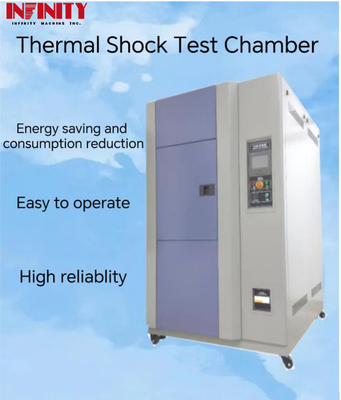

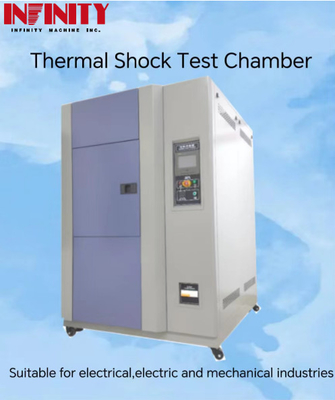

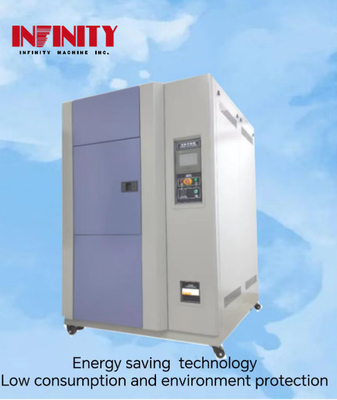

Programmable Low Temperature Shock Test Chamber with Hard Polyurethane Foam Insulation
The Specimen Holder is made of Stainless Steel Sample Frame with 2 Layers, Adjustable Height, and Bearing Weight of 30kg / Layer, allowing for easy adjustment and placement of products to be tested. The temperature can be set between -40℃ to 150℃, with a temperature fluctuation of ±1℃, ensuring accurate and consistent testing results.
The Thermal Shock Test Chamber's programmable control system allows users to set up customized test procedures, including high and low temperature shock tests, constant temperature and humidity tests, and more. The chamber also features an automatic defrosting function that prevents frost buildup and ensures the efficient operation of the equipment.
The carton size of the Thermal Shock Test Chamber is 1480×1450 ×1950 (or specified), making it easy to transport and store. The chamber's power source is AC380V;50Hz;18KW (or specified), ensuring stable and reliable operation.
In summary, the Thermal Shock Test Chamber is a reliable and efficient Programmable High-Low Temperature Shock Test Chamber that ensures accurate and consistent testing results. Its customizable features, automatic defrosting function, and easy-to-transport design make it a top choice for laboratories and testing facilities.
| Product Name: | Programmed Cold And Hot Impact Test Chamber |
| Specimen Holder: | Stainless Steel Sample Frame 2 Layers, Adjustable Height, Bearing Weight Of 30kg / Layer |
| Temperature Uniformity: | ≦2.0℃ |
| Safety Protection Device: | Heater Air Defense Incineration Protection; Heater Over Current Protection; Circulation Fan Over Current Overload Protection; Compressor High Pressure Protection;. Compressor Overheating Protection; Compressor Over Current Protection; Over Voltage Under Reverse Phase Protection; Circuit Breaker; Leakage Protection |
| Source: | Source AC380V;50Hz;18KW(or Specify) |
| Refrigeration Compressor: | France Tecumseh Fully Closed Compressor(or Specify) |
| Heating Rate (Heat Storage Area): | Up From RT To + 150℃ About 35min Is Required(or Specify) |
| Thermal Insulation Chamber: | ● Outer Wall Material: High Quality Carbon Steel Plate, The Surface For Electrostatic Color Spray Plastic Treatment. The Left Side Diameter Of The Box Is φ 50mm Hole ● Inner Wall Material: SUS304 # Fog Surface Stainless Steel Plate. ● Thermal Insulation Material: Hard Polyurethane Foam Thermal Insulation Layer + Glass Fiber |
| Condenser Mode: | Air-cooled(or Specify) |
| Equipment Overview: | For Users To The Whole Machine (or Parts), Electrical Appliances, Instruments, Materials, Coating, Coating For The Corresponding Climate Mutation Test, Suitable For Electrical, Electronics, Machinery Industry And Other Products, Parts, Materials, Such As High And Low Temperature, Humidity Test, Simulate The Temperature And Humidity Changes Under The Condition Of Cold And Cold Impact Test, So As To Evaluate The Quality Of The Test Products |
The Thermal Shock Test Chamber has several features that make it a reliable and efficient product. The chamber door can be opened alone, and the door frame has a heating wire to prevent condensation at low temperatures. The outer wall of the chamber is made of high-quality carbon steel plate, while the inner wall is made of SUS304 # fog surface stainless steel plate. The chamber is also equipped with a W300 * H400mm observation window with a multi-layer insulating electric thermal coated glass to provide heat preservation and prevent condensation.
The INFINITY IE31 Series Thermal Shock Test Chamber meets various international standards, including GB/T2423.1-2001 Low Temperature Test Method, GB/T2423.2-2001, GB/T2423.22-1989 Temperature Change Test, Military Standard GJB150.3-86, Military Standard GJB150.4-86, Military Standard GJB150.5-86, GJB150.5-86 Temperature Impact Test, GJB360.7-87 Temperature Shock Test, GJB367. 2-87 405 Temperature Shock Test, J / T10187-91Y73 Series Temperature Change Test Box-three Box Type, and IEC68-2-14_ Test Method N_ Temperature Change.
The INFINITY IE31 Series Thermal Shock Test Chamber has a minimum order quantity of 1 and a supply ability of 200 sets per month. The price is negotiable, and the packaging details include clear sheet, sponge, and wood carton. The delivery time is 20-30 days after order confirmation, and payment terms include TT, PayPal, Moneygram, and other options.
Looking for a Programmable High-Low Temperature Shock Test Chamber? Look no further than the Infinity IE31 Series Thermal Shock Test Chamber, MADE IN CHINA. With CE and ISO certifications, this product is built to meet the highest standards of quality and performance.
Our minimum order quantity is 1 and pricing is negotiable. Packaging details include a clear sheet, sponge, and wood carton. Delivery time is estimated at 20-30 days after order confirmation, and we accept payment via TT, PayPal, Moneygram, and more. Our supply ability is 200 sets per month.
The internal box size measures WxHxD(mm): 500x400x400 (or specify your preferred size). The thermal insulation chamber features an outer wall made of high-quality carbon steel plate, with the surface treated with electrostatic color spray plastic. The left side diameter of the box is φ 50mm hole. The inner wall is made of SUS304 # fog surface stainless steel plate, while the thermal insulation material consists of hard polyurethane foam thermal insulation layer + glass fiber.
The cooling rate (cold storage area) is down from RT to -40℃, which takes about 55 minutes (or specify your preferred rate). The cooling medium is a non-fluorine environmental protection refrigerant, either R404A or R23, both of which comply with environmental protection regulations and are safe and non-toxic. The carton size is WxHxD(mm): 1480×1450×1950 (or specify your preferred size).
Product Packaging:
The Thermal Shock Test Chamber product will be securely packaged to prevent any damage during transit. The product will be wrapped in protective materials and placed in a sturdy cardboard box. The box will be labeled with the product name, description, and handling instructions.
Shipping:
The Thermal Shock Test Chamber product will be shipped through a reliable and trusted courier service. The shipping cost will vary depending on the destination and the weight of the product. The estimated delivery time will be provided to the customer upon confirmation of the order. The customer will also receive a tracking number to track the shipment of their product.
Q: What is the brand name of this product?
A: The brand name of this product is INFINITY.
Q: What is the model number of this product?
A: The model number of this product is IE31 Series.
Q: Where is this product made?
A: This product is made in China.
Q: What certifications does this product have?
A: This product has CE and ISO certifications.
Q: What is the minimum order quantity for this product?
A: The minimum order quantity for this product is 1.
Q: What is the price of this product?
A: The price of this product is negotiable.
Q: What are the packaging details for this product?
A: The packaging details for this product are clear sheet+sponge+wood carton.
Q: What is the delivery time for this product?
A: The delivery time for this product is 20-30 days after order confirmed.
Q: What payment terms are accepted for this product?
A: The payment terms accepted for this product are TT PAYPAL Moneygram and so on.
Q: What is the supply ability for this product?
A: The supply ability for this product is 200 sets / month.
