| Place of Origin: | Made In China |
| Brand Name: | Infinity Machine |
| Certification: | CE ISO |
| Model Number: | IF703 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Clear sheet+sponge+wood carton |
| Delivery Time: | 20-30 days after order confirmed |
| Payment Terms: | TT PAYPAL Moneygram and so on |
| Supply Ability: | 200 sets / month |
| Feature3: | Full Digital Closed-loop Measurement And Control System, Can Realize The Equal Load Loading And Long-time Load Maintenance Function. | Feature2: | The Test Space Was Adjusted By Adding Pad Blocks.(Block Specification: 30mm 50mm90mm Negotiated By Both Parties) |
|---|---|---|---|
| Feature6: | The Measurement And Control System Has Fast Operation Speed, Mild Interface, And A Variety Of Sample Information Input Modes, Which Can Meet The Test Of Different Materials; | Feature4: | It Has The Control Functions Of Constant Velocity Stress, Constant Velocity Strain, Constant Velocity Test Force, Constant Velocity Displacement, Test Force Retention, Displacement Retention, Etc. |
| Piston Diameter: | φ130mm | Application:: | The Equipment Is Used For The Compression Test Of A Variety Of Materials, Such As: Cement, Concrete, Various Building Bricks, Rubber Pads, Concrete Components, Metal Components And Other Compressive Strength Test. In Addition To The Dozens Of Standard Meth |
| Maximum Spacing Between Upper And Lower Plates: | 370mm | Product Name: | Micro Electro-hydraulic Servo Compression Testing Machine |
| Highlight: | 130mm micro compression testing machine,micro compression testing machine,Micro Electro-hydraulic Servo Compression Tester |
||

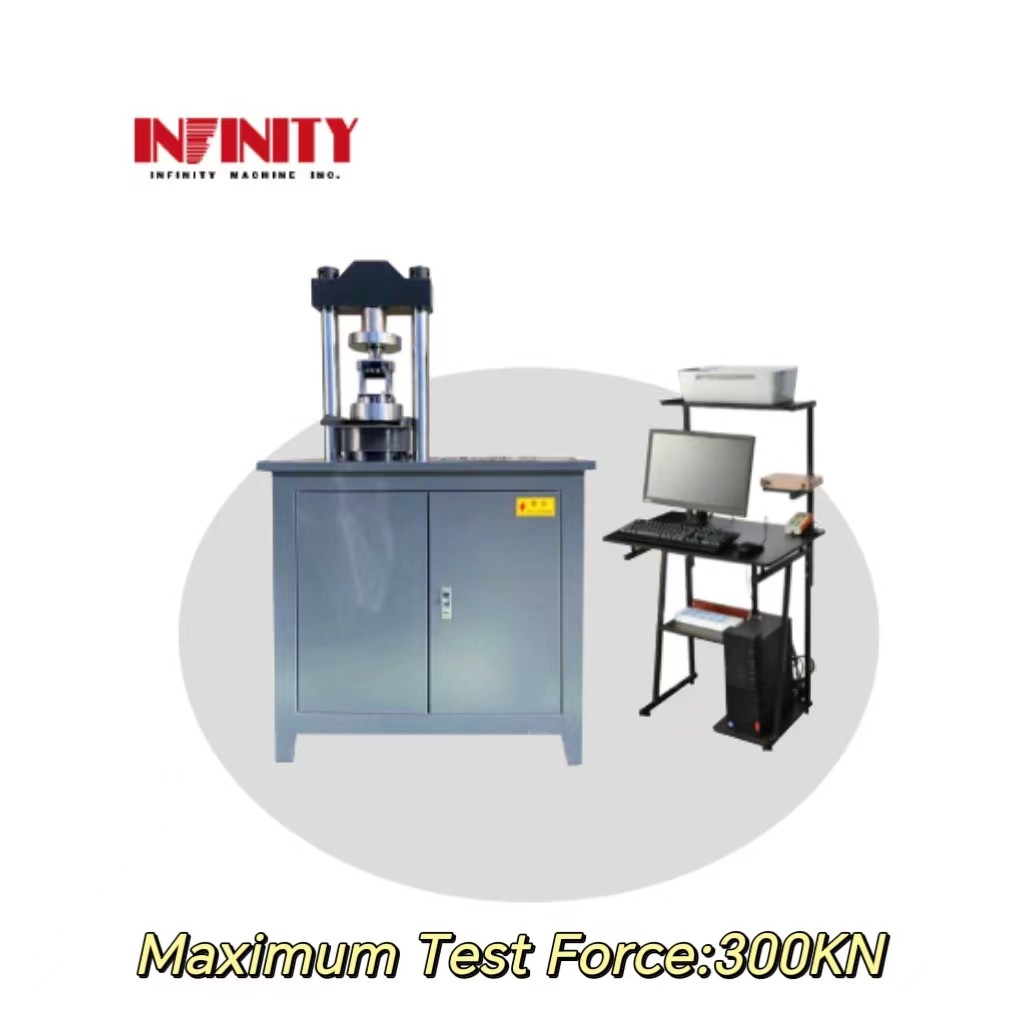

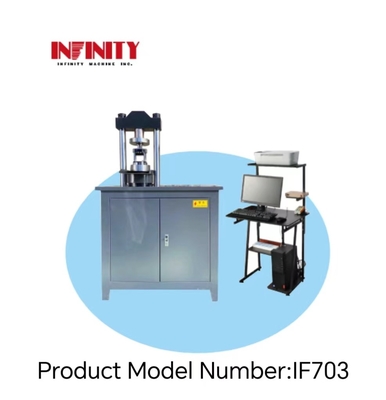

Test Force Measurement Range 4%-100%FS KN φ130mm Piston Diameter Peak Value Micro Electro-hydraulic Servo Compression Testing Machine
One of the key features of the Micro Electro-hydraulic Servo Compression Testing Machine is its full digital closed-loop measurement and control system. This system allows for equal load loading and long-time load maintenance function, providing users with precise and repeatable test results. Additionally, the machine has a maximum spacing between upper and lower plates of 370mm, providing ample room for testing larger sample sizes.
The upper and lower pressure plates of the Micro Electro-hydraulic Servo Compression Testing Machine measure 216mm by 216mm, providing a stable and reliable platform for testing a variety of materials. With its advanced electro-hydraulic servo control technology, the machine is capable of delivering smooth and consistent loading, ensuring accurate and reliable test results every time.
Overall, the Micro Electro-hydraulic Servo Compression Testing Machine is an excellent choice for anyone looking for a high-quality compression testing machine that is both reliable and accurate. Whether you are involved in research and development, quality control, or production testing, this machine is sure to meet your needs and exceed your expectations.
|
Micro Electro-hydraulic Servo Compression Testing Machine |
|
| Relative error of the test force indication value | ± 1% Of The Indicated Value |
| Resolution of test force | 0.01kN |
| When The Piston Rise Reaches The Upper Limit Position, The Stroke Protection, And The Oil Pump Motor Stops | Feature11 |
| The Test Space Was Adjusted By Adding Pad Blocks.(Block Specification: 30mm 50mm90mm Negotiated By Both Parties) | Feature2 |
| Size of the upper and lower pressure plate | 216mm*216mm |
| Application | The Equipment Is Used For The Compression Test Of A Variety Of Materials, Such As: Cement, Concrete, Various Building Bricks, Rubber Pads, Concrete Components, Metal Components And Other Compressive Strength Test. In Addition To The Dozens Of Standard Methods That The Software Has, Users Can Also Compile Their Own Applications Of Standard Methods. |
| The Software Interface Has The Function Of Test Force, Peak Value, Sample Deformation, Piston Displacement And Test Curve | Feature5 |
| Hydraulic pump rated pressure | 25MPa |
| The Accuracy Of The Test Force Is High, And The Whole Resolution Of The Test Force Is Unchanged To Ensure The Accuracy Of The Experimental Data Measurement | Feature9 |
| Maximum test force | 300kN |
The Infinity Machine IF703 Micro Electro-hydraulic Servo Compression Testing Machine is a precision compression testing equipment that is commonly used in material science, metallurgy, construction, aerospace, and other industries for testing the mechanical properties of materials.
This micro electro-hydraulic servo compression testing machine is made in China and is certified to meet CE and ISO standards. The minimum order quantity is 1, and the price is negotiable. The product is packaged with clear sheet, sponge, and wood carton to ensure safe delivery. The delivery time is 20-30 days after the order is confirmed, and various payment methods such as TT, PayPal, and Moneygram are accepted. The supply ability is 200 sets per month.
The IF703 Micro Electro-hydraulic Servo Compression Testing Machine is equipped with a hydraulic pump that has a rated pressure of 25MPa and a piston diameter of φ130mm. The maximum spacing between upper and lower plates is 370mm, making it suitable for testing a wide range of materials with varying sizes and shapes.
One of the key features of the IF703 Micro Electro-hydraulic Servo Compression Testing Machine is that it has the control functions of constant velocity stress, constant velocity strain, constant velocity test force, constant velocity displacement, test force retention, displacement retention, etc. This allows for more accurate testing and analysis of the material's properties. In addition, the test curve is displayed on the dynamic real-time screen along with the test process, making it easier for users to monitor and record the results.
Overall, the Infinity Machine IF703 Micro Electro-hydraulic Servo Compression Testing Machine is a reliable and efficient micro electro-hydraulic servo compression testing machine that can be used in various testing scenarios. Whether you are testing the strength of metals, plastics, rubber, or other materials, this product is a great choice for your testing needs.
Brand Name: Infinity Machine
Model Number: IF703
Place of Origin: Made In China
Certification: CE ISO
Minimum Order Quantity: 1
Price: Negotiate
Packaging Details: Clear sheet+sponge+wood carton
Delivery Time: 20-30 days after order confirmed
Payment Terms: TT PAYPAL Moneygram and so on
Supply Ability: 200 sets / month
Feature9: The Accuracy Of The Test Force Is High, And The Whole Resolution Of The Test Force Is Unchanged To Ensure The Accuracy Of The Experimental Data Measurement;
Feature2: The Test Space Was Adjusted By Adding Pad Blocks.(Block Specification: 30mm 50mm90mm Negotiated By Both Parties)
Feature7: Sample Information Input Is Convenient, The Same Condition Of Sample Information Once Input Can Complete The Test Of Multiple Samples;
Feature4: It Has The Control Functions Of Constant Velocity Stress, Constant Velocity Strain, Constant Velocity Test Force, Constant Velocity Displacement, Test Force Retention, Displacement Retention, Etc.
The Micro Electro-hydraulic Servo Compression Testing Machine is designed for testing the mechanical properties of materials such as tension, compression, bending, and shearing. Our product technical support and services include:
Our team of experienced technicians and engineers are dedicated to providing excellent customer service and ensuring the proper functioning and longevity of your Universal Testing Machine.
Product Packaging:
The Micro Electro-hydraulic Servo Compression Testing Machine will be packaged in a sturdy cardboard box with foam padding to ensure safe transportation. The box will be labeled with the product name, model number, and handling instructions.
Shipping:
The Micro Electro-hydraulic Servo Compression Testing Machine will be shipped via air or sea freight depending on the customer's preference and location. Shipping costs will vary based on the destination and chosen method of transportation. The estimated delivery time will be communicated to the customer prior to shipping.
Q: What is the brand name of the Micro Electro-hydraulic Servo Compression Testing Machine?
A: The brand name of the Micro Electro-hydraulic Servo Compression Testing Machine is Infinity Machine.
Q: What is the model number of the Micro Electro-hydraulic Servo Compression Testing Machine?
A: The model number of the Micro Electro-hydraulic Servo Compression Testing Machine is IF703.
Q: Where is the Micro Electro-hydraulic Servo Compression Testing Machine made?
A: The Micro Electro-hydraulic Servo Compression Testing Machine is made in China.
Q: What certifications does the Micro Electro-hydraulic Servo Compression Testing Machine have?
A: The Micro Electro-hydraulic Servo Compression Testing Machine has CE and ISO certifications.
Q: What is the minimum order quantity for the Micro Electro-hydraulic Servo Compression Testing Machine?
A: The minimum order quantity for the Micro Electro-hydraulic Servo Compression Testing Machine is 1.
Q: What is the price of the Micro Electro-hydraulic Servo Compression Testing Machine?
A: The price of the Micro Electro-hydraulic Servo Compression Testing Machine is negotiable.
Q: What are the packaging details for the Micro Electro-hydraulic Servo Compression Testing Machine?
A: The packaging details for the Micro Electro-hydraulic Servo Compression Testing Machine are clear sheet+sponge+wood carton.
Q: What is the delivery time for the Micro Electro-hydraulic Servo Compression Testing Machine?
A: The delivery time for the Micro Electro-hydraulic Servo Compression Testing Machine is 20-30 days after order confirmed.
Q: What are the payment terms for the Micro Electro-hydraulic Servo Compression Testing Machine?
A: The payment terms for the Micro Electro-hydraulic Servo Compression Testing Machine are TT, PayPal, Moneygram, and so on.
Q: What is the supply ability of the Micro Electro-hydraulic Servo Compression Testing Machine?
A: The supply ability of the Micro Electro-hydraulic Servo Compression Testing Machine is 200 sets per month.
