| Place of Origin: | MADE IN CHINA |
| Brand Name: | INFINITY |
| Certification: | CE ISO |
| Model Number: | IE31A Series |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Clear sheet+sponge+wood carton |
| Delivery Time: | 20-30 days after order confirmed |
| Payment Terms: | TT PAYPAL Moneygram and so on |
| Supply Ability: | 200 sets / month |
| Heating Rate (heat Storage Area): | Up From RT To + 150℃ About 40m In Is Required(or Specify) | Internal Chamber Size: WxHxD(mm ): | 500x 400x400(or Specify) |
|---|---|---|---|
| Safety Protection Device: | Heater Air Defense Incineration Protection; Heater Over Current Protection; Circulation Fan Over Current Overload Protection; Compressor High Pressure Protection;. Compressor Overheating Protection; Compressor Over Current Protection; Over Voltage Under Re | Equipment Overview: | For Users To The Whole Machine (or Parts), Electrical Appliances, Instruments, Materials, Coating, Coating For The Corresponding Climate Mutation Test, Suitable For Electrician, Electronics, Machinery Industry And Other Products, Parts, Materials, Such As |

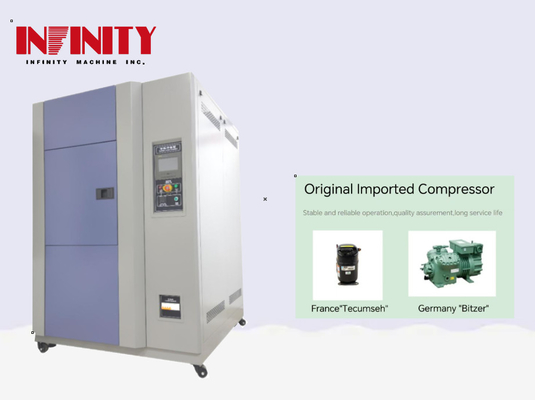

| Product Name: | Programmable Cold And Hot Shock Chamber | Refrigeration Compressor: | France Tecumseh Fully Closed Compressor(or Specify) |
| Specimen Holder: | Stainless Steel Sample Frame 2 Layers, Adjustable Height, Bearing Weight Of 30kg / Layer. | Condenser Mode: | Air-cooled |
IE31A Series High and Low Temperature Impact Test Chamber Heating Rate Up From RT To 150C Requires About 40m
Product Model: IE31A Series

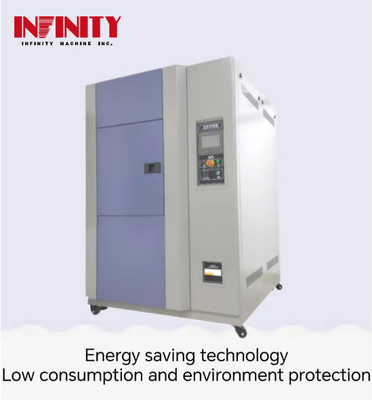

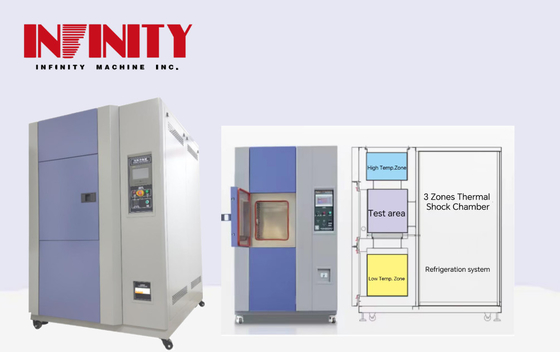

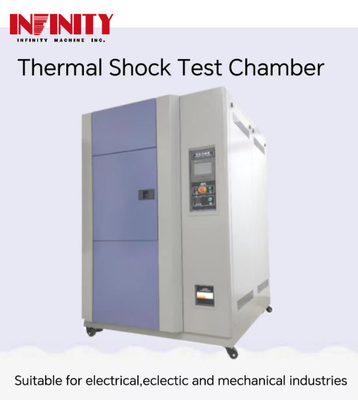

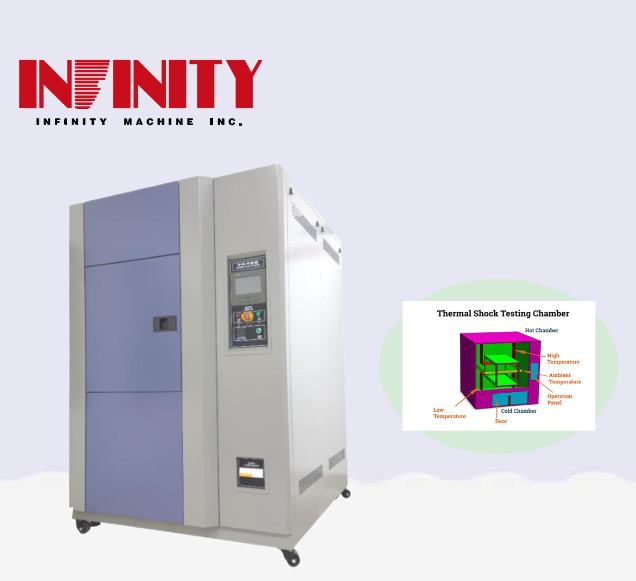

The Thermal Shock Test Chamber, also known as the High and Low Temperature Impact Test Chamber, is a piece of equipment designed for users to test the whole machine or parts, electrical appliances, instruments, materials, coating, and coating for the corresponding climate mutation. It is suitable for the electrician, electronics, machinery industry, and other products, parts, materials, such as high and low temperature, humidity test, simulated temperature, and humidity changes under the condition of cold and cold impact test, so as to evaluate the quality of the test products.
The chamber is equipped with a W300*H400mm observation window installed on the box door. The multi-layer insulating electric thermal coated glass can effectively provide heat preservation and prevent condensation. This allows for easy observation of the test being performed, without any interference from outside factors.
The outer wall material of the Thermal Shock Test Chamber is made of high-quality carbon steel plate, the surface for electrostatic color spray plastic treatment. The left side diameter of the chamber is φ 50mm hole. The inner wall material is made of SUS304 # fog surface stainless steel plate. The thermal insulation material consists of hard polyurethane foam thermal insulation layer + glass fiber. This material ensures that the temperature inside the chamber is maintained at the desired level, without any interference from outside factors.
Overall, the Thermal Shock Test Chamber is an essential tool for any industry that requires its products to undergo rigorous testing. It is a reliable and efficient way to determine the quality of a product, and to ensure that it meets the necessary standards. With its advanced features and user-friendly design, the Thermal Shock Test Chamber is the perfect choice for any business that wants to stay ahead of the competition.
Keywords: High and Low Temperature Impact Test Chamber, High and Low Temperature Impact Test Chamber, High and Low Temperature Impact Test Chamber
| Product Name: | Programmable Cold And Hot Shock Chamber |
| Product Model: | IE31A Series |
| Equipment Overview: | For users to the whole machine (or parts), electrical appliances, instruments, materials, coating, coating for the corresponding climate mutation test, suitable for electrician, electronics, machinery industry and other products, parts, materials, such as high and low temperature, humidity test, simulated temperature and humidity changes under the condition of cold and cold impact test, so as to evaluate the quality of the test products. |
| Temperature Range: | -55℃ ～ +150℃ |
| Temperature Uniformity: | ≦2.0℃ |
| Cooling Rate (Cold Storage Area): | Down from RT to-55℃ about 65min is required (or specify) |
| Condenser Mode: | Air-cooled |
| Features: | Energy saving and consumption reduction: use gas-liquid bypass mode to adjust the cooling capacity to achieve constant temperature and humidity. Simple operation: programmed color LCD touch controller reference group PID control; experimental data recording and processing mode is flexible. High reliability: the key parts are imported parts to ensure the service life and reliability. |
| Carton Size (WxHxD): | 1480×1450×1950 (or specify) |
| Safety Protection Device: | Heater air defense incineration protection; heater over current protection; circulation fan over current overload protection; compressor high pressure protection; compressor overheating protection; compressor over current protection; over voltage under reverse phase protection; circuit breaker; leakage protection. |
Here's a two-column HTML table code that describes the technical parameters of a Thermal Shock Test Chamber product. The table includes information about the product name, model, temperature range, temperature uniformity, cooling rate, condenser mode, features, carton size, and safety protection device.
The INFINITY IE31A Series Thermal Shock Test Chamber is a high-end product that can be used for a variety of testing scenarios. This chamber is designed to perform high and low temperature impact tests, making it an ideal choice for industries such as electronics, aerospace, automotive, and more. This product is MADE IN CHINA and comes with CE and ISO certification, ensuring that it meets international standards of quality and safety. The minimum order quantity is 1, and the price is negotiable. The packaging details include clear sheets, sponge, and a wood carton, providing ample protection during transport. The delivery time for this product is 20-30 days after order confirmation. Payment can be made via TT, PAYPAL, Moneygram, and other methods. The supply ability for this product is 200 sets per month.
The INFINITY IE31A Series Thermal Shock Test Chamber has a stainless steel sample frame with two layers, an adjustable height, and a bearing weight of 30kg per layer. This makes it easy to test multiple specimens at once, increasing efficiency and productivity. The temperature fluctuation of this chamber is ±1℃, while the temperature uniformity is less than or equal to 2.0℃, ensuring accurate and consistent results every time. The temperature range for this chamber is from -55℃ to +150℃, making it suitable for a wide range of testing scenarios.
The Programmable Cold and Hot Shock Chamber is perfect for testing the durability and reliability of electronics, aerospace, and automotive components. The high and low temperature impact tests simulate extreme weather conditions, ensuring that the product can withstand the harshest environments. This chamber is also ideal for testing the effects of sudden temperature changes on materials, providing valuable insights into how they will perform in real-world scenarios. Whether you need to test the durability of a new product or ensure that your existing products can withstand extreme weather conditions, the INFINITY IE31A Series Thermal Shock Test Chamber is the perfect choice.
The INFINITY IE31A Series Thermal Shock Test Chamber is a high and low temperature impact test chamber that is perfect for a variety of testing needs. Contact us today to discuss your customization options.
The Thermal Shock Test Chamber is a sophisticated testing equipment designed to measure the resistance of materials to sudden temperature changes. Our product technical support and services include:
Our team of experienced technicians is dedicated to ensuring that your Thermal Shock Test Chamber is functioning optimally and providing reliable results. Contact us for more information on our services.
Product Packaging:
Shipping:
Q: What is the brand name of this product?
A: The brand name of this product is INFINITY.
Q: What is the model number of this product?
A: The model number of this product is IE31A Series.
Q: Where is this product made?
A: This product is made in China.
Q: What certifications does this product have?
A: This product has CE and ISO certifications.
Q: What is the minimum order quantity for this product?
A: The minimum order quantity for this product is 1.
Q: Can the price of this product be negotiated?
A: Yes, the price of this product is negotiable.
Q: What is the packaging detail for this product?
A: The packaging detail for this product is Clear sheet+sponge+wood carton.
Q: What is the delivery time for this product?
A: The delivery time for this product is 20-30 days after order confirmed.
Q: What are the payment terms for this product?
A: The payment terms for this product are TT, PAYPAL, Moneygram, and so on.
Q: What is the supply ability for this product?
A: The supply ability for this product is 200 sets/month.
