| Place of Origin: | MADE IN CHINA |
| Brand Name: | INFINITY |
| Certification: | CE ISO |
| Model Number: | IE31A Series |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Clear sheet+sponge+wood carton |
| Delivery Time: | 20-30 days after order confirmed |
| Payment Terms: | TT PAYPAL Moneygram and so on |
| Supply Ability: | 200 sets / month |
| Temperature Recovery Time: | Within 5Minc | Temperature Range: | -55℃ ～ +150℃ |
|---|---|---|---|
| Application: | GB/T2423.1-2001 Low Temperature Test Method; GB/T2423.2-2001; GB/T2423.22-1989 Temperature Change Test; Military Standard GJB150.3-86; Military Standard GJB150.4-86; Military Standard GJB150.5-86; GJB150.5-86 Temperature Impact Test; GJB360.7-87 Temperatur | Source: | AC380V;50Hz;18KW(or Specify) |
| Internal Chamber Size: WxHxD(mm ): | 500x 400x400(or Specify) | Safety Protection Device: | Heater Air Defense Incineration Protection; Heater Over Current Protection; Circulation Fan Over Current Overload Protection; Compressor High Pressure Protection;. Compressor Overheating Protection; Compressor Over Current Protection; Over Voltage Under Re |
| Temperature Fluctuation: | ±1℃ | Cooling Rate (cold Storage Area): | Down From RT To-55℃ About 65mi N Is Required(or Specify) |
Temperature Recovery Time Within 5Minc High and Low Temperature Impact Test Chamber
The key feature of this Thermal Shock Test Chamber is its impressive temperature recovery time. With the ability to recover within 5 minutes, this test chamber allows for quick and efficient testing, saving you valuable time and resources. The heating rate in the heat storage area is also remarkable, with the ability to reach temperatures up from RT to +150℃ in about 40 minutes. This ensures that your products are tested under the most extreme temperature conditions, providing you with accurate and reliable results.
The Programmable Cold And Hot Shock Chamber comes equipped with an air-cooled condenser mode, providing efficient cooling and ensuring that your products are tested under the most accurate temperature conditions. The box door has been designed for easy access, allowing you to open the door alone without any assistance. Additionally, the door frame heating wire prevents condensation at the door frame at low temperatures, ensuring that your products are not affected by any external factors during testing.
Overall, the Programmable Cold And Hot Shock Chamber is the ultimate solution for conducting high and low temperature impact tests. With its impressive temperature recovery time, efficient heating rate, and reliable air-cooled condenser mode, you can be assured that your products are thoroughly tested under the most extreme temperature conditions. Invest in the High and Low Temperature Impact Test Chamber today and ensure the reliability and durability of your products!
Keywords: High and Low Temperature Impact Test Chamber, High and Low Temperature Impact Test Chamber, Thermal Shock Test Chamber
| Product Model | IE31A Series |
| Equipment Overview | For users to test the quality of products in high and low temperature conditions. Suitable for electrician, electronics, machinery industry and other products, parts, and materials. |
| Internal Chamber Size (WxHxD) | 500x400x400mm (or specify) |
| Box Door | Open the door alone. Add the door frame heating wire at the door frame to prevent condensation at the door frame at low temperature. |
| Source | AC380V;50Hz;18KW (or specify) |
| Heating Rate (Heat Storage Area) | Up from RT to +150℃ about 40min is required (or specify) |
| Temperature Recovery Time | Within 5min |
| Cooling Rate (Cold Storage Area) | Down from RT to-55℃ about 65min is required (or specify) |
| Condenser Mode | Air-cooled |
| Temperature Range | -55℃ ～ +150℃ |
The Thermal Shock Test Chamber is a versatile product that can be used in a variety of application occasions and scenarios. It is commonly used in the electronics industry to test the performance of electronic components and devices in extreme temperature conditions. It is also used in the automotive industry to test the durability of car components in extreme hot and cold temperatures.
The Thermal Shock Test Chamber can be used to simulate a wide range of temperatures, making it an ideal choice for testing a variety of products. It has a cooling rate of down from RT to -55℃, which requires about 65min of time. This feature makes it a suitable option for testing the performance of products in high and low temperature impact scenarios.

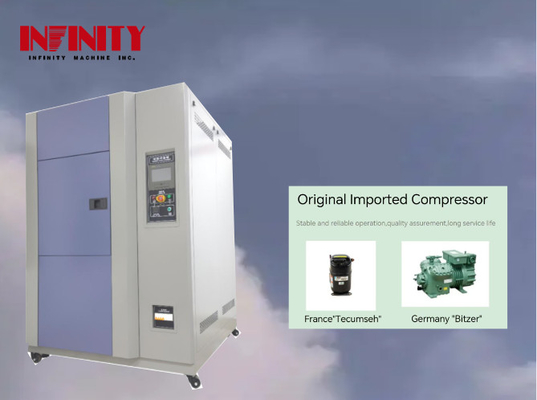

The Thermal Shock Test Chamber's internal chamber size is WxHxD(mm): 500x400x400 (or specify), and it has a refrigeration compressor made by France Tecumseh. The thermal insulation box is made of high-quality carbon steel plate with electrostatic color spray plastic treatment, and the inner wall material is SUS304 # fog surface stainless steel plate. The thermal insulation material is made of hard polyurethane foam thermal insulation layer + glass fiber. The chamber also has a left side diameter of φ50mm hole.
The INFINITY IE31A Series Thermal Shock Test Chamber is available for negotiation in terms of price and has a minimum order quantity of 1. It is packaged in a clear sheet+sponge+wood carton with a carton size of WxHxD(mm): 1480×1450×1950 (or specify). The delivery time after order confirmation is 20-30 days, and payment terms include TT, PAYPAL, Moneygram, and other options. The supply ability of the product is 200 sets per month.
Product Customization Services for the High and Low Temperature Impact Test Chamber:
Brand Name: INFINITY
Model Number: IE31A Series
Place of Origin: MADE IN CHINA
Certification: CE ISO
Minimum Order Quantity: 1
Price: Negotiate
Packaging Details: Clear sheet+sponge+wood carton
Delivery Time: 20-30 days after order confirmed
Payment Terms: TT PAYPAL Moneygram and so on
Supply Ability: 200 sets / month
Equipment overview: For Users To The Whole Machine (or Parts), Electrical Appliances, Instruments, Materials, Coating, Coating For The Corresponding Climate Mutation Test, Suitable For Electrician, Electronics, Machinery Industry And Other Products, Parts, Materials, Such As High And Low Temperature, Humidity Test, Simulated Temperature And Humidity Changes Under The Condition Of Cold And Cold Impact Test, So As To Evaluate The Quality Of The Test Products.
Source: AC380V;50Hz;18KW(or Specify)
Internal chamber size: WxHxD(mm ): 500x 400x400(or Specify)
Cooling medium: Non-fluorine Environmental Protection Refrigerant R404A R23 Comply With Environmental Protection Regulations, Safe And Non-toxic
Temperature uniformity: ≦2.0℃
This is a Thermal Shock Test Chamber product.
The Thermal Shock Test Chamber is designed to test the ability of materials to withstand sudden changes in temperature. It features a high-performance refrigeration system, multiple safety features, and a user-friendly control interface. Our technical support team is available to answer any questions and provide assistance with installation, operation, and maintenance of the chamber. We also offer calibration and repair services to ensure that the chamber is performing optimally. Contact us for more information.
Product Packaging:
Shipping:
What is the brand name of this product?
The brand name of this product is INFINITY.
2.What is the model number of this product?
The model number of this product is IE31A Series.
3.Where is this product made?
This product is made in China.
4.Does this product have any certifications?
Yes, this product has CE and ISO certifications.
5.What is the minimum order quantity for this product?
The minimum order quantity for this product is 1.
6.What is the price of this product?
The price of this product is negotiable.
7.What are the packaging details for this product?
The packaging details for this product are clear sheet+sponge+wood carton.
8.What is the delivery time for this product?
The delivery time for this product is 20-30 days after order confirmed.
9.What are the payment terms for this product?
The payment terms for this product are TT, PayPal, Moneygram and so on.
10.What is the supply ability for this product?
The supply ability for this product is 200 sets per month.
