France Tecumseh Fully Closed Compressor High and Low Temperature Impact Test Chamber Air-cooled

Product Description:

The IE31A Series Thermal Shock Test Chamber is equipped with a France Tecumseh Fully Closed Compressor that provides stable and efficient refrigeration, making it suitable for long-term use. The air-cooled condenser mode ensures that the Thermal Shock Test Chamber is easy to maintain and operate.

The Thermal insulation box of the IE31A Series Thermal Shock Test Chamber is made from high-quality carbon steel plate that has undergone electrostatic color spray plastic treatment, providing excellent durability and corrosion resistance. The inner wall material is made from SUS304 # Fog Surface Stainless Steel Plate, which is also highly durable and resistant to corrosion. The Thermal insulation material comprises a hard polyurethane foam thermal insulation layer and glass fiber, providing excellent thermal insulation properties and ensuring that temperature fluctuations are minimized during testing.

The IE31A Series Thermal Shock Test Chamber is designed with safety in mind. It comes equipped with a range of safety protection devices, including heater air defense incineration protection, heater over current protection, circulation fan over current overload protection, compressor high pressure protection, compressor overheating protection, compressor over current protection, over voltage under reverse phase protection, circuit breaker, and leakage protection. These features ensure that the Thermal Shock Test Chamber is safe to operate and protects both the user and the equipment.

The IE31A Series Thermal Shock Test Chamber is a versatile and reliable piece of equipment that can be used for a wide range of applications. It is suitable for testing electronic components, aerospace products, automotive components, and more. With its high-quality materials, efficient refrigeration, and advanced safety features, the IE31A Series Thermal Shock Test Chamber is an excellent investment for any laboratory or research facility.

Features:

• Product Name: Thermal Shock Test Chamber
• Cooling rate (cold storage area): Down From RT To-55℃ About 65mi N Is Required(or Specify)

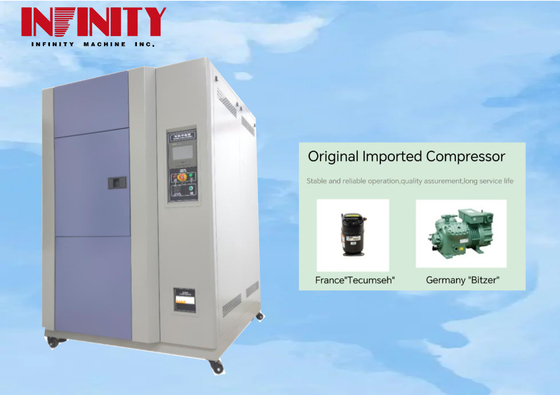

• Refrigeration compressor: France Tecumseh Fully Closed Compressor(or Specify)
• Source: AC380V;50Hz;18KW(or Specify)
• Temperature fluctuation: ±1℃
• Cooling medium: Non-fluorine Environmental Protection Refrigerant R404A R23 Comply With Environmental Protection Regulations, Safe And Non-toxic

Technical Parameters:

Applications:

The Thermal Shock Test Chamber has various applications, which include the GB/T2423.1-2001 Low Temperature Test Method, GB/T2423.2-2001, GB/T2423.22-1989 Temperature Change Test, Military Standard GJB150.3-86, Military Standard GJB150.4-86, Military Standard GJB150.5-86, GJB150.5-86 Temperature Impact Test, GJB360.7-87 Temperature Shock Test, GJB367.2-87 405 Temperature Shock Test, J / T10187-91Y73 Series Temperature Change Test Box- -three-box Type, and meet the standard IEC68-2-14_ Test Method N_ Temperature Change.

The Thermal Shock Test Chamber uses a France Tecumseh Fully Closed Compressor (or can be specified). It has a W300*H400mm observation window installed on the box door, ensuring that multi-layer insulating electric thermal coated glass can effectively provide heat preservation and prevent condensation. The product is energy-saving and reduces consumption by using a gas-liquid bypass mode to adjust the cooling capacity to achieve constant temperature and humidity. The operation is simple, and the programmed color LCD touch controller reference group PID control ensures that the experimental data recording and processing mode is flexible. The key parts of this product are imported ones, ensuring the service life and reliability of the product.

Customization:

Our IE31A Series boasts a temperature uniformity of ≦2.0℃, with an observation window of W300*H400mm installed on the box door. The multi-layer insulating electric thermal coated glass can effectively provide heat preservation and prevent condensation. Temperature fluctuation is kept at ±1℃, and temperature recovery time is within 5 minutes.

Support and Services:

- Installation and setup assistance
- Training on proper usage and maintenance
- Calibration and repair services
- Technical consultations for customized testing requirements
Our team of experienced engineers and technicians are readily available to assist with any questions or concerns you may have regarding your Thermal Shock Test Chamber. Contact us for more information on our services.

Packing and Shipping:

Product Packaging:

• The Thermal Shock Test Chamber will be securely packed in a wooden crate.
• The crate will be lined with foam to protect the chamber during transportation.
• All necessary accessories and manuals will be included in the package.

Shipping:

• The Thermal Shock Test Chamber will be shipped via a reputable carrier.
• Shipping costs will be calculated based on the destination and weight of the package.
• The estimated shipping time will be provided to the customer upon order confirmation.
• Tracking information will be provided once the package has been shipped.

FAQ:

Q: What is the brand name of this product?
A: The brand name of this product is INFINITY.
Q: What is the model number of this product?
A: The model number of this product is IE31A Series.
Q: Where is this product made?
A: This product is made in China.
Q: What certifications does this product have?
A: This product has CE and ISO certifications.
Q: What is the minimum order quantity for this product?
A: The minimum order quantity for this product is 1.
Q: How much does this product cost?
A: The price for this product is negotiable.
Q: What is the packaging for this product?
A: The packaging for this product consists of clear sheet, sponge, and a wooden carton.
Q: What is the delivery time for this product?
A: The delivery time for this product is 20-30 days after order confirmed.
Q: What are the payment terms for this product?
A: The payment terms for this product include TT, PayPal, Moneygram, and other options.
Q: What is the supply ability for this product?
A: The supply ability for this product is 200 sets per month.
