| Place of Origin: | MADE IN CHINA |
| Brand Name: | INFINITY |
| Certification: | CE ISO |
| Model Number: | IE31A Series |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Clear sheet+sponge+wood carton |
| Delivery Time: | 20-30 days after order confirmed |
| Payment Terms: | TT PAYPAL Moneygram and so on |
| Supply Ability: | 200 sets / month |
| Features: | Energy Saving And Consumption Reduction: Use Gas-liquid Bypass Mode To Adjust The Cooling Capacity To Achieve Constant Temperature And Humidity. Simple Operation: Programmed Color LCD Touch Controller Reference Group PID Control; Experimental Data Record | Temperature Uniformity: | ≦2.0℃ |
|---|---|---|---|
| Box Door: | Open The Door Alone, Add The Door Frame Heating Wire At The Door Frame To Prevent Condensation At The Door Frame At Low Temperature. | Temperature Range: | -55℃ ～ +150℃ |
| Source: | AC380V;50Hz;18KW(or Specify) | Cooling Medium: | Non-fluorine Environmental Protection Refrigerant R404A R23 Comply With Environmental Protection Regulations, Safe And Non-toxic |
| Carton Size: WxHxD(mm ): | 1480×1450 ×1950(or Specify) | Specimen Holder: | Stainless Steel Sample Frame 2 Layers, Adjustable Height, Bearing Weight Of 30kg / Layer. |

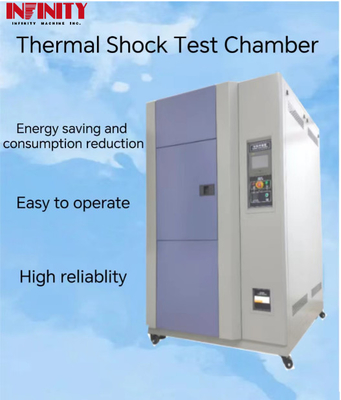

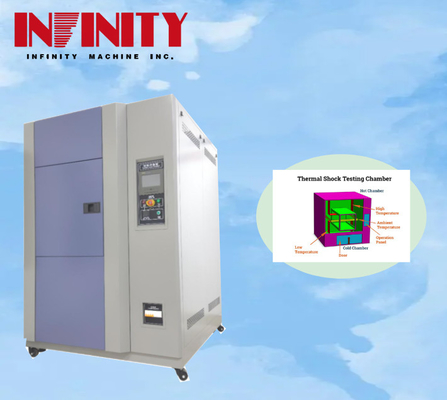

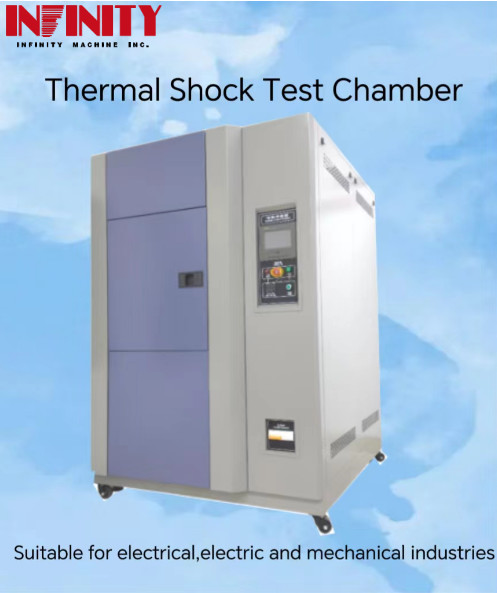

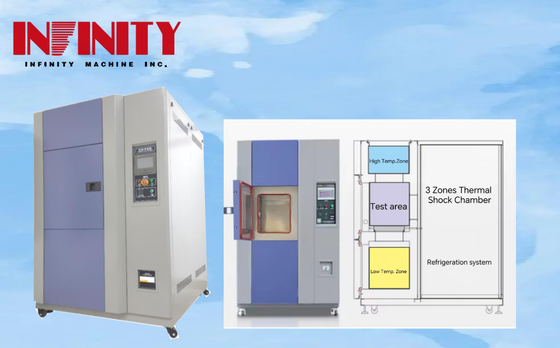

Precise Programmable Temperature Impact Test Chamber with ±1C Temperature Fluctuation
The specimen holder of the Thermal Shock Test Chamber features a Stainless Steel Sample Frame 2 Layers that is adjustable in height and can bear a weight of 30kg per layer. This design allows for the safe and secure placement of the specimen, ensuring that it remains stable and protected during testing.

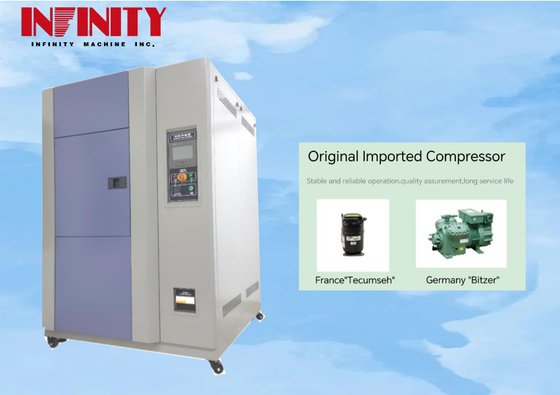

The Thermal Shock Test Chamber's source is AC380V;50Hz;18KW (or Specify) and features a refrigeration compressor from France Tecumseh Fully Closed Compressor (or Specify). This high-quality compressor ensures that the chamber is able to rapidly and accurately achieve the desired temperature changes required for testing.
The carton size for the Thermal Shock Test Chamber is 1480×1450 ×1950 (or Specify), making it easy to transport and install in any laboratory environment. The internal chamber size is WxHxD(mm): 500x 400x400 (or Specify), providing ample space to test a wide range of specimens.
The Thermal Shock Test Chamber is ideal for testing a wide range of products, including electronic components, plastics, ceramics, metals, and more. With its advanced technology and precise temperature control, it is an essential tool for any laboratory looking to assess the quality and reliability of their products under extreme temperature conditions.
| Cooling medium | Non-fluorine Environmental Protection Refrigerant R404A R23 Comply With Environmental Protection Regulations, Safe And Non-toxic |
| Thermal insulation box | ● Outer Wall Material: High Quality Carbon Steel Plate, The Surface For Electrostatic Color Spray Plastic Treatment. The Left Side Diameter Of The Chamber Is φ 50mm Hole. ● Inner Wall Material: SUS304 # Fog Surface Stainless Steel Plate. ● Thermal Insulation Material: Hard Polyurethane Foam Thermal Insulation Layer + Glass Fiber. |
| Specimen holder | Stainless Steel Sample Frame 2 Layers, Adjustable Height, Bearing Weight Of 30kg / Layer. |
| Temperature uniformity | ≦2.0℃ |
| Carton size | WxHxD(mm): 1480×1450×1950 (or Specify) |
| Safety protection device | Heater Air Defense Incineration Protection; Heater Over Current Protection; Circulation Fan Over Current Overload Protection; Compressor High Pressure Protection;. Compressor Overheating Protection; Compressor Over Current Protection; Over Voltage Under Reverse Phase Protection; Circuit Breaker; Leakage Protection. |
| Features | Energy Saving And Consumption Reduction: Use Gas-liquid Bypass Mode To Adjust The Cooling Capacity To Achieve Constant Temperature And Humidity. Simple Operation: Programmed Color LCD Touch Controller Reference Group PID Control; Experimental Data Recording And Processing Mode Is Flexible. High Reliability: The Key Parts Are Imported Parts To Ensure The Service Life And Reliability. |
| Equipment overview | For Users To The Whole Machine (or Parts), Electrical Appliances, Instruments, Materials, Coating, Coating For The Corresponding Climate Mutation Test, Suitable For Electrician, Electronics, Machinery Industry And Other Products, Parts, Materials, Such As High And Low Temperature, Humidity Test, Simulated Temperature And Humidity Changes Under The Condition Of Cold And Cold Impact Test, So As To Evaluate The Quality Of The Test Products. |
| Source | AC380V;50Hz;18KW (or Specify) |
| Temperature fluctuation | ±1℃ |
The Programmable Cold And Hot Shock Chamber is designed for a wide range of product application occasions and scenarios. It is ideal for testing the reliability and durability of electronic and mechanical products, as well as materials and components under extreme temperature conditions. It is particularly useful for testing products that are exposed to rapid temperature changes.
The internal chamber size of the Thermal Shock Test Chamber is 500x400x400mm or can be specified according to the needs of the customer. The refrigeration compressor is a fully closed compressor made by France Tecumseh or can be specified based on the customer's requirements. Energy saving and consumption reduction is achieved through the use of gas-liquid bypass mode to adjust the cooling capacity and achieve constant temperature and humidity. The product is easy to operate, with a programmed color LCD touch controller and reference group PID control. The experimental data recording and processing mode is flexible, and the product has high reliability due to the use of key imported parts to ensure a long service life.
The Programmable Temperature Impact Test Chamber can be used in a variety of settings, including research and development, product testing, quality assurance, and production line testing. It is suitable for testing a wide range of products, including electronic components, mechanical parts, automotive parts, aerospace components, and more. The product is designed to meet the needs of businesses and organizations that require reliable and accurate temperature testing equipment.
Brand Name: INFINITY
Model Number: IE31A Series
Place of Origin: MADE IN CHINA
Certification: CE ISO
Minimum Order Quantity: 1
Price: Negotiate
Packaging Details: Clear sheet+sponge+wood carton
Delivery Time: 20-30 days after order confirmed
Payment Terms: TT PAYPAL Moneygram and so on
Supply Ability: 200 sets / month
Source: AC380V;50Hz;18KW(or Specify)
Temperature range: -55℃ ～ +150℃
Product model: IE 31 A Series
Thermal insulation box:
Carton size: WxHxD(mm ): 1480×1450 ×1950(or Specify)
This product is also known as Programmable Temperature Impact Test Chamber.
The Thermal Shock Test Chamber is a high-performance testing equipment designed to test the resistance of products to sudden changes in temperature. It is equipped with advanced features such as a programmable controller, touch screen display, and automatic shut-off function for enhanced safety.
Our product technical support and services for the Thermal Shock Test Chamber include:
We are committed to ensuring that our customers receive the highest level of support and service for their Thermal Shock Test Chamber. Our team of experts is always available to assist with any technical issues or questions that may arise.
Product Packaging:
Shipping:
Q1: What is the brand name of the thermal shock test chamber?
A1: The brand name of the thermal shock test chamber is INFINITY .
Q2: What is the model number of the thermal shock test chamber?
A2: The model number of the thermal shock test chamber is IE31A Series .
Q3: Where is the thermal shock test chamber made?
A3: The thermal shock test chamber is made in China .
Q4: What certifications does the thermal shock test chamber have?
A4: The thermal shock test chamber has CE and ISO certifications.
Q5: What are the payment terms for purchasing the thermal shock test chamber?
A5: The payment terms for purchasing the thermal shock test chamber are TT, PayPal, Moneygram, and so on .
