| Place of Origin: | MADE IN CHINA |
| Brand Name: | INFINITY |
| Certification: | CE ISO |
| Model Number: | IE31 Series |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Clear sheet+sponge+wood carton |
| Delivery Time: | 20-30 days after order confirmed |
| Payment Terms: | TT PAYPAL Moneygram and so on |
| Supply Ability: | 200 sets / month |
| Cooling Rate (cold Storage Area): | Down From RT To-40℃ About 55min Is Required(or Specify) | Temperature Recovery Time: | Within 5 Mint |
|---|---|---|---|
| Heating Rate (heat Storage Area): | Up From RT To + 150℃ About 35min Is Required(or Specify) | Product Name: | Programmed Cold And Hot Impact Test Chamber |
| Chamber Door: | Open The Door Alone, Add The Door Frame Heating Wire At The Door Frame To Prevent Condensation At The Door Frame At Low Temperature. | Thermal Insulation Chamber: | ● Outer Wall Material: High Quality Carbon Steel Plate, The Surface For Electrostatic Color Spray Plastic Treatment. The Left Side Diameter Of The Box Is φ 50mm Hole ● Inner Wall Material: SUS304 # Fog Surface Stainless Steel Plate. ● Thermal Insulation Ma |
| Cooling Medium: | Non-fluorine Environmental Protection Refrigerant R404A R23 Comply With Environmental Protection Regulations, Safe And Non-toxic | Features:: | Energy Saving And Consumption Reduction: Use Gas-liquid Bypass Mode To Adjust The Cooling Capacity To Achieve Constant Temperature And Humidity. Simple Operation: Programmed Color LCD Touch Controller Reference Group PID Control; Experimental Data Recordin |
Flexible Experimental Data Recording Programmable Hot Cold Shock Test Chamber With High Reliability
Thermal Shock Test Chamber is an essential piece of equipment for quality control and product reliability testing. This Programmable Hot Cold Shock Test Chamber is designed to simulate extreme temperature changes, which can occur during the transportation and storage of products.
The chamber has a heating rate of up from RT to +150℃, requiring about 35 minutes for the heat storage area. It meets various standards, including GB/T2423.1-2001 Low Temperature Test Method, GB/T2423.2-2001, GB/T2423.22-1989 Temperature Change Test, Military Standard GJB150.3-86, Military Standard GJB150.4-86, Military Standard GJB150.5-86, GJB150.5-86 Temperature Impact Test, GJB360.7-87 Temperature Shock Test, GJB367.2-87 405 Temperature Shock Test, J/T10187-91Y73 Series Temperature Change Test Box-three Box Type, and IEC68-2-14_ Test Method N_ Temperature Change.

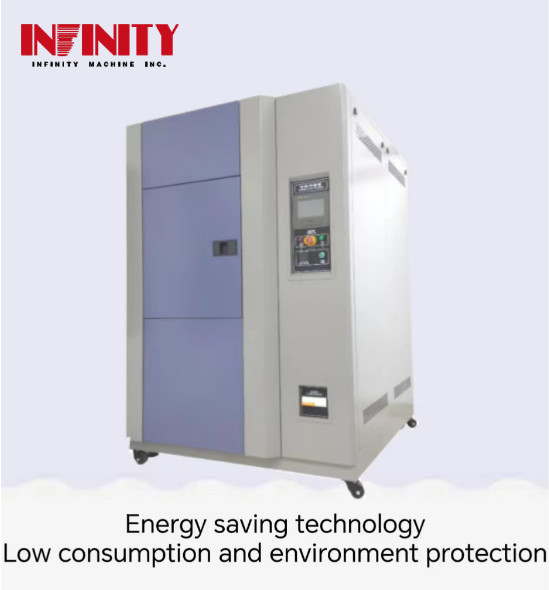

The Thermal Shock Test Chamber is energy-efficient, with gas-liquid bypass mode to adjust the cooling capacity and achieve constant temperature and humidity. It is easy to operate, with a programmed color LCD touch controller reference group PID control and flexible experimental data recording and processing mode. It also boasts high reliability, with key parts made of imported materials to ensure service life and reliability.
The chamber's temperature recovery time is within 5 minutes. It also comes equipped with various safety protection devices, including heater air defense incineration protection, heater over current protection, circulation fan over current overload protection, compressor high pressure protection, compressor overheating protection, compressor over current protection, overvoltage under reverse phase protection, circuit breaker, and leakage protection.
| Product name | Programmed Cold And Hot Impact Test Chamber |

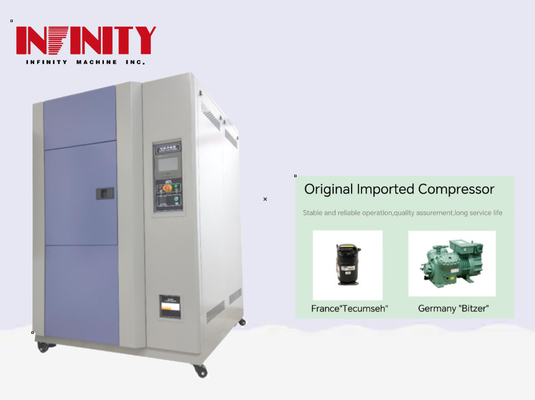

| Refrigeration compressor | France Tecumseh Fully Closed Compressor (or Specify) |
| Observation window | W300 *H400mm Observation Window Is Installed On The Box Door. Multi-layer Insulating Electric Thermal Coated Glass Can Effectively Provide Heat Preservation And Prevent Condensation. |
| Temperature fluctuation | ±1℃ |
| Temperature recovery time | Within 5 Mint |
| Source | Source AC380V;50Hz;18KW (or Specify) |
| Chamber door | Open The Door Alone, Add The Door Frame Heating Wire At The Door Frame To Prevent Condensation At The Door Frame At Low Temperature. |
| Standards | GB/T2423.1-2001 Low Temperature Test Method; GB/T2423.2-2001; GB/T2423.22-1989 Temperature Change Test; Military Standard GJB150.3-86; Military Standard GJB150.4-86; Military Standard GJB150.5-86; GJB150.5-86 Temperature Impact Test; GJB360.7-87 Temperature Shock Test; GJB367. 2-87 405 Temperature Shock Test; J / T10187-91Y73 Series Temperature Change Test Box-three Box Type; Meet The Standard IEC68-2-14_ Test Method N_ Temperature Change. |
| Temperature range | -40℃ ～ +150℃ |
| Heating rate (heat storage area) | Up From RT To + 150℃ About 35min Is Required (or Specify) |
The Thermal Shock Test Chamber is suitable for various product application occasions and scenarios. It can be used to test electronic components, plastic products, metals, rubber, and other materials. It is commonly used in aerospace, automotive, construction, and electronics industries. The Thermal Shock Test Chamber is an essential tool during the product development phase. It helps to identify the weaknesses in a product and improve its quality. The product is also used for quality control during the production process. It ensures that the product meets the required industry standards and specifications.
The INFINITY IE31 Series Thermal Shock Test Chamber has a source of AC380V;50Hz;18KW (or Specify). It has a carton size of WxHxD(mm): 1480×1450 ×1950 (or Specify). The product is delivered in clear sheet+sponge+wood carton packaging, and delivery time is 20-30 days after order confirmation.
The minimum order quantity for the Thermal Shock Test Chamber is 1, and the price is negotiable. The payment terms include TT, PAYPAL, Moneygram, and so on. The supply ability of the product is 200 sets per month.
Looking for a reliable Programmable Hot Cold Shock Test Chamber? Look no further than the IE31 Series from INFINITY, proudly MADE IN CHINA. Our Thermal Shock Test Chamber is CE and ISO certified, and has a minimum order quantity of 1. Pricing is negotiable and packaging includes clear sheet+sponge+wood carton. Delivery time is 20-30 days after order confirmation, and we accept various payment terms such as TT, PayPal, and Moneygram.
With a supply ability of 200 sets per month, our IE31 Series meets a variety of standards including GB/T2423.1-2001 Low Temperature Test Method, Military Standard GJB150.3-86, and J/T10187-91Y73 Series Temperature Change Test Box-three Box Type. The temperature uniformity is ≦2.0℃ and the temperature recovery time is within 5 minutes. The chamber door can be opened alone and includes a door frame heating wire to prevent condensation at low temperatures.
Our Thermal Shock Test Chamber uses non-fluorine environmental protection refrigerant R404A R23 that complies with environmental protection regulations and is safe and non-toxic. Contact us today to learn more about our Programmable Hot Cold Shock Test Chamber.
Product Packaging:
The Thermal Shock Test Chamber will be packaged in a sturdy wooden crate with padding and foam to ensure safe transportation. The crate will be clearly labeled with the product name, model number, and handling instructions.
Shipping:
The Thermal Shock Test Chamber will be shipped via a trusted carrier service with tracking information provided. Shipping costs will be calculated based on the destination and weight of the product. Estimated shipping time will be provided upon purchase confirmation.
Q: What is the brand name of the Thermal Shock Test Chamber?
A: The brand name of the Thermal Shock Test Chamber is INFINITY.
Q: What is the model number of the Thermal Shock Test Chamber?
A: The model number of the Thermal Shock Test Chamber is IE31 Series.
Q: Where is the Thermal Shock Test Chamber made?
A: The Thermal Shock Test Chamber is made in China.
Q: What certifications does the Thermal Shock Test Chamber have?
A: The Thermal Shock Test Chamber is CE and ISO certified.
Q: What is the minimum order quantity for the Thermal Shock Test Chamber?
A: The minimum order quantity for the Thermal Shock Test Chamber is 1.
Q: What is the price of the Thermal Shock Test Chamber?
A: The price of the Thermal Shock Test Chamber is negotiable.
Q: What are the packaging details for the Thermal Shock Test Chamber?
A: The packaging details for the Thermal Shock Test Chamber include clear sheet, sponge, and wood carton.
Q: What is the delivery time for the Thermal Shock Test Chamber?
A: The delivery time for the Thermal Shock Test Chamber is 20-30 days after order confirmed.
Q: What are the payment terms for the Thermal Shock Test Chamber?
A: The payment terms for the Thermal Shock Test Chamber include TT, PayPal, Moneygram, and so on.
Q: What is the supply ability for the Thermal Shock Test Chamber?
A: The supply ability for the Thermal Shock Test Chamber is 200 sets per month.
