| Place of Origin: | MADE IN CHINA |
| Brand Name: | INFINITY |
| Certification: | CE ISO |
| Model Number: | IE31 Series |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Clear sheet+sponge+wood carton |
| Delivery Time: | 20-30 days after order confirmed |
| Payment Terms: | TT PAYPAL Moneygram and so on |
| Supply Ability: | 200 sets / month |
| Specimen Holder: | Stainless Steel Sample Frame 2 Layers, Adjustable Height, Bearing Weight Of 30kg / Layer. | Features:: | Energy Saving And Consumption Reduction: Use Gas-liquid Bypass Mode To Adjust The Cooling Capacity To Achieve Constant Temperature And Humidity. Simple Operation: Programmed Color LCD Touch Controller Reference Group PID Control; Experimental Data Recordin |
|---|---|---|---|
| Cooling Rate (cold Storage Area): | Down From RT To-40℃ About 55min Is Required(or Specify) | Safety Protection Device: | Heater Air Defense Incineration Protection; Heater Over Current Protection; Circulation Fan Over Current Overload Protection; Compressor High Pressure Protection;. Compressor Overheating Protection; Compressor Over Current Protection; Over Voltage Under Re |
| Refrigeration Compressor: | France Tecumseh Fully Closed Compressor(or Specify) | Source: | Source AC380V;50Hz;18KW(or Specify) |
| Equipment Overview:: | For Users To The Whole Machine (or Parts), Electrical Appliances, Instruments, Materials, Coating, Coating For The Corresponding Climate Mutation Test, Suitable For Electrical, Electronics, Machinery Industry And Other Products, Parts, Materials, Such As H | Observation Window: | W300 *H400mm Observation Window Is Installed On The Box Door. Multi-layer Insulating Electric Thermal Coated Glass Can Effectively Provide Heat Preservation And Prevent Condensation. |
This product has a wide temperature range of -40℃ to +150℃, making it ideal for testing products with a wide range of operating temperatures. Additionally, it has an internal box size of WxHxD(mm): 500x400x400 (or specify), providing ample space for testing a variety of products.
The Thermal Shock Test Chamber comes equipped with an array of safety features that ensure the test is conducted safely and without incident. The safety protection devices include Heater Air Defense Incineration Protection, Heater Over Current Protection, Circulation Fan Over Current Overload Protection, Compressor High Pressure Protection, Compressor Overheating Protection, Compressor Over Current Protection, Over Voltage Under Reverse Phase Protection, Circuit Breaker, and Leakage Protection.
One of the most important features of the Thermal Shock Test Chamber is its temperature uniformity. With a temperature uniformity of ≦2.0℃, this product ensures that the temperature is consistent throughout the testing process. This feature is critical for ensuring accurate and reliable test results.
The Thermal Shock Test Chamber uses non-fluorine environmental protection refrigerant R404A R23, which complies with environmental protection regulations and is safe and non-toxic. This cooling medium ensures that the testing process is conducted in an environmentally friendly and safe manner.
In conclusion, the Thermal Shock Test Chamber is an essential testing equipment for any industry that requires products to be tested under extreme temperature conditions. With its wide range of temperature, ample internal box size, and safety features, this product is an ideal choice for conducting accurate and reliable tests.
| Product name: | Programmable Cold And Hot Impact Test Chamber |
| Thermal insulation chamber: | ● Outer Wall Material: High Quality Carbon Steel Plate, The Surface For Electrostatic Color Spray Plastic Treatment. The Left Side Diameter Of The Box Is φ 50mm Hole ● Inner Wall Material: SUS304 # Fog Surface Stainless Steel Plate. ● Thermal Insulation Material: Hard Polyurethane Foam Thermal Insulation Layer + Glass Fiber. |
| Temperature range: | -40℃ ～ +150℃ |
| Cooling rate (cold storage area): | Down From RT To-40℃ About 55min Is Required(or Specify) |
| Heating rate (heat storage area): | Up From RT To + 150℃ About 35min Is Required(or Specify) |
| Temperature uniformity: | ≦2.0℃ |
| Temperature recovery time: | Within 5 Mint |
| Temperature fluctuation: | ±1℃ |
| Standards: | GB/T2423.1-2001 Low Temperature Test Method; GB/T2423.2-2001; GB/T2423.22-1989 Temperature Change Test; Military Standard GJB150.3-86; Military Standard GJB150.4-86; Military Standard GJB150.5-86; GJB150.5-86 Temperature Impact Test; GJB360.7-87 Temperature Shock Test; GJB367. 2-87 405 Temperature Shock Test; J / T10187-91Y73 Series Temperature Change Test Box-three Box Type; Meet The Standard IEC68-2-14_ Test Method N_ Temperature Change. |
| Equipment overview: | For Users To The Whole Machine (or Parts), Electrical Appliances, Instruments, Materials, Coating, Coating For The Corresponding Climate Mutation Test, Suitable For Electrical, Electronics, Machinery Industry And Other Products, Parts, Materials, Such As High And Low Temperature, Humidity Test, Simulate The Temperature And Humidity Changes Under The Condition Of Cold And Cold Impact Test, So As To Evaluate The Quality Of The Test Products. |
Manufactured in China, the Thermal Shock Test Chamber is CE and ISO certified and has a minimum order quantity of 1. The price of the product is negotiable and comes with clear sheet+sponge+wood carton packaging. Delivery time is estimated to be between 20-30 days after order confirmation, and payment terms include TT PAYPAL Moneygram and so on. The product has a supply ability of 200 sets per month.
The Thermal Shock Test Chamber comes with a Stainless Steel Sample Frame 2 Layers, Adjustable Height, Bearing Weight Of 30kg / Layer and it has a heating rate (heat storage area) of up from RT to + 150℃, about 35min is required (or specify). The thermal insulation chamber is designed with hard polyurethane foam thermal insulation layer and glass fiber, with the inner wall made of SUS304 # fog surface stainless steel plate, and the outer wall made of high-quality carbon steel plate with electrostatic color spray plastic treatment. The left side diameter of the box is φ 50mm hole. The condenser mode is air-cooled (or specify).
The Thermal Shock Test Chamber is suitable for product application occasions and scenarios such as automotive, electronics, aerospace, military, and other industries that require testing and evaluation of products under extreme temperature conditions. The product can be used for testing the durability, reliability, and performance of products under rapid and extreme temperature changes. The Thermal Shock Test Chamber is ideal for testing the effects of thermal shock on products, as well as for simulating real-world environmental conditions.
Overall, the INFINITY IE31 Series Thermal Shock Test Chamber is a reliable and efficient product that can be used in a variety of product application occasions and scenarios. With its programmable rapid temperature change test chamber, it provides a stable and controlled temperature environment for testing and evaluating the performance of various products under different temperature conditions. The product is a must-have for any industry that requires testing and evaluation of products under extreme temperature conditions.

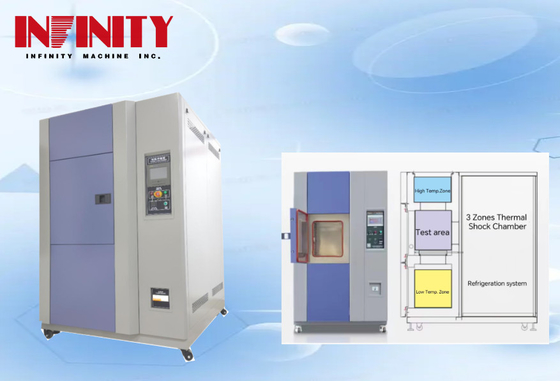

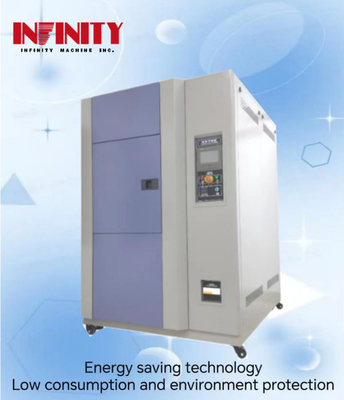

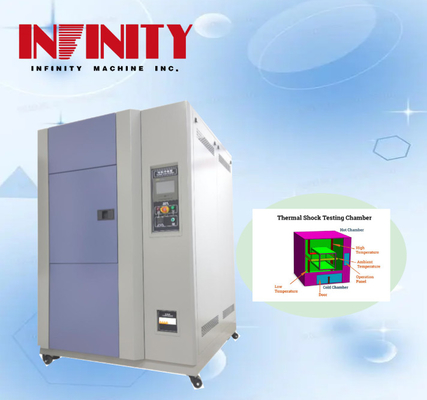

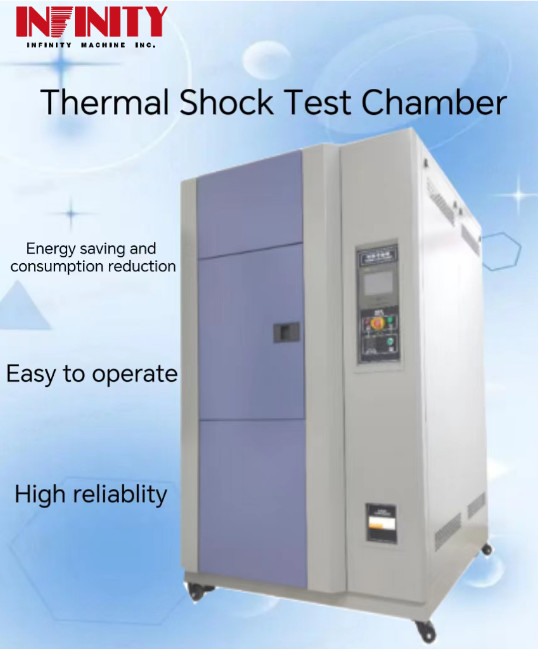

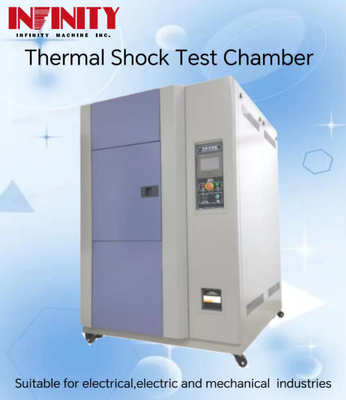

Introducing the INFINITY IE31 Series Programmable Rapid Temperature Change Test Chamber, also known as a Thermal Shock Test Chamber . Made in China with CE and ISO certification, this product boasts a refrigeration compressor from France Tecumseh, providing a fully closed compressor for optimal performance (or specify your preferred compressor).
The observation window measures W300 * H400mm and is installed on the box door. Multi-layer insulating electric thermal coated glass provides heat preservation and prevents condensation.
The source for this Thermal Shock Test Chamber is AC380V; 50Hz; 18KW (or specify your preferred source). The cooling rate for the cold storage area is down from RT to -40℃ in about 55 minutes (or specify your preferred cooling rate).
We offer customization services to meet your specific needs. The minimum order quantity is 1 and pricing is negotiable. Packaging details include a clear sheet, sponge, and wood carton. Delivery time is estimated at 20-30 days after order confirmation. Payment terms accepted include TT, PayPal, Moneygram, and more. Our supply ability is up to 200 sets per month.
In addition to our high-quality chambers, we also provide technical support and services to ensure that your testing process runs smoothly. Our team of expert technicians can assist with installation, calibration, and maintenance of your chamber. We also offer training sessions to help you get the most out of your equipment.
With our Thermal Shock Test Chambers and comprehensive support services, you can have confidence in the performance of your products in extreme temperature conditions.
Product Packaging:
Shipping:
Frequently Asked Questions about INFINITY IE31 Series Thermal Shock Test Chamber:
Q: What is the place of origin of the INFINITY IE31 Series Thermal Shock Test Chamber?
A: The INFINITY IE31 Series Thermal Shock Test Chamber is made in China.
Q: What is the certification of the INFINITY IE31 Series Thermal Shock Test Chamber?
A: The INFINITY IE31 Series Thermal Shock Test Chamber is CE and ISO certified.
Q: What is the minimum order quantity for the INFINITY IE31 Series Thermal Shock Test Chamber?
A: The minimum order quantity for the INFINITY IE31 Series Thermal Shock Test Chamber is one (1).
Q: What is the packaging of the INFINITY IE31 Series Thermal Shock Test Chamber?
A: The INFINITY IE31 Series Thermal Shock Test Chamber is packaged with clear sheet, sponge, and wood carton.
Q: What is the supply ability of the INFINITY IE31 Series Thermal Shock Test Chamber?
A: The supply ability of the INFINITY IE31 Series Thermal Shock Test Chamber is 200 sets per month.
